(4) Plastic Fixed Foot Leveling Pads SS

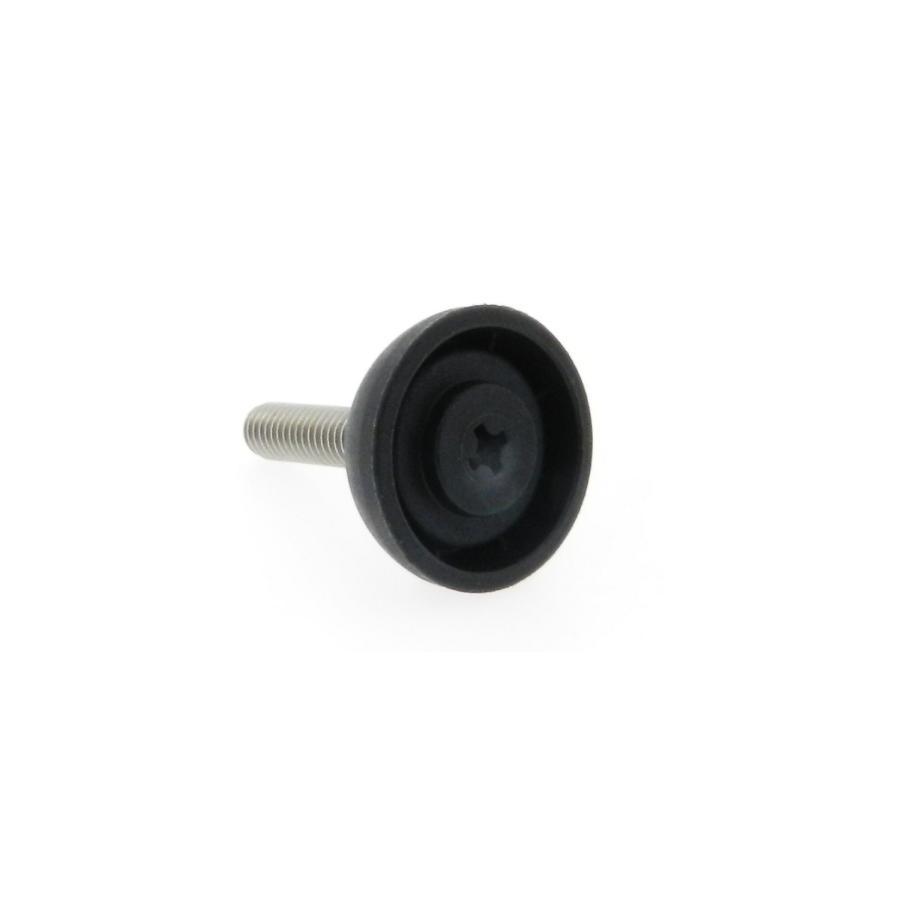

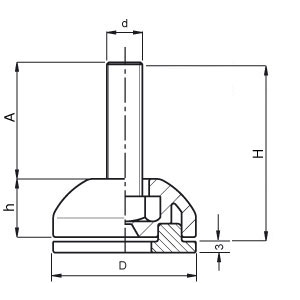

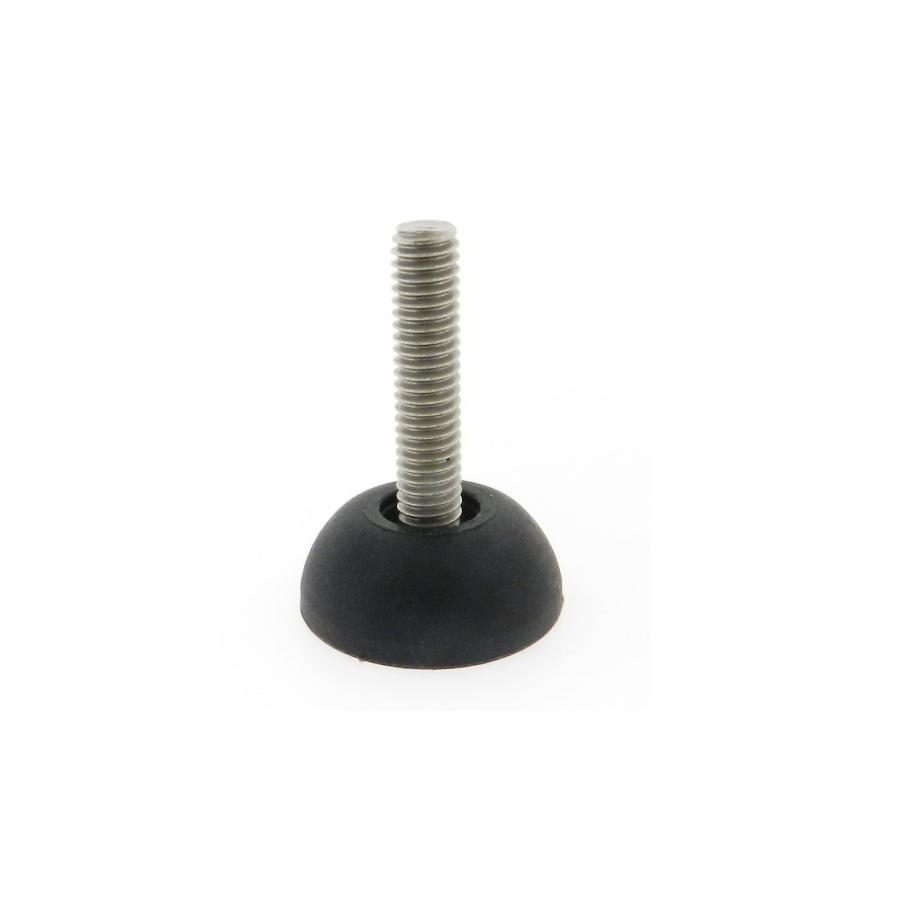

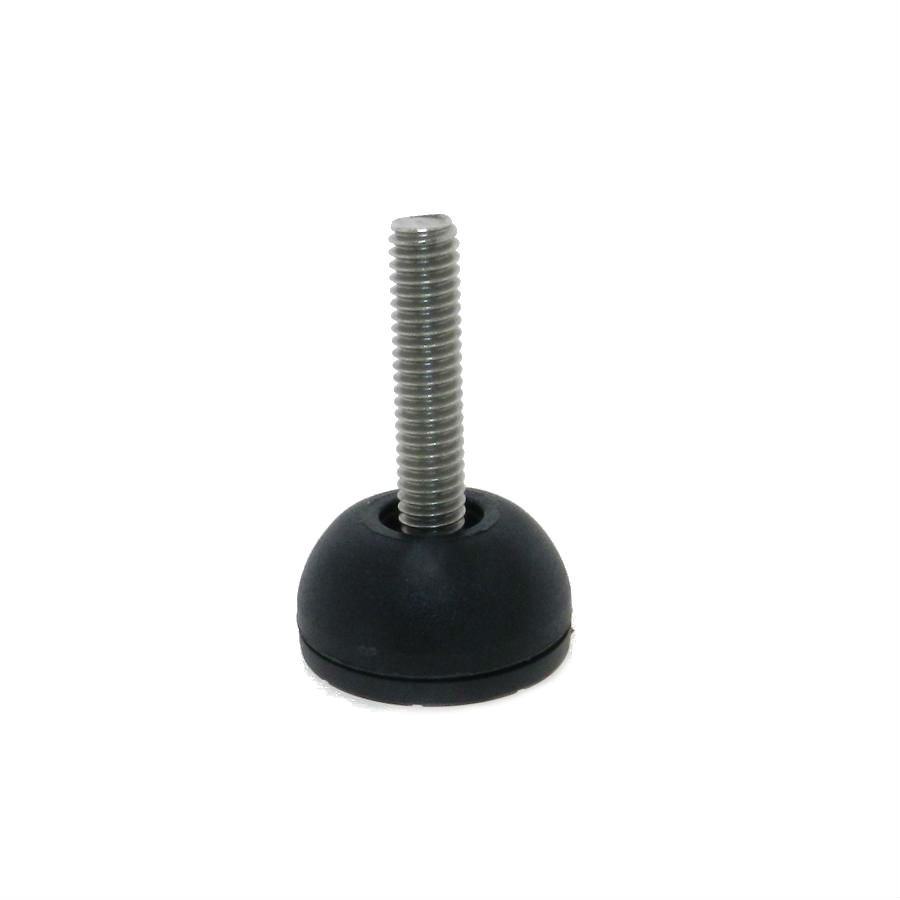

JBF National’s fixed foot leveling pad is manufactured using the highest grade thermoplastic, and comes with a non-swiviling stainless steel stud. For additional protection against machine creep, part numbers ending in "NSP" feature a non-skid pad. Inch and metric versions available. Please see component diagram below.
| JBF National Part Number / Inch | A length | D dia | d thread | H height | h | Load Rating |
|---|---|---|---|---|---|---|
| 1FPF-1343SS | 1.34 | 1.26 | 5/16-18 | 1.85 | 0.51 | 1760 |
| 2FPF-1344SS | 1.42 | 1.57 | 3/8-16 | 1.93 | 0.51 | 1760 |
| 1FPF-1343SS-NSP | 1.34 | 1.26 | 5/16-18 | 1.85 | 0.51 | 1760 |
| 2FPF-1344SS-NSP | 1.42 | 1.57 | 3/8-16 | 1.93 | 0.51 | 1760 |
| JBF National Part Number / Metric | A length | D dia | d thread | H height | h | Load Rating |
|---|---|---|---|---|---|---|
| 1FPF-1349SS | 26 | 32 | M8 | 39 | 13 | 800kgs |
| 1FPF-1350SS | 23 | 32 | M10 | 36 | 13 | 800kgs |
| 2FPF-1351SS | 36 | 40 | M8 | 49 | 13 | 800kgs |
| 2FPF-1352SS | 33 | 40 | M10 | 46 | 13 | 800kgs |
| 1FPF-1349SS-NSP | 26 | 32 | M8 | 39 | 13 | 800kgs |
| 1FPF-1350SS-NSP | 23 | 32 | M10 | 36 | 13 | 800kgs |
| 2FPF-1351SS-NSP | 36 | 40 | M8 | 49 | 13 | 800kgs |
| 2FPF-1352SS-NSP | 33 | 40 | M10 | 46 | 13 | 800kgs |
