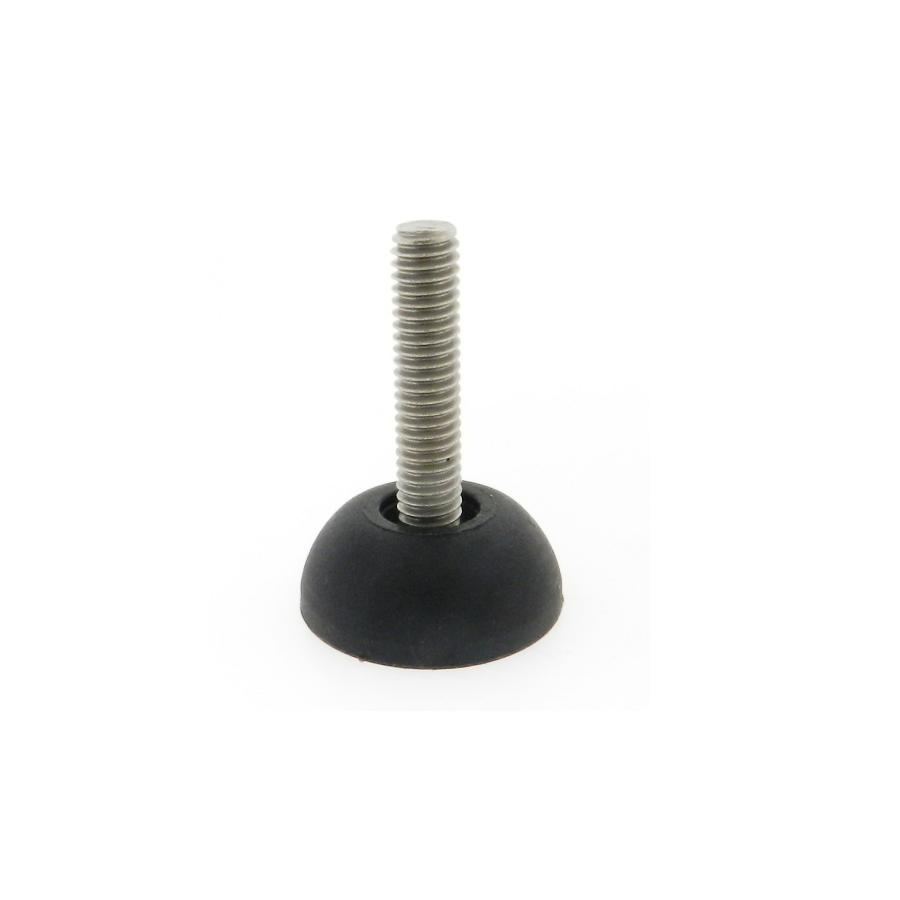

(4) Plastic Fixed Foot Leveling Pads

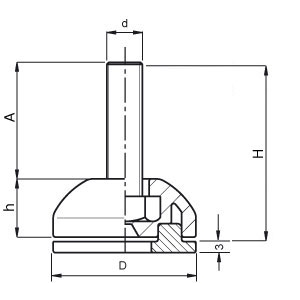

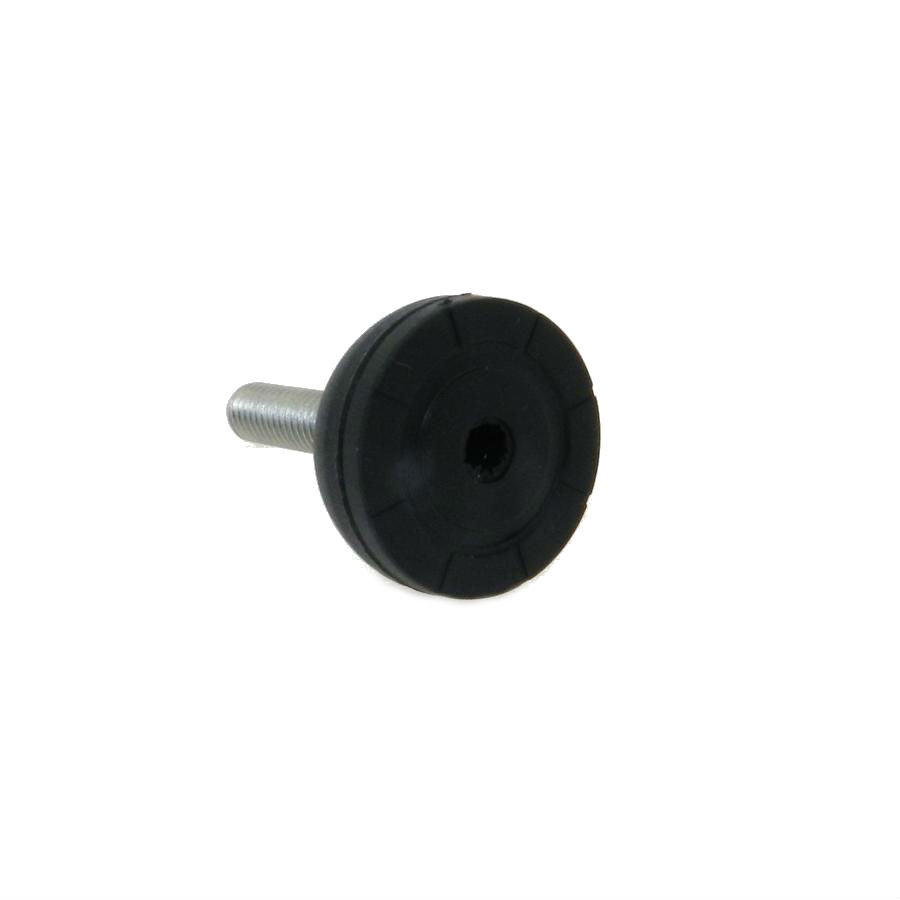

JBF National’s fixed foot leveling pad is manufactured using the highest grade thermoplastic, and comes with a non-swiveling zinc plated stud. For additional protection against machine creep, part numbers ending in "NSP" feature a non-skid pad. Inch and metric versions available. Please see component diagram below.


JBF National Part Number / InchA lengthD diad threadH heighthLoad Rating
1FPF-13391.51.265/16-182.010.511760
1FPF-13401.751.263/8-162.260.511760
2FPF-13411.51.575/16-182.010.511760
2FPF-13421.751.573/8-182.260.511760
1FPF-1339-NSP1.51.265/16-182.010.511760
1FPF-1340-NSP1.751.263/8-162.260.511760
2FPF-1341-NSP1.51.575/16-182.010.511760
2FPF-1342-NSP1.751.573/8-182.260.511760
JBF National Part Number / Metric A lengthD diad threadH heighthLoad Rating
1FPF-13452632M83913800kgs
1FPF-13462332M103613800kgs
2FPF-13473640M84913800kgs
2FPF-13483340M104613800kgs
1FPF-1345-NSP2632M83913800kgs
1FPF-1346-NSP2332M103613800kgs
2FPF-1347-NSP3640M84913800kgs
2FPF-1348-NSP3340M104613800kgs
