(2) Poly Pad Levelers Tapped

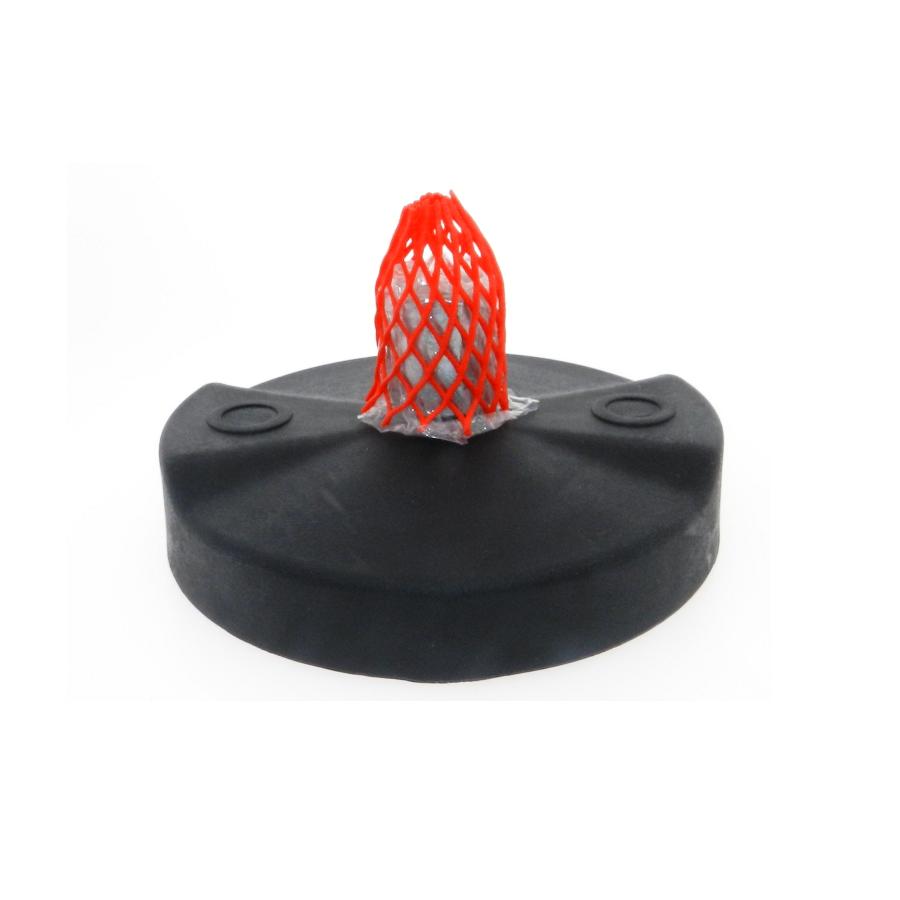

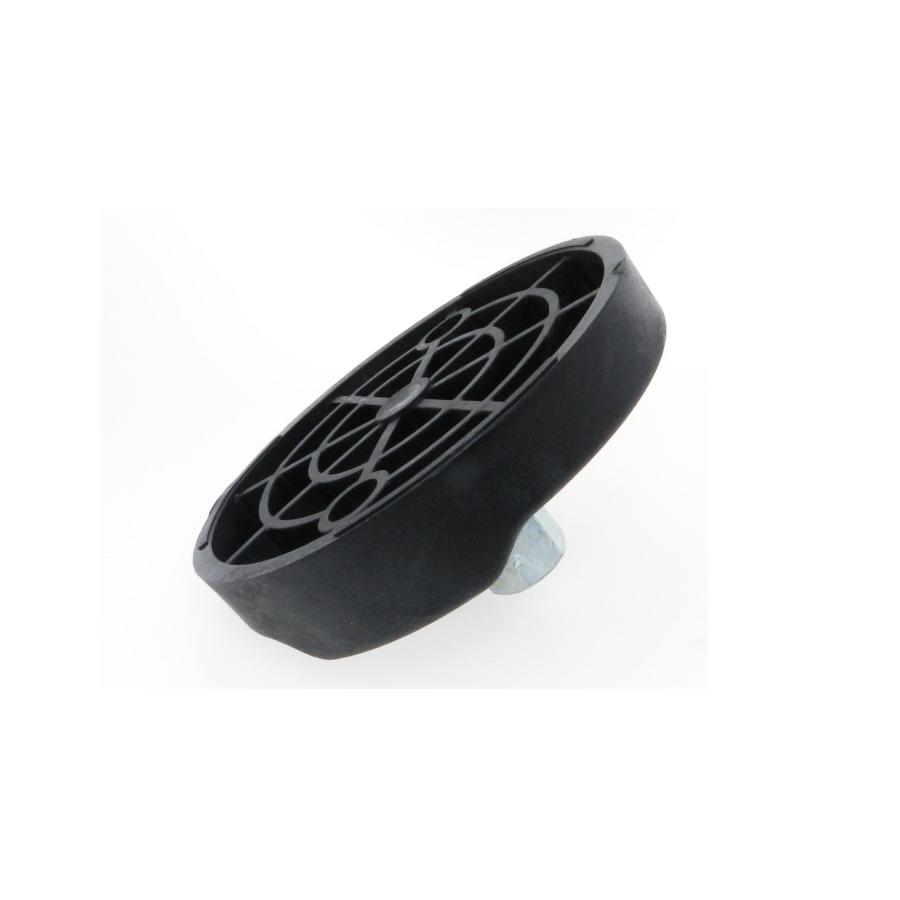

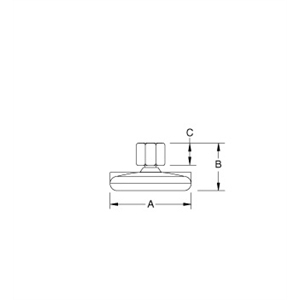

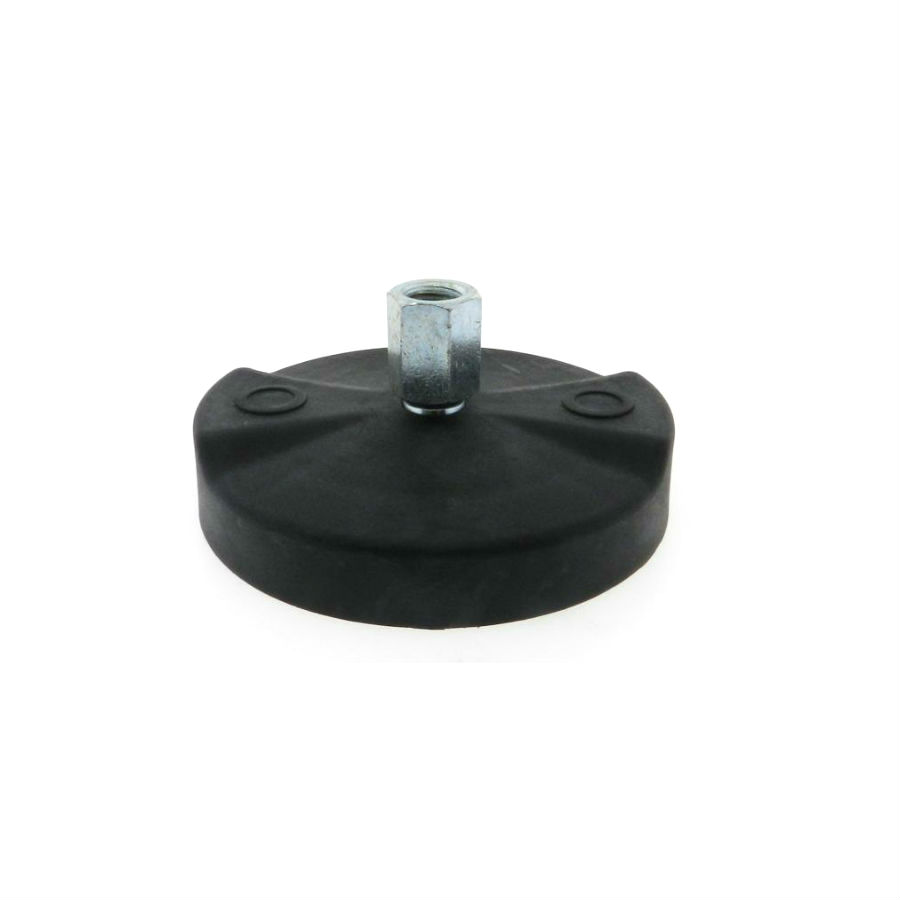

JBF National poly pad leveling pads are manufactured using high quality glass fiber reinforced Nylon to ensure durability. The stud and ball assembly are manufactured using the highest quality zinc plated steel. The removable bolt hole caps these levelers feature makes securing machinery to the floor no problem at all, regardless of surface and placement area conditions. Non-skid pad models available. Please see component diagram below.
| JBF National P/N | JBF National P/N Non-Skid | A | B | C | tap | lag hole | hex | max load rating (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1LPP-1224 | 1LPP-1224-NSP | 1.97 | 1.66 | 0.944 | 3/8-16 | 0.257 | 5/8" | 4000 |
| 1LPP-1225 | 1LPP-1225-NSP | 1.97 | 1.66 | 0.944 | 1/2-13 | 0.257 | 3/4" | 4000 |
| 1LPP-1226 | 1LPP-1226-NSP | 1.97 | 1.66 | 0.944 | 5/8-11 | 0.257 | 7/8" | 4000 |
| 2LPP-1227 | 1LPP-1227-NSP | 3.15 | 1.66 | 0.944 | 3/8-16 | 0.354 | 5/8" | 5000 |
| 2LPP-1228 | 1LPP-1228-NSP | 3.15 | 1.66 | 0.944 | 1/2-13 | 0.354 | 3/4" | 5000 |
| 2LPP-1229 | 1LPP-1229-NSP | 3.15 | 1.66 | 0.944 | 5/8-11 | 0.354 | 7/8" | 5000 |
| 3LPP-1230 | 1LPP-1230-NSP | 4.33 | 1.91 | 0.944 | 3/8-16 | 0.413 | 5/8" | 4000 |
| 3LPP-1231 | 1LPP-1231-NSP | 4.33 | 1.91 | 0.944 | 1/2-13 | 0.413 | 3/4" | 5000 |
| 3LPP-1232 | 1LPP-1232-NSP | 4.33 | 1.91 | 0.944 | 5/8-11 | 0.413 | 7/8" | 6000 |
