(2) Poly Pad Levelers Studded

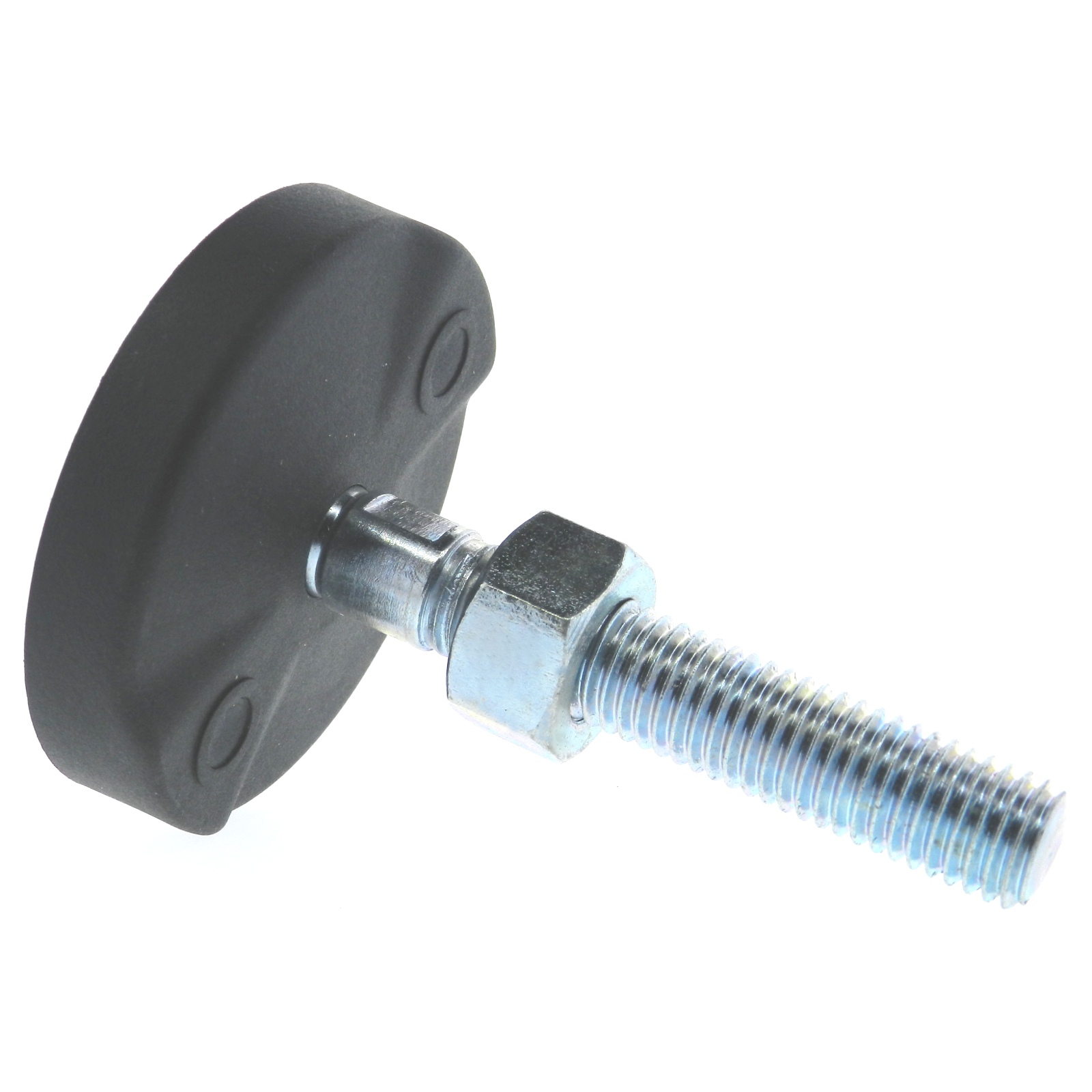

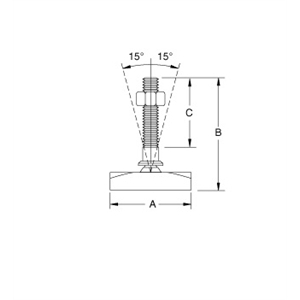

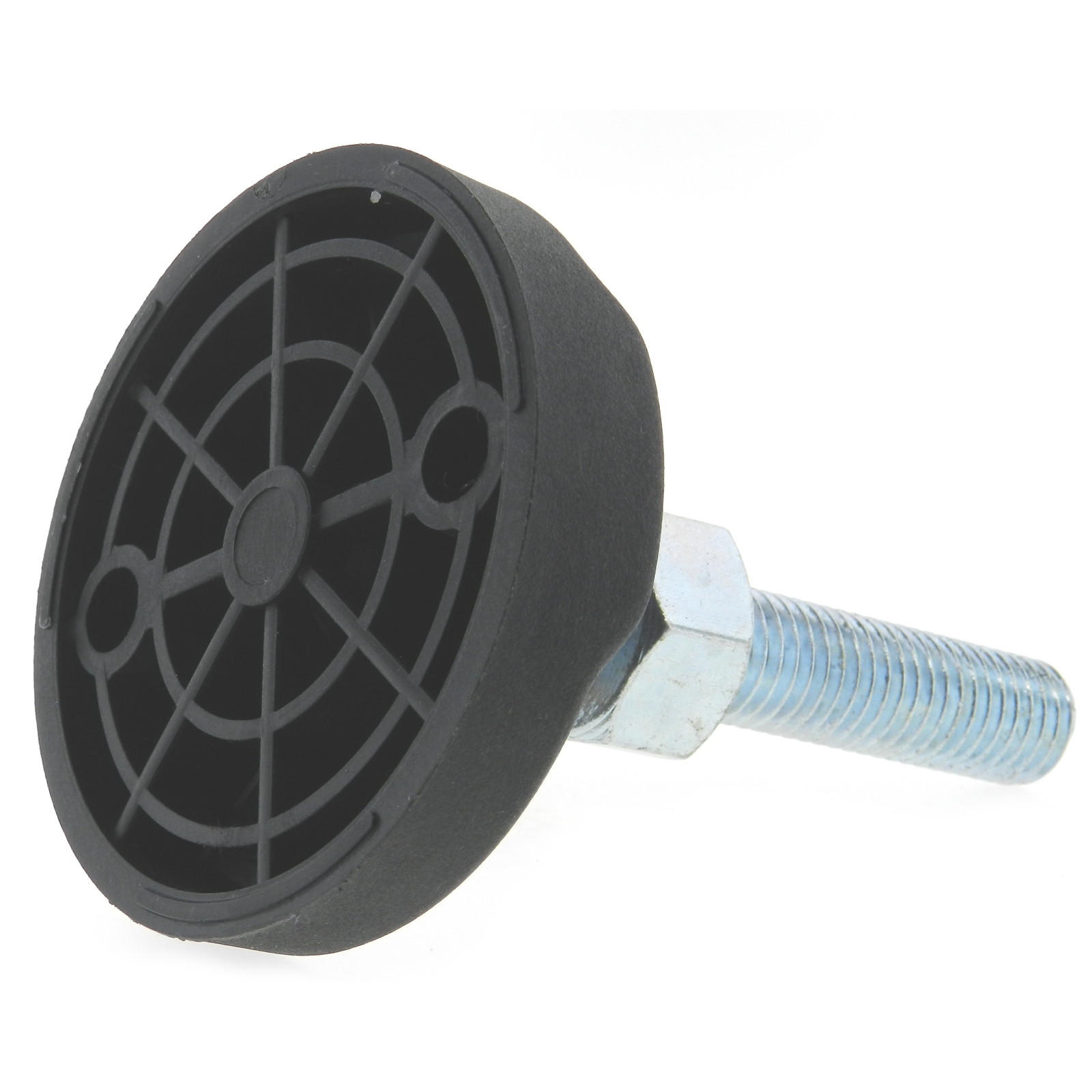

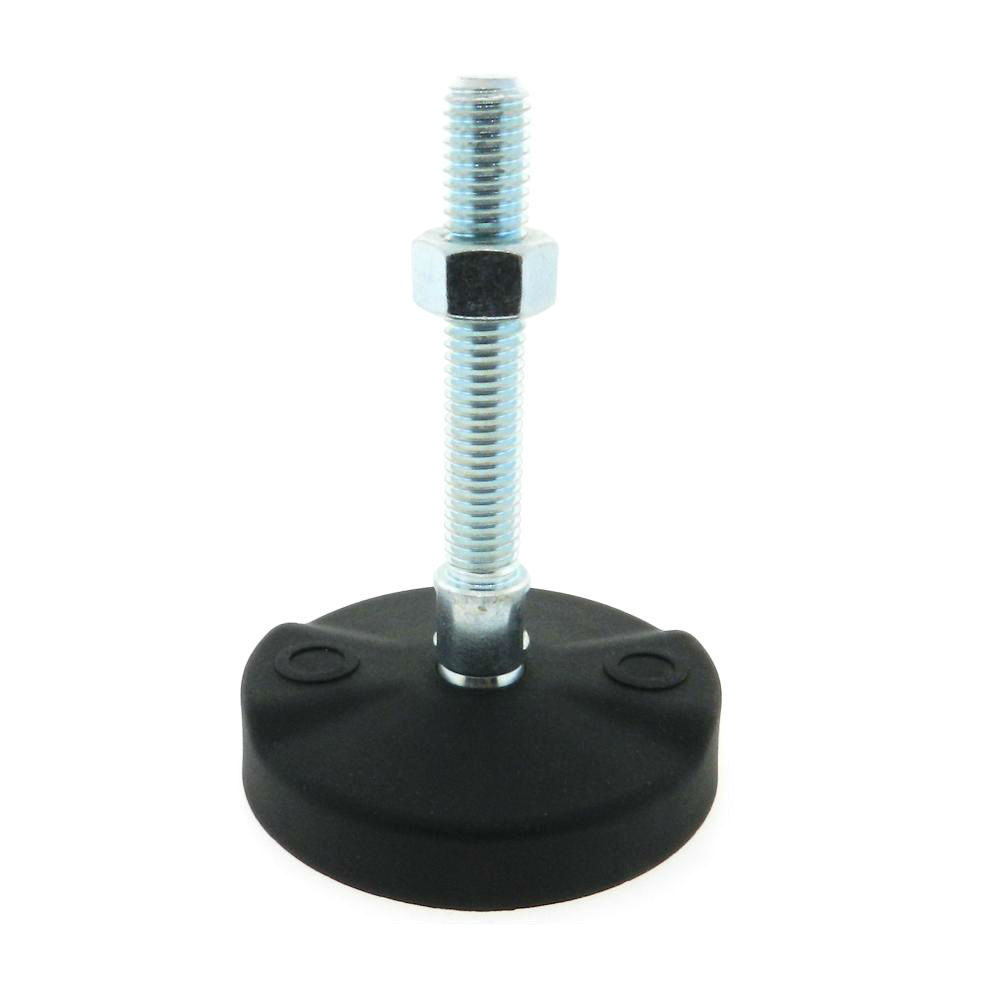

JBF National poly pad leveling pads are manufactured using high quality glass fiber reinforced nylon to ensure durability. The stud and ball assembly are manufactured using the highest quality zinc plated 1215CDS steel. The removable bolt hole caps these levelers feature make securing machinery to the floor no problem at all, regardless of surface and placement area conditions. Inch and metric versions, and various stud lengths available. Non-skid pad models available. Please see component diagram below.
| JBF National P/N Inch | JBF National P/N Inch Non-Skid | A | B | C | lag hole | wrench flat | max load rating (lbs) |
|---|---|---|---|---|---|---|---|
| 1LPP-1195 | 1LPP-1195-NSP | 1.97 | 4.38 | 3/8-16 x 3" | 0.257 | 0.55 | 4000 |
| 1LPP-1196 | 1LPP-1196-NSP | 1.97 | 7.38 | 3/8-16 x 6" | 0.257 | 0.55 | 4000 |
| 1LPP-1197 | 1LPP-1197-NSP | 1.97 | 4.73 | 1/2-13 x 3" | 0.257 | 0.55 | 4000 |
| 1LPP-1198 | 1LPP-1198-NSP | 1.97 | 6.73 | 1/2-13 x 5" | 0.257 | 0.55 | 4000 |
| 1LPP-1199 | 1LPP-1199-NSP | 1.97 | 4.73 | 5/8-11 x 3" | 0.257 | 0.55 | 4000 |
| 1LPP-1200 | 1LPP-1200-NSP | 1.97 | 5.73 | 5/8-11 x 4" | 0.257 | 0.55 | 4000 |
| 1LPP-1201 | 1LPP-1201-NSP | 1.97 | 6.73 | 5/8-11 x 5" | 0.257 | 0.55 | 4000 |
| 1LPP-1202 | 1LPP-1202-NSP | 1.97 | 7.73 | 3/4-10 x 6" | 0.257 | 0.55 | 4000 |
| 1LPP-1203 | 1LPP-1203-NSP | 1.97 | 11.73 | 3/4-10 x 10" | 0.257 | 0.55 | 4000 |
| 2LPP-1204 | 2LPP-1204-NSP | 3.15 | 4.73 | 3/8-16 x 3" | 0.354 | 0.55 | 5000 |
| 2LPP-1205 | 2LPP-1205-NSP | 3.15 | 6.73 | 3/8-16 x 5" | 0.354 | 0.55 | 5000 |
| 2LPP-1206 | 2LPP-1206-NSP | 3.15 | 4.73 | 1/2-13 x 3" | 0.354 | 0.55 | 5000 |
| 2LPP-1207 | 2LPP-1207-NSP | 3.15 | 6.73 | 1/2-13 x 5" | 0.354 | 0.55 | 5000 |
| 2LPP-1208 | 2LPP-1208-NSP | 3.15 | 4.73 | 5/8-11 x 3" | 0.354 | 0.55 | 5000 |
| 2LPP-1209 | 2LPP-1209-NSP | 3.15 | 5.73 | 5/8-11 x 4" | 0.354 | 0.55 | 5000 |
| 2LPP-1210 | 2LPP-1210-NSP | 3.15 | 6.73 | 5/8-11 x 5" | 0.354 | 0.55 | 5000 |
| 2LPP-1211 | 2LPP-1211-NSP | 3.15 | 7.73 | 3/4-10 x 6" | 0.354 | 0.55 | 5800 |
| 2LPP-1212 | 2LPP-1212-NSP | 3.15 | 11.73 | 3/4-10 x 10" | 0.354 | 0.55 | 5800 |
| 3LPP-1213 | 3LPP-1213-NSP | 4.33 | 4.92 | 3/8-16 x 3" | 0.413 | 0.55 | 7000 |
| 3LPP-1214 | 3LPP-1214-NSP | 4.33 | 6.92 | 3/8-16 x 5" | 0.413 | 0.55 | 7000 |
| 3LPP-1215 | 3LPP-1215-NSP | 4.33 | 4.92 | 1/2-13 x 3" | 0.413 | 0.55 | 7000 |
| 3LPP-1216 | 3LPP-1216-NSP | 4.33 | 6.92 | 1/2-13 x 5" | 0.413 | 0.55 | 7000 |
| 3LPP-1217 | 3LPP-1217-NSP | 4.33 | 7.92 | 1/2-13 x 6" | 0.413 | 0.55 | 7000 |
| 3LPP-1218 | 3LPP-1218-NSP | 4.33 | 4.92 | 5/8-11 x 3" | 0.413 | 0.55 | 7000 |
| 3LPP-1219 | 3LPP-1219-NSP | 4.33 | 5.92 | 5/8-11 x 4" | 0.413 | 0.55 | 7000 |
| 3LPP-1220 | 3LPP-1220-NSP | 4.33 | 6.92 | 5/8-11 x 5" | 0.413 | 0.55 | 7000 |
| 3LPP-1221 | 3LPP-1221-NSP | 4.33 | 6.92 | 3/4-10 x 5" | 0.413 | 0.55 | 7500 |
| 3LPP-1222 | 3LPP-1222-NSP | 4.33 | 7.92 | 3/4-10 x 6" | 0.413 | 0.55 | 7500 |
| 3LPP-1223 | 3LPP-1223-NSP | 4.33 | 11.92 | 3/4-10 x 10" | 0.413 | 0.55 | 7500 |
| JBF National P/N Metric | JBF National P/N Metric Non-Skid | A | B | C | lag hole | wrench flat | max load rating (kgs) |
|---|---|---|---|---|---|---|---|
| 1LPP-1260 | 1LPP-1260-NSP | 50 | 110 | M10 x 75 | 6.5 | 13 | 1800 |
| 1LPP-1261 | 1LPP-1261-NSP | 50 | 135 | M10 x 100 | 6.5 | 13 | 1800 |
| 1LPP-1262 | 1LPP-1262-NSP | 50 | 160 | M10 x 125 | 6.5 | 13 | 1800 |
| 1LPP-1263 | 1LPP-1263-NSP | 50 | 110 | M12 x 75 | 6.5 | 13 | 1800 |
| 1LPP-1264 | 1LPP-1264-NSP | 50 | 135 | M12 x 100 | 6.5 | 13 | 1800 |
| 1LPP-1265 | 1LPP-1265-NSP | 50 | 110 | M16 x 75 | 6.5 | 13 | 1800 |
| 1LPP-1266 | 1LPP-1266-NSP | 50 | 135 | M16 x 100 | 6.5 | 13 | 1800 |
| 1LPP-1267 | 1LPP-1267-NSP | 50 | 160 | M16 x 125 | 6.5 | 13 | 1800 |
| 1LPP-1268 | 1LPP-1268-NSP | 50 | 185 | M16 x 150 | 6.5 | 13 | 1800 |
| 2LPP-1269 | 2LPP-1269-NSP | 80 | 120 | M10 x 75 | 9 | 13 | 2270 |
| 2LPP-1270 | 2LPP-1270-NSP | 80 | 145 | M10 x 100 | 9 | 13 | 2270 |
| 2LPP-1271 | 2LPP-1271-NSP | 80 | 170 | M10 x 125 | 9 | 13 | 2270 |
| 2LPP-1272 | 2LPP-1272-NSP | 80 | 120 | M12 x 75 | 9 | 13 | 2270 |
| 2LPP-1273 | 2LPP-1273-NSP | 80 | 145 | M12 x 100 | 9 | 13 | 2270 |
| 2LPP-1274 | 2LPP-1274-NSP | 80 | 120 | M16 x 75 | 9 | 13 | 2270 |
| 2LPP-1275 | 2LPP-1275-NSP | 80 | 145 | M16 x 100 | 9 | 13 | 2270 |
| 2LPP-1276 | 2LPP-1276-NSP | 89 | 170 | M16 X 125 | 9 | 13 | 2270 |
| 2LPP-1277 | 2LPP-1277-NSP | 80 | 195 | M16 x 150 | 9 | 13 | 2270 |
| 3LPP-1278 | 3LPP-1278-NSP | 110 | 125 | M10 x 75 | 10.5 | 13 | 3180 |
| 3LPP-1279 | 3LPP-1279-NSP | 110 | 150 | M10 x 100 | 10.5 | 13 | 3180 |
| 3LPP-1280 | 3LPP-1280-NSP | 110 | 175 | M10 x 125 | 10.5 | 13 | 3180 |
| 3LPP-1281 | 3LPP-1281-NSP | 110 | 125 | M12 x 75 | 10.5 | 13 | 3180 |
| 3LPP-1282 | 3LPP-1282-NSP | 110 | 150 | M12 x 100 | 10.5 | 13 | 3180 |
| 3LPP-1283 | 3LPP-1283-NSP | 110 | 125 | M16 x 75 | 10.5 | 13 | 3180 |
| 3LPP-1284 | 3LPP-1284-NSP | 110 | 150 | M16 x 100 | 10.5 | 13 | 3180 |
| 3LPP-1285 | 3LPP-1285-NSP | 110 | 175 | M16 x 125 | 10.5 | 13 | 3180 |
| 3LPP-1286 | 3LPP-1286-NSP | 110 | 200 | M16 x 150 | 10.5 | 13 | 3180 |
