Economy Elastomer Base Leveling Pads

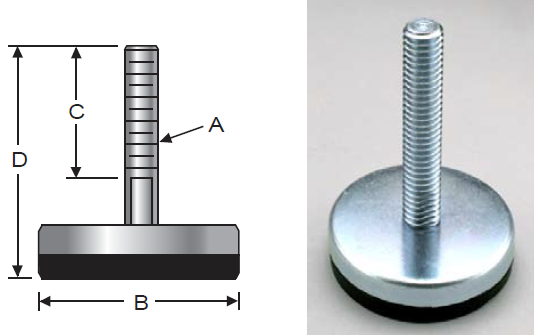

The stability offered by the economy elastomer base leveling pad comes via its elastomer base and non-swivel design. This leveler is perfect for light duty applications and the elastomer pad ensures that dangerous machine creep will remain a non-issue for your equipment and employees. Please see component diagram below.
| JBF P/N | JBF P/N SS | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (Lbs.) | Ship Wt. (Lbs.) |
|---|---|---|---|---|---|---|---|
| 1ECBP-1000 | 1ECBP-1000-SS | 10-24 | 1.200 | 1 1/2 | 2 1/4 | 250 | 0.04 |
| 1ECBP-1001 | 1ECBP-1001-SS | 1/4-20 | 1.200 | 1 1/2 | 2 1/4 | 250 | 0.04 |
| 1ECBP-1002 | 1ECBP-1002-SS | 5/16-18 | 1.200 | 1 1/2 | 2 1/4 | 250 | 0.04 |
| 1ECBP-1003 | 1ECBP-1003-SS | 5/16-18 | 2.030 | 2 | 3 | 250 | 0.12 |
| 1ECBP-1004 | 1ECBP-1004-SS | 3/8-16 | 2.030 | 2 | 3 | 250 | 0.14 |
| 1ECBP-1005 | 1ECBP-1005-SS | 3/8-16 | 2.400 | 2 | 3 | 250 | 0.18 |
| 1ECBP-1006 | 1ECBP-1006-SS | 3/8-16 | 2.400 | 4 | 5 | 250 | 0.24 |
| 1ECBP-1007 | 1ECBP-1007-SS | 1/2-13 | 2.400 | 2 | 3 | 250 | 0.24 |
| 1ECBP-1008 | 1ECBP-1008-SS | 1/2-13 | 2.400 | 4 | 5 | 250 | 0.34 |
| 2ECBP-1009 | 2ECBP-1009-SS | 1/2-13 | 2.800 | 2 | 3 | 500 | 0.26 |
| 2ECBP-1010 | 2ECBP-1010-SS | 1/2-13 | 2.800 | 4 | 5 | 500 | 0.36 |
| 2ECBP-1011 | 2ECBP-1011-SS | 5/8-11 | 2.800 | 2 | 3 | 500 | 0.32 |
| 2ECBP-1012 | 2ECBP-1012-SS | 5/8-11 | 2.800 | 4 | 5 | 500 | 0.48 |
| 2ECBP-1013 | 2ECBP-1013-SS | 1/2-13 | 3.187 | 4 | 5 | 500 | 0.44 |
| 2ECBP-1014 | 2ECBP-1014-SS | 1/2-13 | 3.187 | 6 | 7 | 500 | 0.52 |
| 2ECBP-1015 | 2ECBP-1015-SS | 5/8-11 | 3.187 | 4 | 5 | 500 | 0.56 |
| 2ECBP-1016 | 2ECBP-1016-SS | 5/8-11 | 3.187 | 6 | 7 | 500 | 0.70 |
| 2ECBP-1017 | 2ECBP-1017-SS | 3/4-10 | 2.800 | 2 | 3 | 500 | 0.40 |
| 2ECBP-1018 | 2ECBP-1018-SS | 3/4-10 | 2.800 | 4 | 5 | 500 | 0.60 |
| 2ECBP-1019 | 2ECBP-1019-SS | 3/4-10 | 3.187 | 4 | 5 | 500 | 0.70 |
| 2ECBP-1020 | 2ECBP-1020-SS | 3/4-10 | 3.187 | 6 | 7 | 500 | 0.90 |
