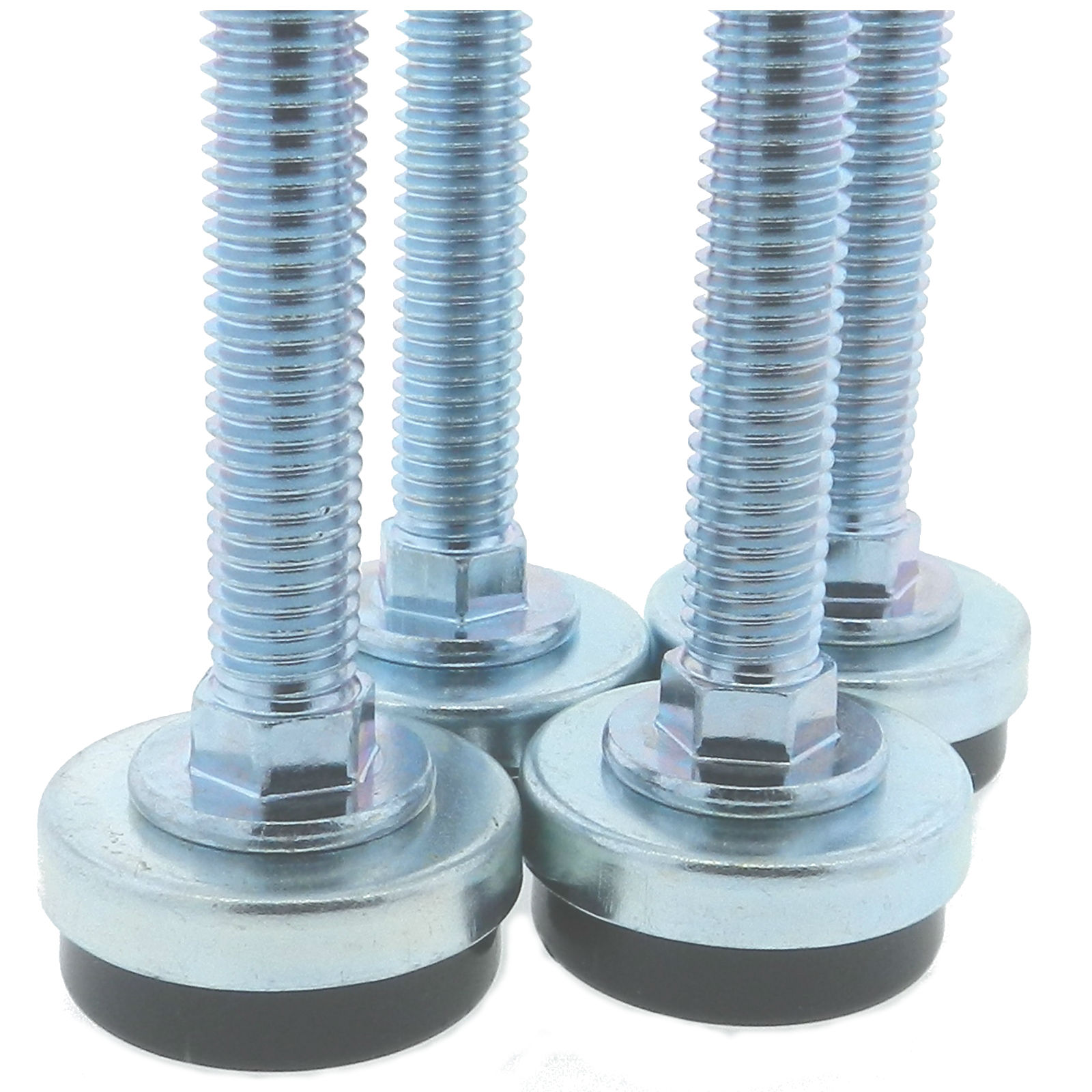

(3) Poly Cushioned Base Leveling Pads

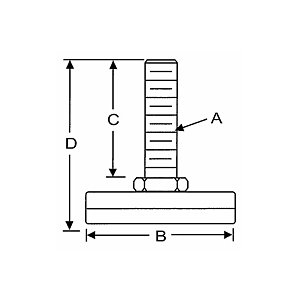

JBF National’s poly cushioned base leveling pads are manufactured from steel and come with a zinc plating to increase corrosion protection. The polyethylene base this leveler features makes it ideal for oily and slippery surface situations where vibration reduction is key. Please see component diagram below.
| JBF National Part Number | A | B | C | D |
|---|---|---|---|---|
| 1PPLC-1311 | 5/16-18" | 1.12" | 3/4" | 1.50" |
| 1PPLC-1312 | 5/16-18" | 1.12" | 1 1/2" | 2.25" |
| 2PPLC-1313 | 3/8-16" | 1.12" | 3" | 3.75" |
| 3PPLC-1314 | 1/2-13" | 1.60" | 3" | 4.06" |
