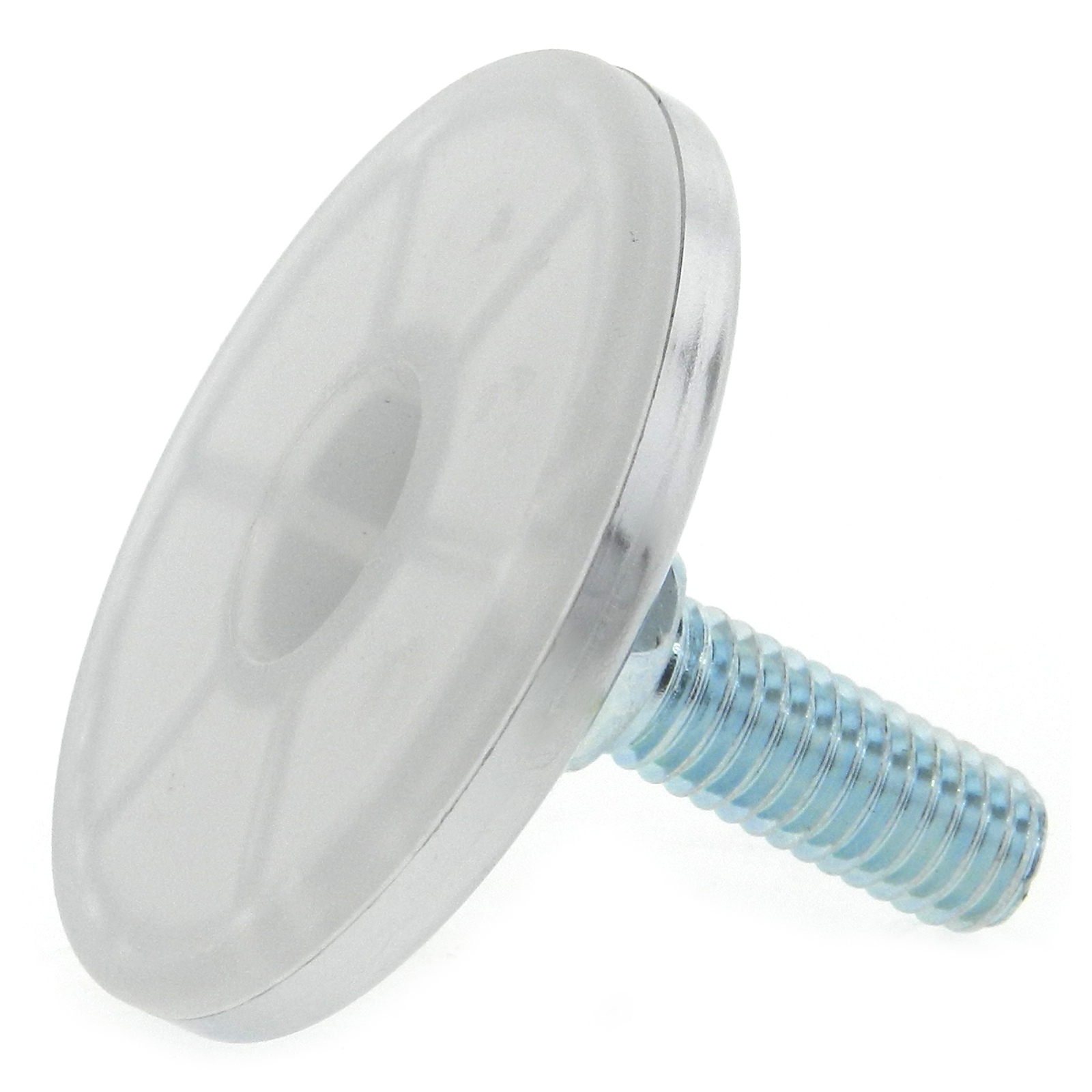

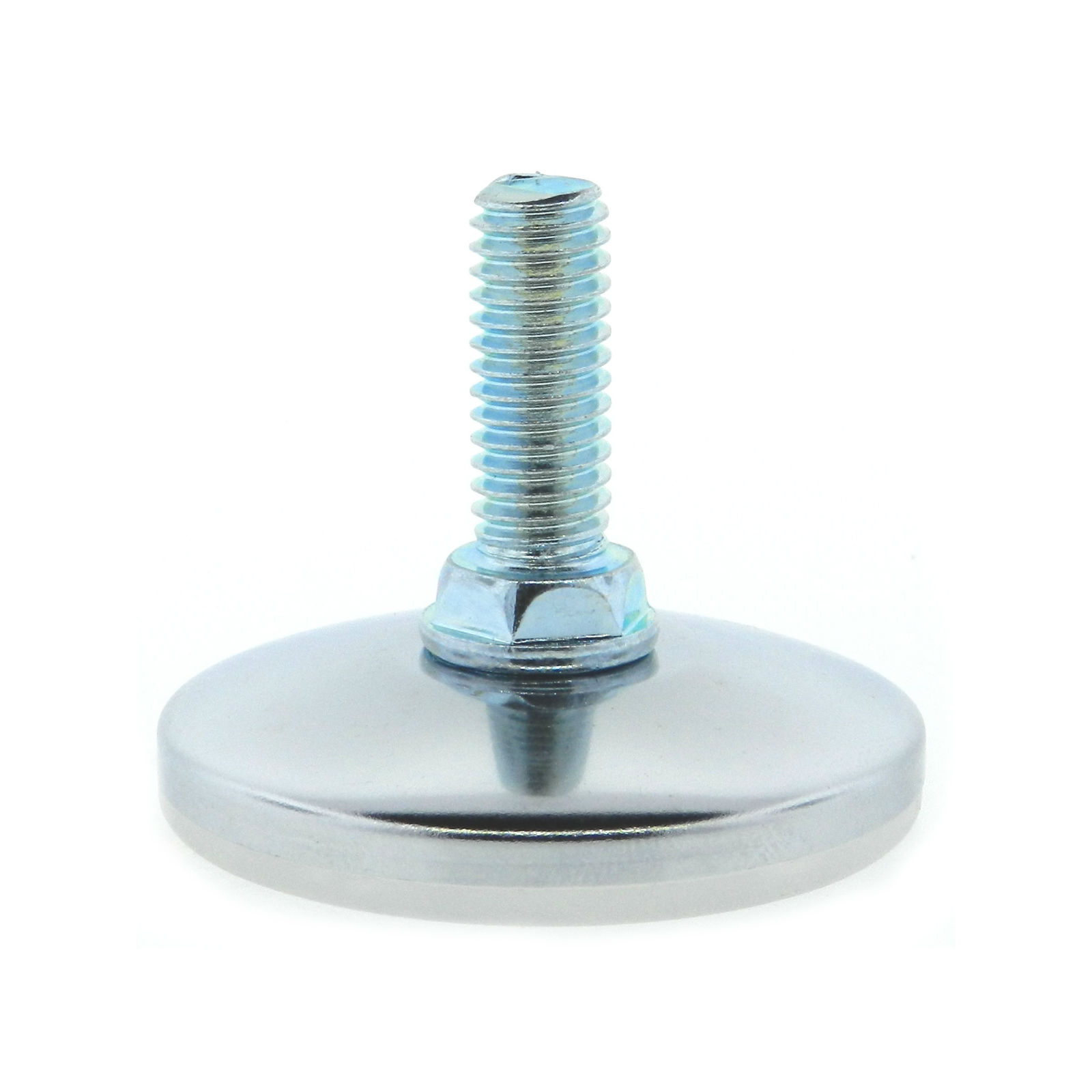

(3) Nylon Base Leveling Pads

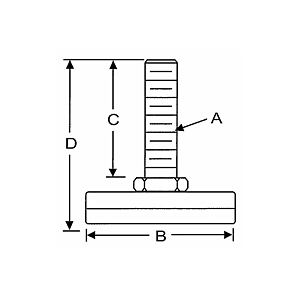

The stability offered by the Willi Glide nylon base leveling pad comes via its nylon base and non-swivel design. This leveler is perfect for light duty applications and the nylon base will make possible surface damage from equipment, a non-issue. Ideal for such applications as refrigerated coolers, and shelving units. Please see component diagram below.
| JBF National Part Number | A | B | C | D |
|---|---|---|---|---|
| 1NBLP-1331 | 5/16-18 | 1" | 1" | 1 1/2" |
| 1NBLP-1332 | 1/4-20 | 1" | 1" | 1 1/2" |
| 2NBLP-1333 | 3/8-16 | 1 3/8" | 1 1/2" | 2 3/16" |
| 2NBLP-1334 | 3/8-16 | 1 3/8" | 2 1/2" | 3 3/16" |
| 3NBLP-1335 | 1/2-13 | 1 11/16" | 1 1/2" | 2 3/16" |
| 3NBLP-1336 | 1/2-13 | 1 11/16" | 2 1/2" | 3 3/16" |
| 3NBLP-1337 | 3/8-16 | 1 11/16" | 1 1/2" | 2 /316" |
| 3NBLP-1338 | 3/8-16 | 1 11/16" | 3 1/2" | 4 3/16" |
