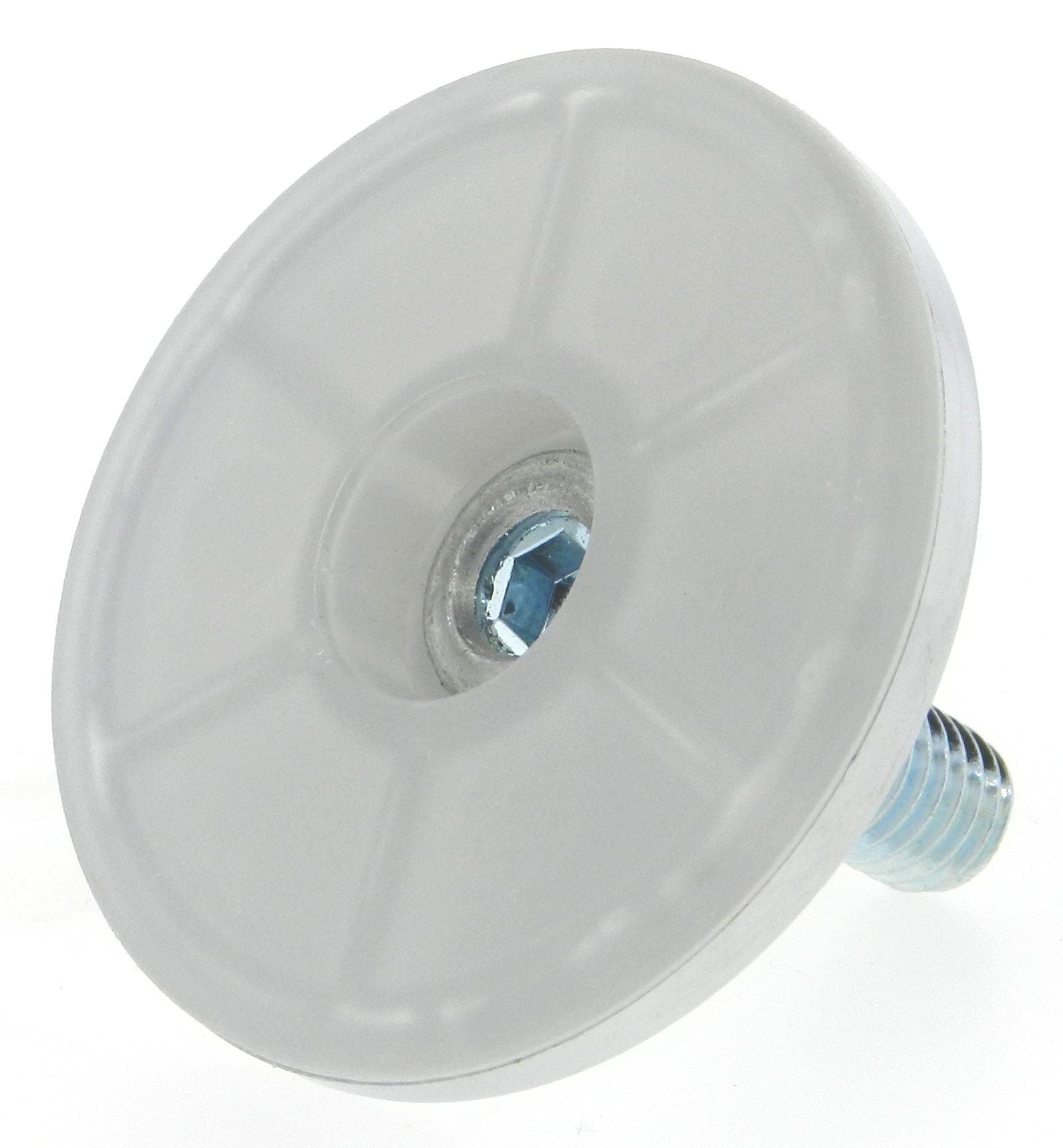

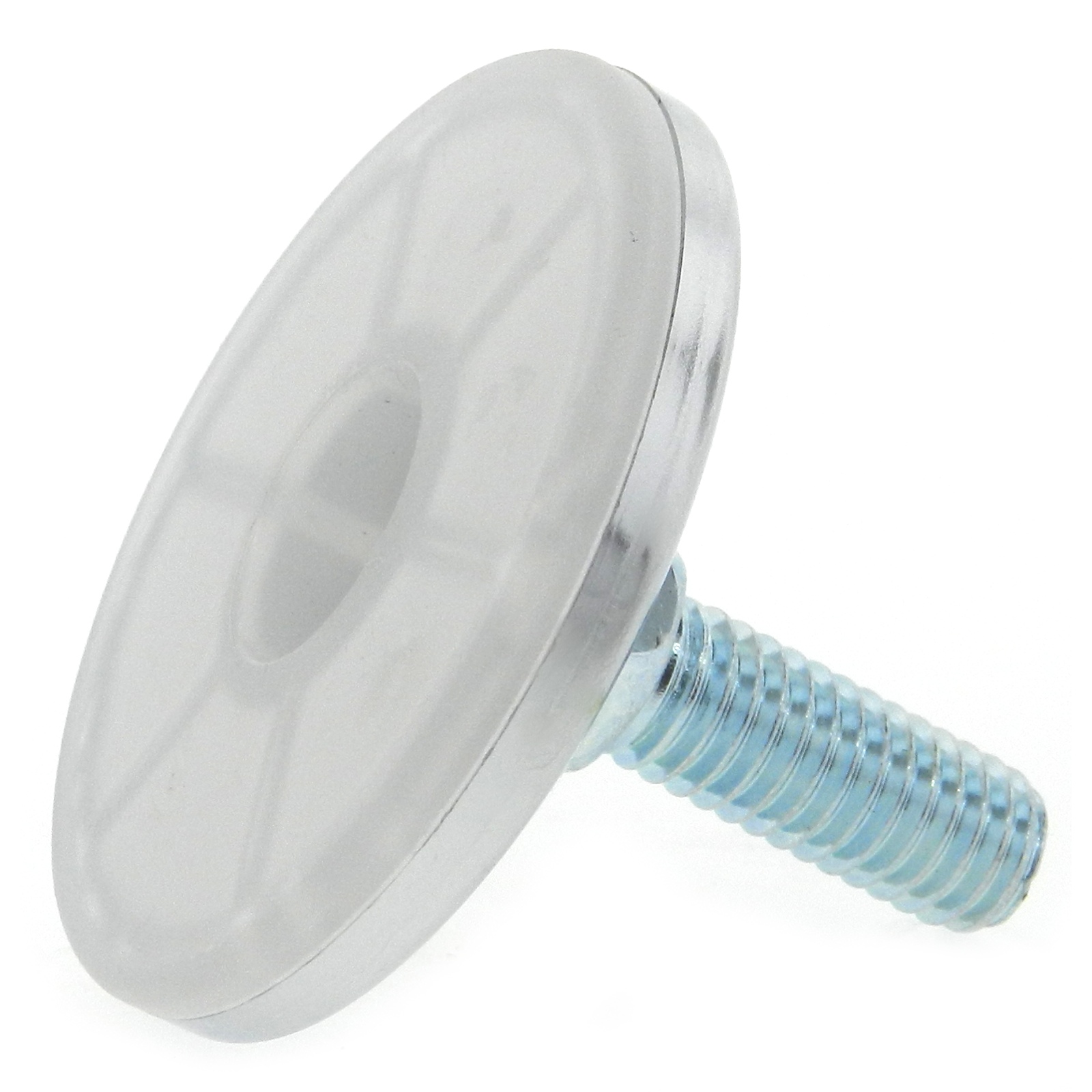

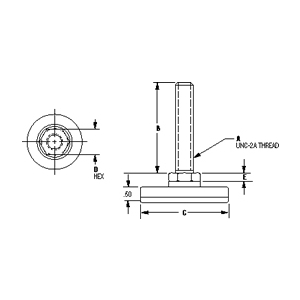

The stability offered by LevelStar nylon base leveling pads comes via its nylon base and non-swivel design. These leveling pads lend themselves to high vibration/constant use situations where the need for machinery stability and eliminating machinery creep is a must. This leveler features a 300 Lbs. maximum weight rating, a stud with a fully integrated hexagonal nut, and is manufactured from steel with zinc plating to increase corrosion protection. Please see component diagram below.
JBF National Part Number | A | B | C | D-hex | E |
---|---|---|---|---|---|
1NBLP-1307 | 1/4-20 | 1 1/2" | 1.38 | 1/2" | 0.16 |
2NBLP-1308 | 5/16-18 | 1 1/2" | 1.38 | 1/2" | 0.16 |
3NBLP-1309 | 3/8-16 | 2" | 2 | 9/16" | 0.2 |
4NBLP-1310 | 1/2-13 | 2" | 2 | 9/16" | 0.2 |
