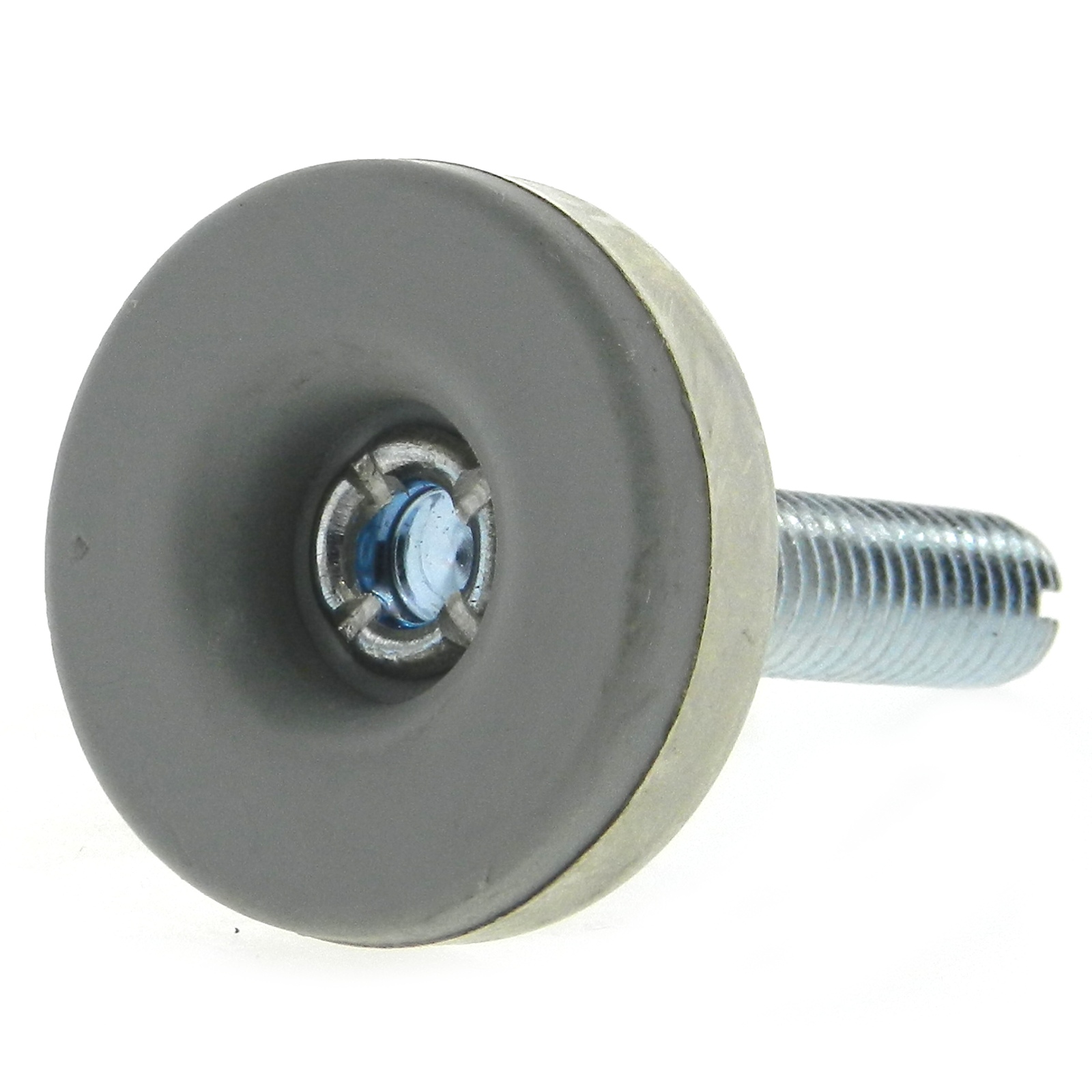

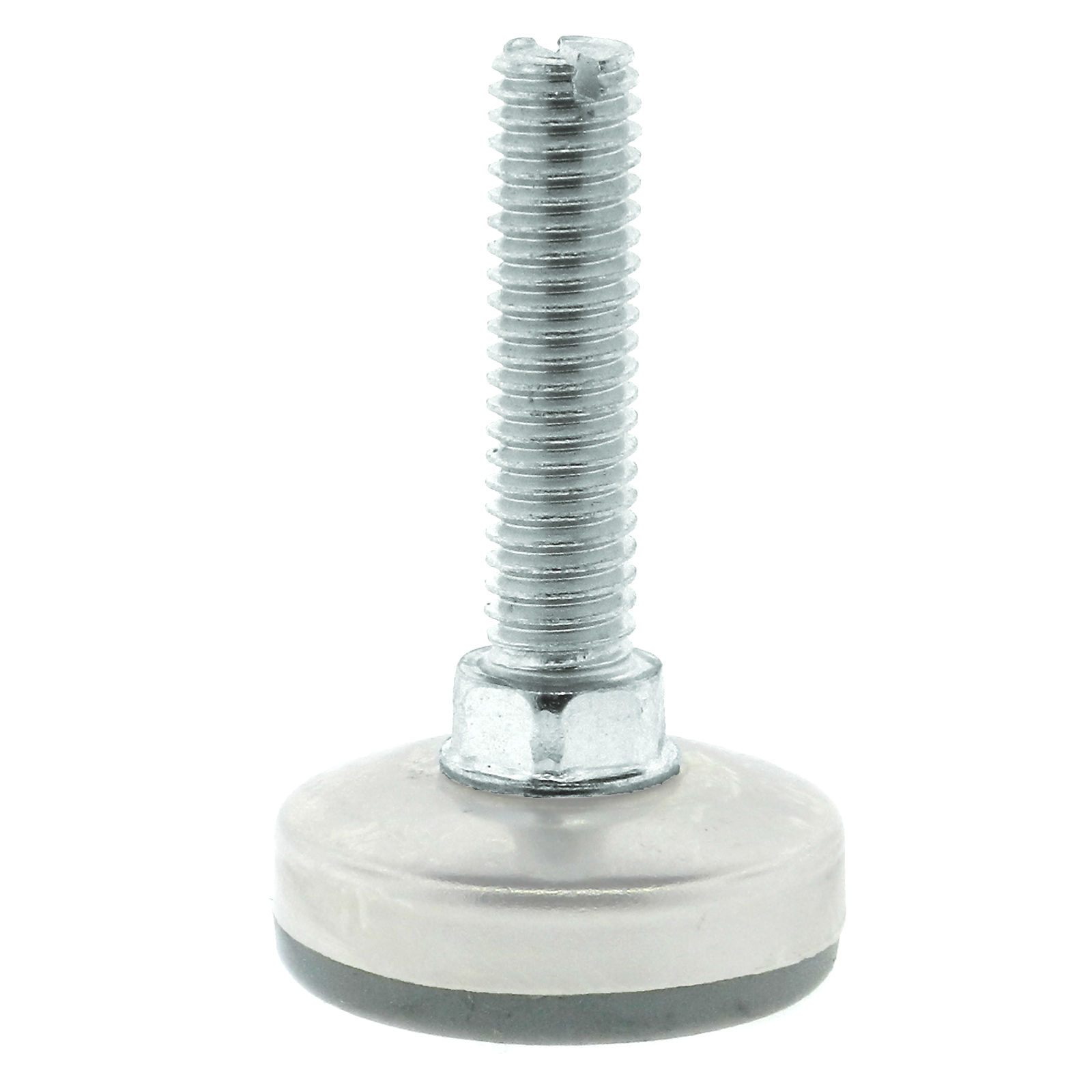

(3) LevelStar Elastomer Base Leveling Pads

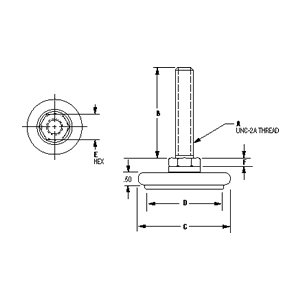

The stability offered by LevelStar elastomer base leveling pads comes via its rubber base and non-swivel design. These levelers lend themselves to high vibration/constant use situations where the need for machinery stability and eliminating machinery creep is a must. This leveler features a 300 Lbs. maximum weight rating, a stud with a fully integrated hexagonal nut, and is manufactured from steel with zinc plating to increase corrosion protection. Please see component diagram below.

JBF National Part NumberABCDE-hexF
1EBLP-13031/4-201 1/2"1.51.221/2"0.16
2EBLP-13045/16-181 1/2"1.51.221/2"0.16
3EBLP-13053/8-162"21.719/16"0.2
4EBLP-13061/2-132"21.719/16"0.2
