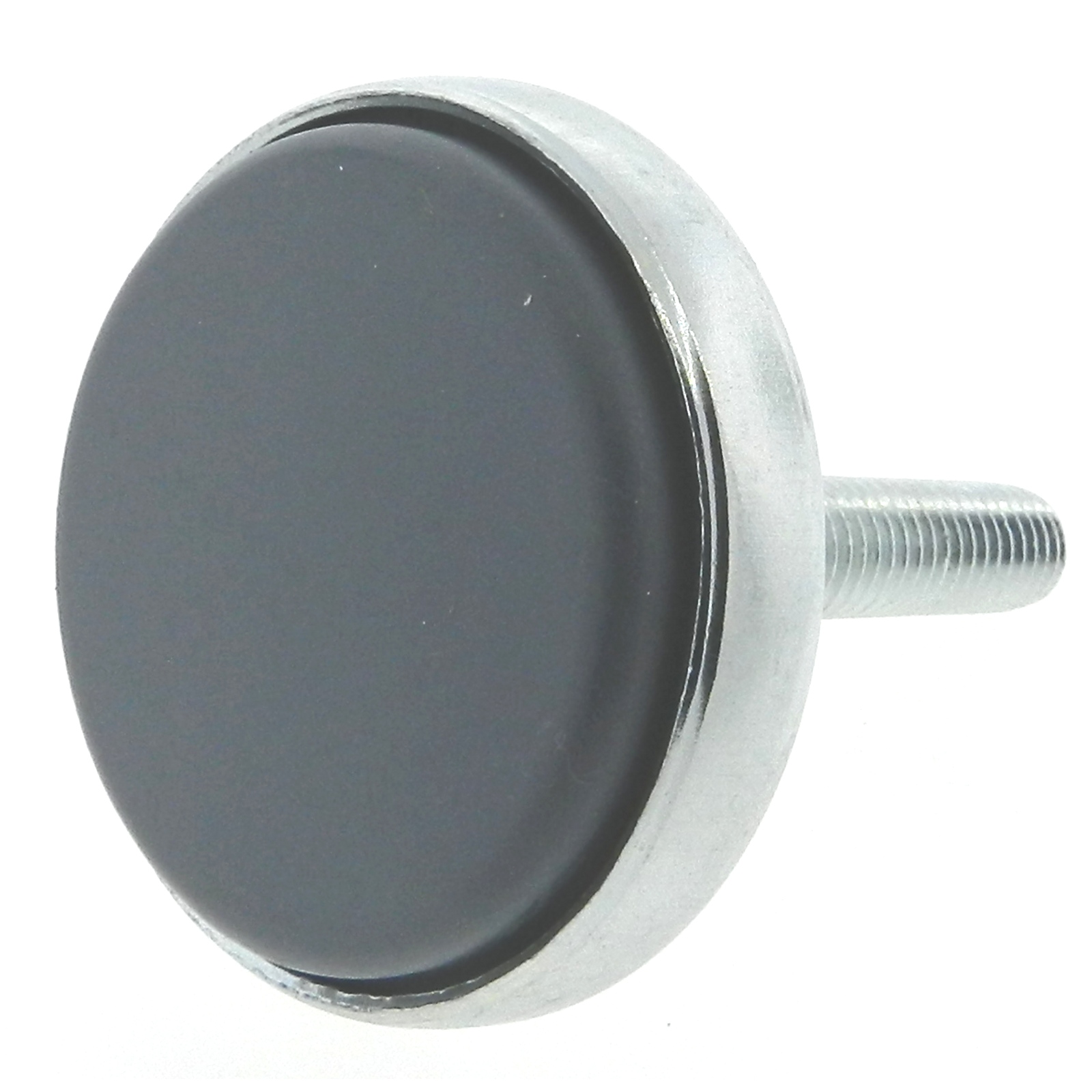

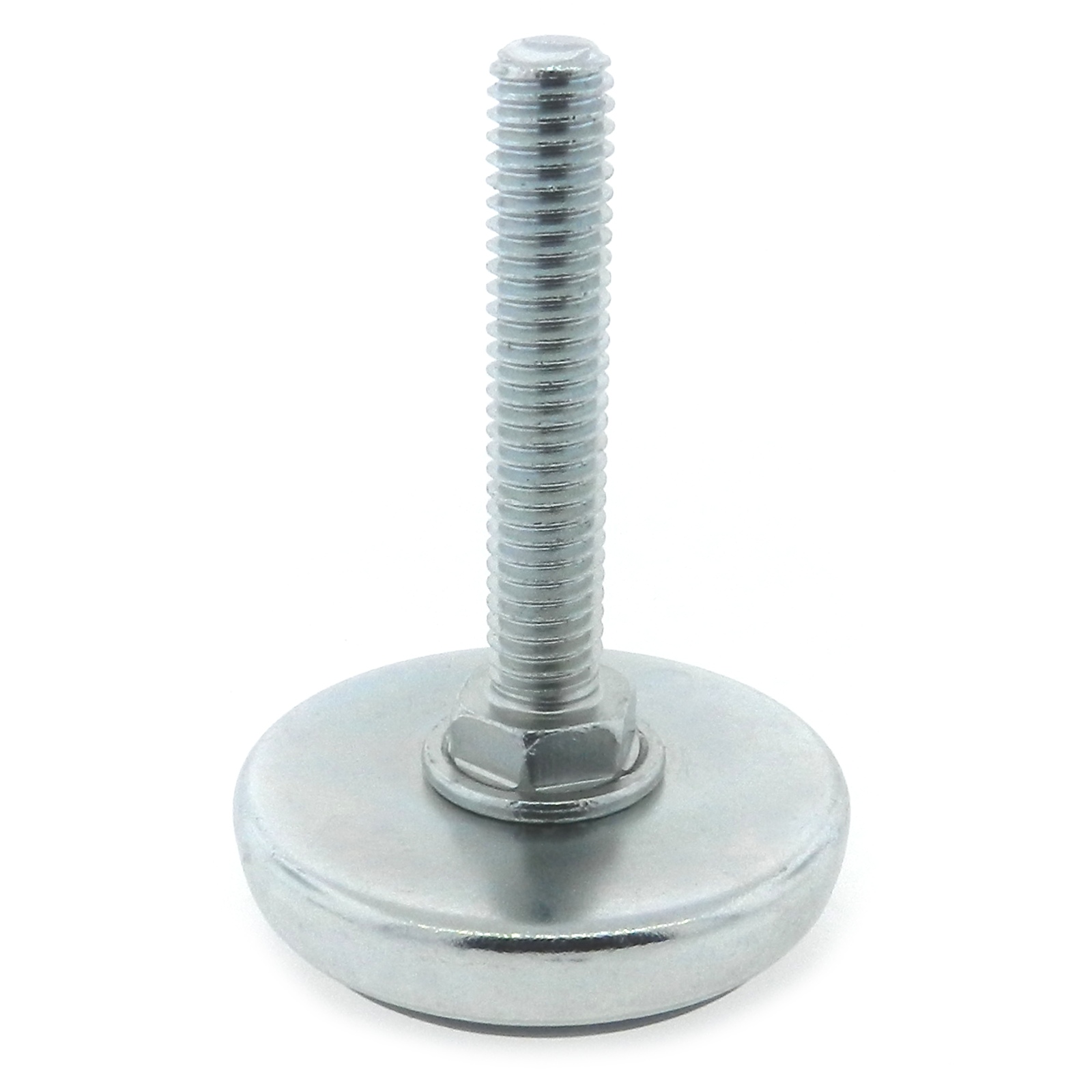

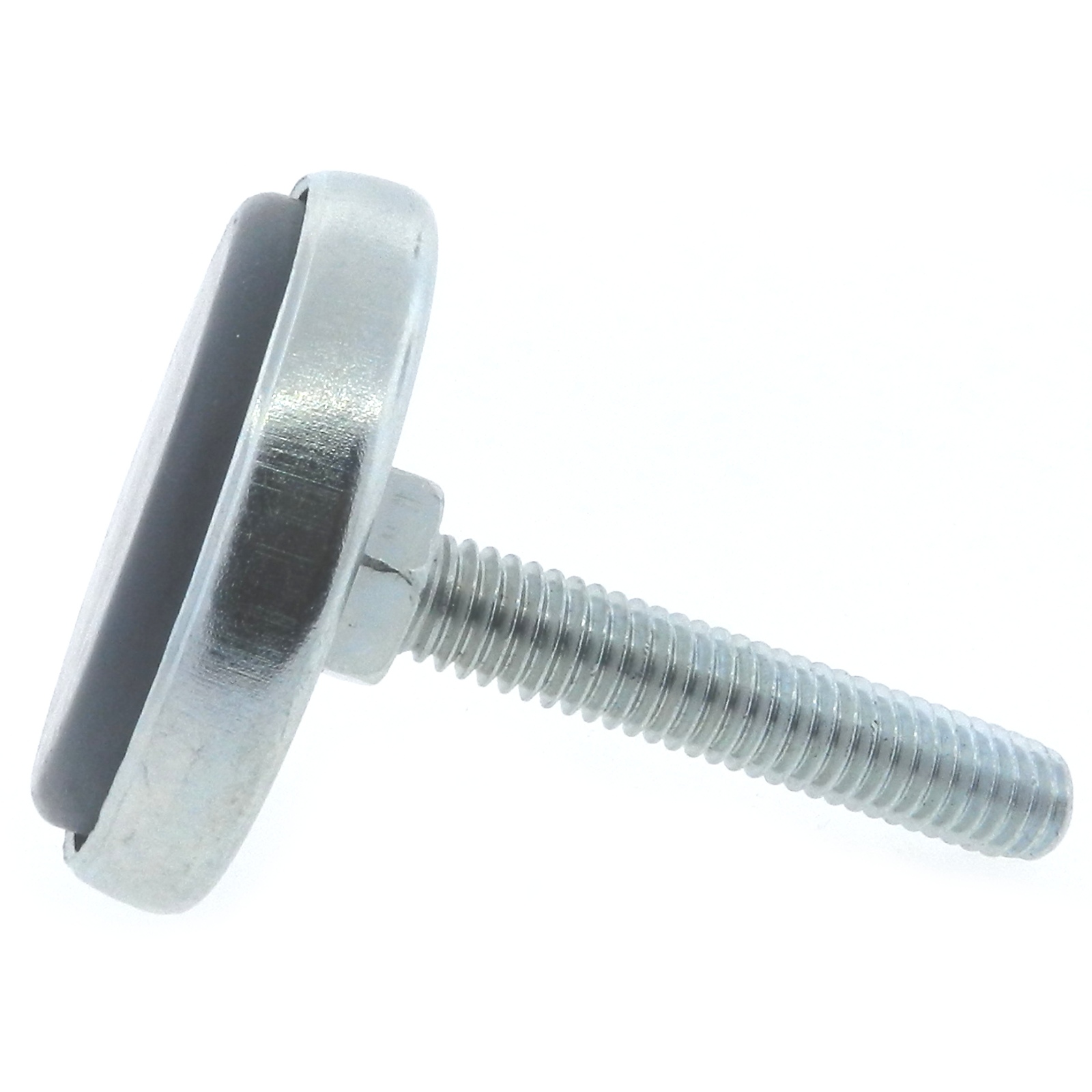

(3) Econo Glide Leveling Pads

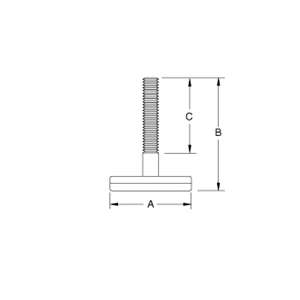

JBF National’s Econo Glide leveling pads are low cost, and can be used for many light duty applications. The base pads for these levelers are offered in black nylon, white polypropylene, and thermoplastic elastomer. From office furniture and cabinetry, to ice machines, display racks, and everything in between, these levelers offer the stability you need. Various stud lengths available. Please see component diagram below.
| JBF National Part Number | A | B | C | Pad Material |
|---|---|---|---|---|
| 1ECL-1287 | 1.14 | 1.39 | 1/4-20 x 1" | White PP |
| 1ECL-1288 | 1.14 | 1.39 | 5/16-18 x 1" | White PP |
| 2ECL-1289 | 1.38 | 1.75 | 1/4-20 x 1" | Black Nylon |
| 2ECL-1290 | 1.38 | 1.75 | 5/16-18 x 1" | Black Nylon |
| 2ECL-1291 | 1.38 | 1.75 | 3/8-16 x 1" | TPR |
| 3ECL-1292 | 1.65 | 2.15 | 5/16-18 x 1 3/8" | Black Nylon |
| 3ECL-1293 | 1.65 | 1.78 | 3/8-16 x 1" | TPR |
| 4ECL-1294 | 1.97 | 1.67 | 3/8-16 x 1 | White PP |
| 4ECL-1295 | 1.97 | 2.04 | 5/16-18 x 1 3/8" | TPR |
| 4ECL-1296 | 1.97 | 2.67 | 3/8-16 x 2" | TPR |
| 5ECL-1297 | 2.24 | 1.62 | 3/8-16 x 1" | Black Nylon |
| 6ECL-1298 | 2.56 | 1.75 | 1/4-20 x 1" | Black Nylon |
| 6ECL-1299 | 2.56 | 2.12 | 5/16-18 x 1 3/8" | Black Nylon |
| 6ECL-1300 | 2.56 | 2.75 | 3/8-16 x 2" | Black Nylon |
| 7ECL-1301 | 2.95 | 2.12 | 3/8-16 x 1 3/16" | White PP |
| 8ECL-1302 | 3.15 | 1.8 | 3/8-16 x 1" | Black Nylon |
