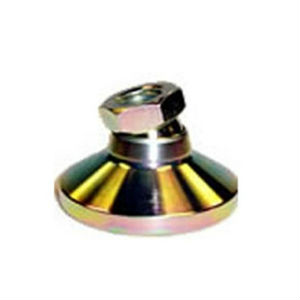

(1) Steel Leveling Pads Tapped

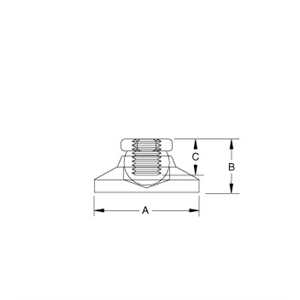

JBF National steel leveling pads are ideal for mounting various types of machinery including conveyor belts, racks, washing machines, refrigerators, and so much more. These levelers feature a 15 degree off center swivel, making machinery placement a cinch in bumpy and un-even surface situations. In addition to our standard gold chromate finish, we also offer black oxide, stainless steel and nickel plated finishes to suit any and all mounting situations. Inch and metric versions available. Please see component diagram below.
| JBF National Part Number / Inch | A | B | C | Tap Size | Hex Size | Max load rating (lbs) |
|---|---|---|---|---|---|---|
| 1SP-1032 | 3/4" | 17/32" | 15/64" | 10-32 | 3/8" | 700 |
| 2SP-1033 | 1" | 45/64" | 5/16" | 1/4-20 | 1/2" | 1100 |
| 3SP-1034 | 1 1/4" | 7/8" | 3/8" | 5/16-18 | 5/8" | 2500 |
| 3SP-1035 | 1 1/4" | 7/8" | 3/8" | 3/8-16 | 5/8" | 3700 |
| 3SP-1036 | 1 1/4" | 7/8" | 3/8" | 3/8-24 | 5/8" | 3300 |
| 4SP-1037 | 1 7/8" | 1 1/8" | 7/16" | 1/2-13 | 3/4" | 5000 |
| 4SP-1038 | 1 7/8" | 1 1/8" | 7/16" | 1/2-20 | 3/4" | 4000 |
| 5SP-1039 | 2 1/2" | 1 1/4" | 7/16" | 5/8-11 | 7/8" | 6000 |
| 5SP-1040 | 2 1/2" | 1 1/4" | 7/16" | 5/8-18 | 7/8" | 5000 |
| 6SP-1041 | 3" | 1 1/2" | 5/8" | 3/4-10 | 1 1/16" | 7200 |
| 6SP-1042 | 3" | 1 1/2" | 5/8" | 3/4-16 | 1 1/16" | 6200 |
| 7SP-1043 | 4" | 1 7/8" | 13/16" | 1-8 | 1 3/8" | 22000 |
| 7SP-1044 | 4" | 1 7/8" | 13/16" | 1-12 | 1 3/8" | 18000 |
| JBF National Part Number / Metric | A | B | C | Tap Size | Hex Size | Max load rating (kgs) |
|---|---|---|---|---|---|---|
| 1SP-1082 | 19 | 13.5 | 6 | M6 | 3/8" | 318 |
| 2SP-1083 | 25 | 18 | 8 | M8 | 1/2" | 500 |
| 3SP-1084 | 32 | 22 | 10 | M10 | 5/8" | 1680 |
| 4SP-1085 | 48 | 31.5 | 11 | M12 | 3/4" | 2272 |
| 5SP-1086 | 64 | 32 | 11 | M16 | 7/8" | 2727 |
| 6SP-1087 | 76 | 38 | 16 | M20 | 1 1/16" | 3272 |
| 7SP-1088 | 102 | 48 | 21 | M24 | 1 3/8" | 10000 |
