Machinery Anti-Vibration Mounts

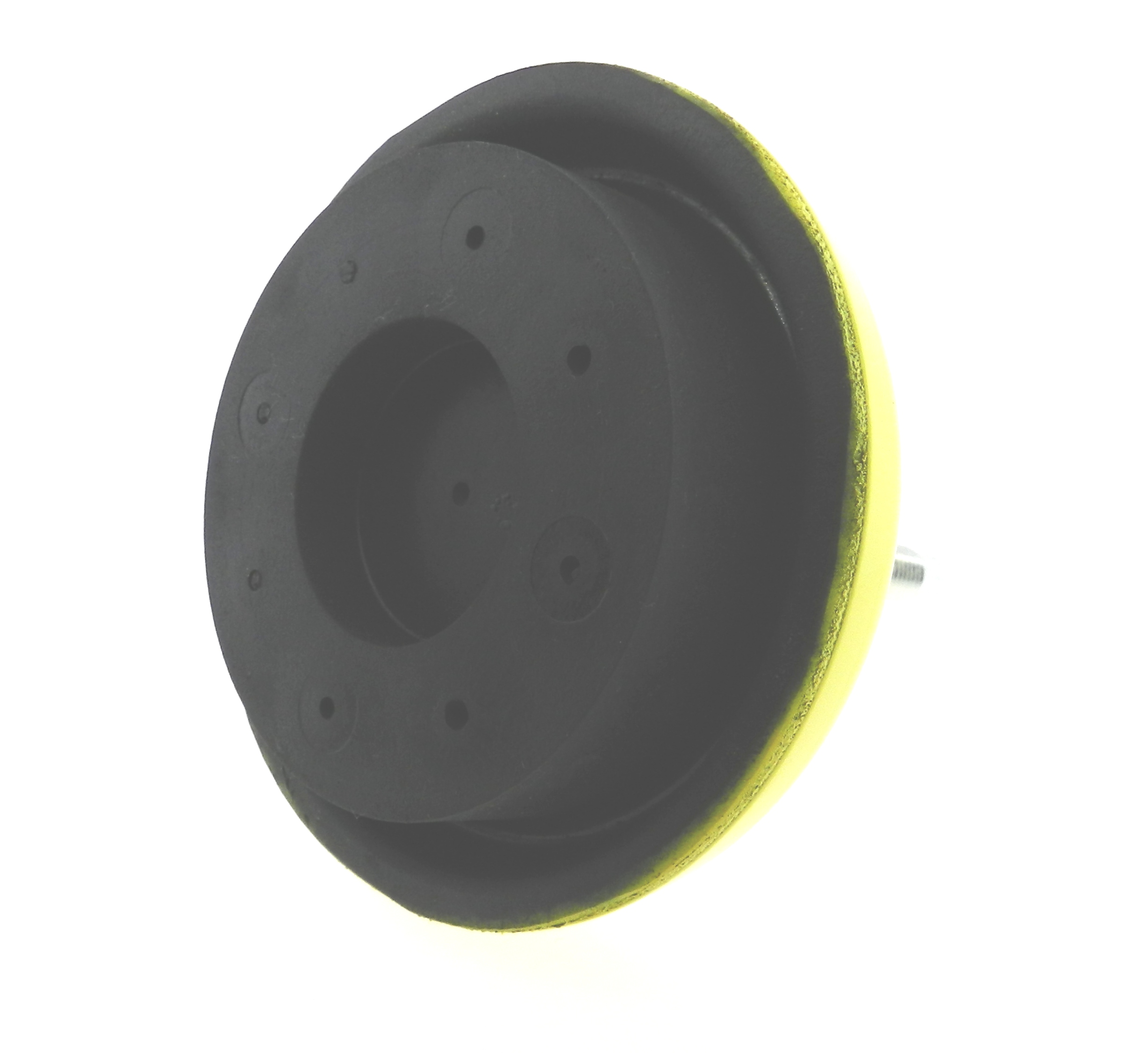

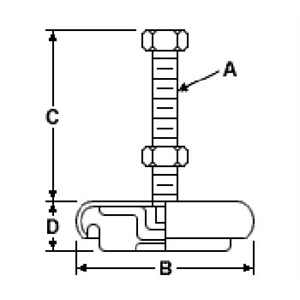

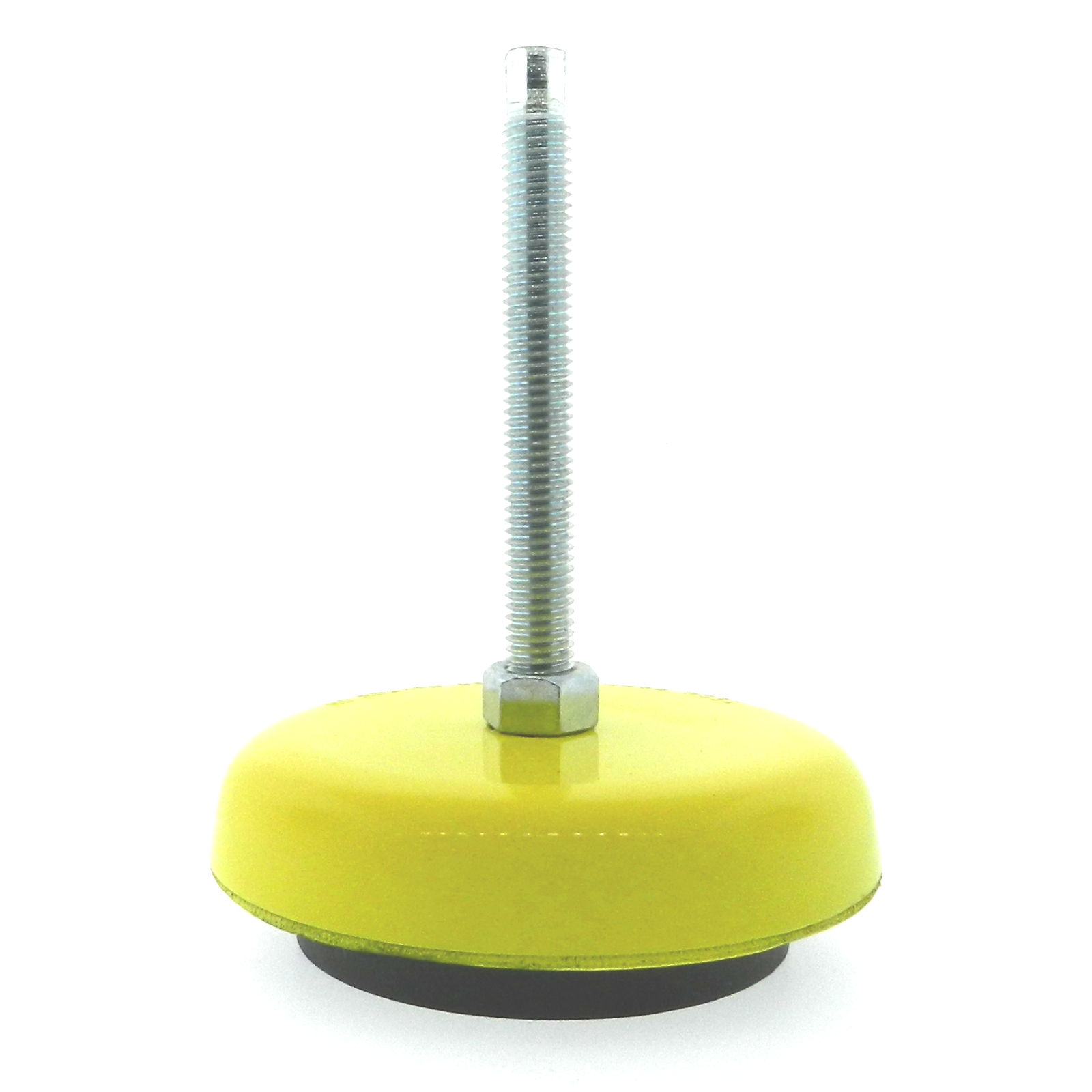

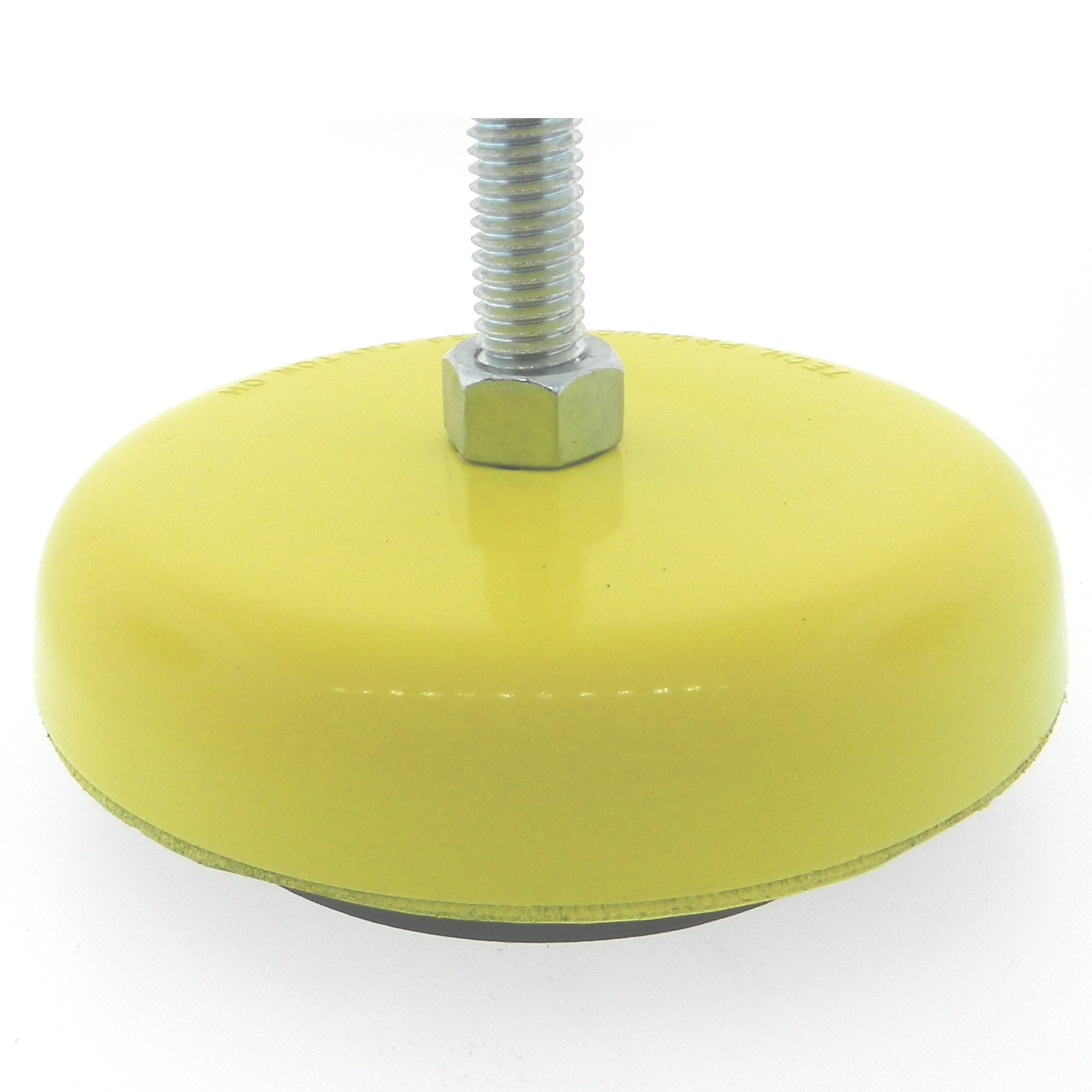

This anti-vibration mount from JBF National features a high quality neoprene elastomer pad, which is housed in a hardened steel cup for the highest durability. For quick and easy leveling, this mount features a hexagonal leveling bolt or square head stud and locking nut. With this mount stabilizing your vibration prone machinery, you can be assured that it will stay put. Inch and metric versions available. Please see component diagram below.
| JBF P/N | A thread | B Base Dia | C Thread Length | D-Static Ht | Min/Max Load | Head Type |
|---|---|---|---|---|---|---|
| 3MVM-1076 | 3/8-16 | 3.13" | 3.00" | 1.50" | 55/250 lbs | Hex |
| 3MVM-1077 | 3/8-16 | 3.13" | 3.00" | 1.50" | 100/500 lbs | Hex |
| 3MVM-1078 | 3/8-24 | 3.13" | 3.00" | 1.50" | 100/500 lbs | Hex |
| 4MVM-1079 | 1/2-13 | 4.75" | 5.00" | 1.50" | 300/1000 lbs | Hex |
| 4MVM-1080 | 1/2-13 | 4.75" | 5.00" | 1.50" | 300/1000 lbs | Square |
| 5MVM-1081 | 3/4-10 | 6.25" | 5.00" | 1.63" | 500/4500 lbs | Hex |
| 5MVM-1082 | 3/4-10 | 6.25" | 5.00" | 1.63" | 500/4500 lbs | Square |
| 7MVM-1084 | 1-14 | 9.00" | 8.00" | 2.50" | 4000/13000 lbs | Square |
| 8MVM-1085 | 3/4-10 | 9.00" | 4.00" | 2.25" | 4000/13000 lbs | Hex |
| 8MVM-1086 | 3/4-10 | 9.00" | 8.00" | 2.25" | 4000/13000 lbs | Hex |
| 1MVM-1087 | 1/2-13 | 6.25" | 5.00" | 1.63" | 500/4100 lbs | Hex |
| 1MVM-1073 | M12 x 1.75 | 120mm | 130mm | 38mm | 135/450 kgs | Hex |
| 2MVM-1074 | M20 x 2.5 | 160mm | 130mm | 41mm | 230/2040 kgs | Hex |
| 2MVM-1075 | M24 x 3.0 | 230mm | 180mm | 57mm | 1815/5900 kgs | Hex |
| 6MVM-1083 | M10 x 1.5 | 80mm | 80mm | 38mm | 45/230 kgs | Hex |
