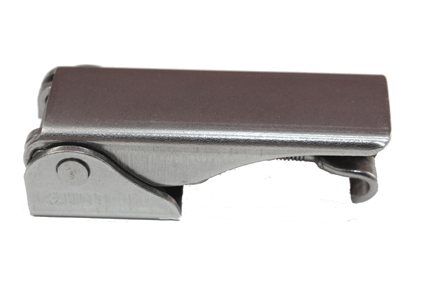

CA-5100 - Under-Center Draw Latch

Under-Center Draw Latch
Click to enlarge

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-5100 is manufactured from clear zinc plated, 316 stainless, or passivated stainless steel. This model allows for tension change based on hook adjustment. It features a maximum working load of 350 Lbs. and an ultimate working load of 450 Lbs. Lever stop at 73 degrees. Please see component diagram below.

JBF National Part NumberProduct Description
CA-5100-ST-CZ-170Steel / Clear Zinc
CA-5100-SS-CP-170Stainless / Passivated
CA-5100L-SS-CP-173 (with Hasp)Stainless / Passivated
CA-5100L2-SS-CP-173 (with Secondary Catch)Stainless / Passivated
CA-5100-316SS-CP-170316 Stainless / Lever and Base are .055 Thick
