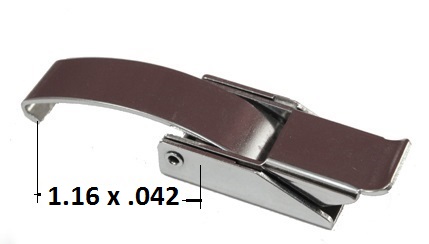

CA-4205 & CA-4205TD - Over-Center Draw Latches W/ Curved Hook

Over-Center Draw Latch with Curved Hook
Click to enlarge

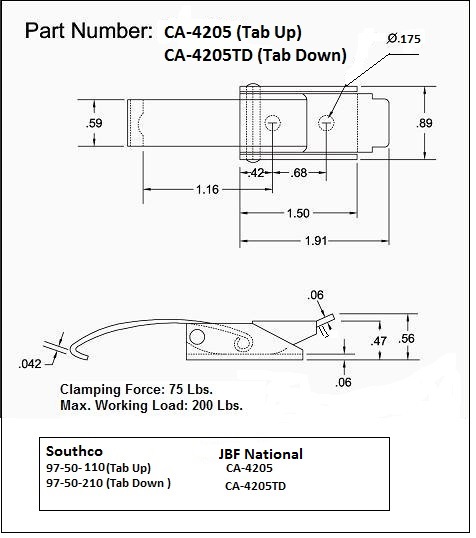

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-4205 and CA-4205TD are manufactured from clear zinc plated or black powder coated steel, or passivated stainless steel. Tab up and tab down models available. Uses strike SK-4200 Please see component diagram below.

JBF National Part NumberProduct Description
CA-4205-ST-CZ-175Steel / Clear Zinc / Tab Up
CA-4205-SS-CP-175Stainless / Passivated / Tab Up
CA-4205TD-SS-CP-175Stainless / Passivated / Tab Down
CA-4205-ST-BPO-175Steel / Black Powder
