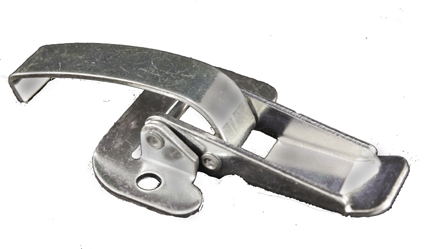

CA-4020 - Over-Center Draw Latch W/ Solid Curved Hook

Over-Center Draw Latch with Solid Curved Hook
Click to enlarge

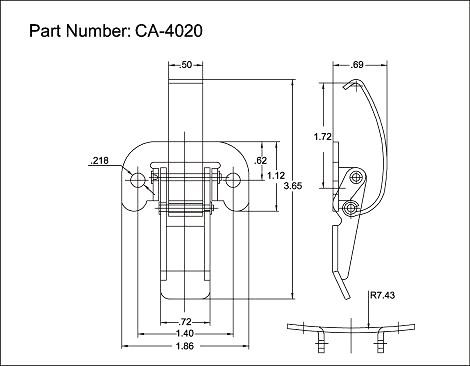

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-4020 is manufactured from clear zinc plated, black E. coated, and unfinished steel or passivated stainless steel. This model has been tested to 250 Lbs. and is available with or without holes. Uses strikes SK-4000 and SK-4001 Please see component diagram below.

JBF National Part NumberProduct Description
CA-4020-ST-NF-XXXSteel / No Finish / Without Holes
CA-4020-ST-QA-218Steel / Black E.Coat
CA-4020-ST-CZ-218Steel / Clear Zinc
CA-4020-SS-CP-218Stainless / Passivated /.218 Dia. Holes
