CA-3700 - Lockable Over-Center Draw Latch

Lockable Over-Center Draw Latch
Click to enlarge

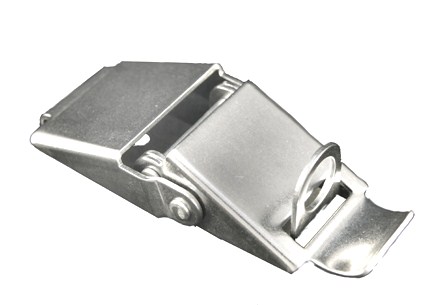

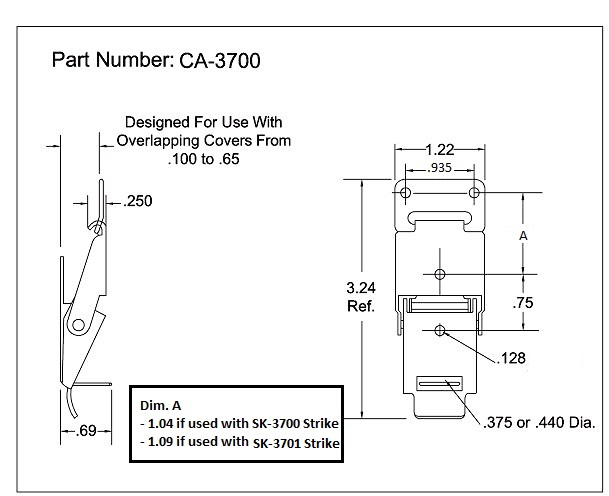

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This lockable catch is manufactured from either 316 stainless steel or 304 stainless steel with a passivated finish. This model allows for tension adjustment based on latch/keeper hole distance. Uses strikes SK-3700 and SK-3701 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3700-316SS-CP-142316 Stainless /.142 Dia Hole
CA-3700-316-SS-CP-128316 Stainless /.128 Dia Hole
CA-3700-316SS-CP-440316SS /.128 Dia base holes /.440 Dia. Padlock Eye
CA-3700-SS-CP-142304 Stainless / Passivated
