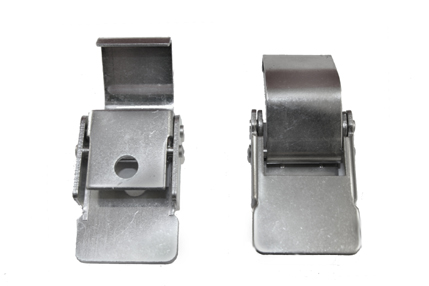

CA-3600X - Over-Center Draw Latch

Over-Center Draw Latch
Click to enlarge

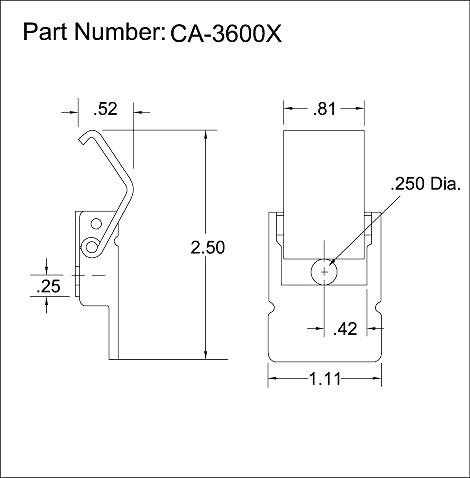

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3600X is manufactured from either clear zinc plated steel or passivated stainless steel. Please see component diagram below.

JBF National Part NumberProduct Description
CA-3600X-ST-CZ-250Steel / Clear Zinc / Single Hole
CA-3600X-SS-CP-250Stainless / Passivated / Single Hole
CA-3600X-ST-CZ-312Steel / Clear Zinc / .312 Dia. Hole
