CA-3600 - Over-Center Draw Latch

Over-Center Draw Latch

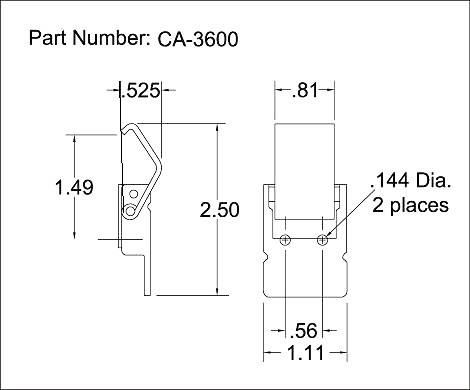

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3600 is manufactured from steel, 304 stainless or 316 stainless steel. The finish options include, clear zinc, yellow zinc, or a passivated stainless steel.  This model allows for tension adjustment based on latch/keeper hole distance. Please see component diagram below.

JBF National Part NumberProduct Description
CA-3600-ST-CZ-(.130 or .144)Steel / Clear Zinc
CA-3600-ST-YZ-144Steel / Yellow Zinc
CA-3600-SS-CP-144304 Stainless / Clear Passivated
CA-3600-316SS-NF-144316 Stainless / .144 Dia Holes
