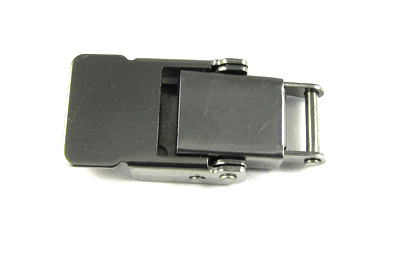

CA-3550 - Compression Spring Draw Latch

Compression Spring Draw Latch

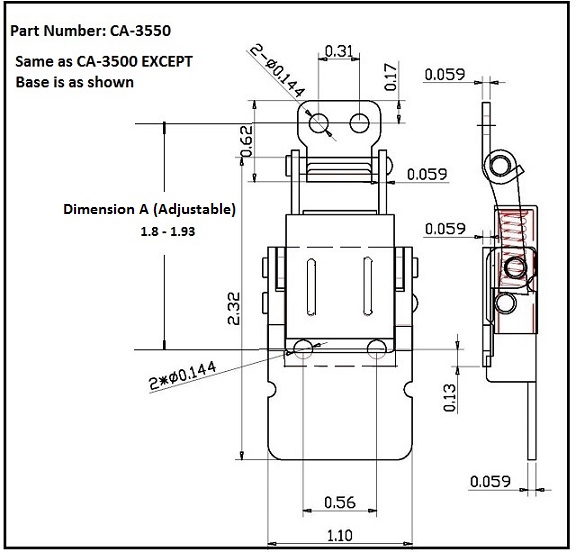

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3550 is manufactured from steel or stainless steel in one of four finishes including, clear zinc and olive drab. This model has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3550-ST-CZ-144Steel / Clear Zinc
CA-3550-SS-CP-144Stainless / Passivated
CA-3550-SS-BO-144Stainless / Black Oxide
CA-3550-ST-COD-144Steel / Cad / Olive Drab
