CA-3540Z, CA-3540X - Compression Spring Draw Latch W/ Hook - Tab Up

Compression Spring Draw Latch with Hook
Click to enlarge

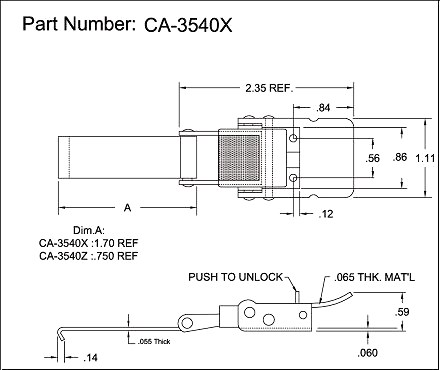

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3540Z and CA-3540X is manufactured from either passivated stainless steel or clear zinc plated steel and have an ultimate strength rating of 600 Lbs. Alternate hook lengths available upon customer request. Please see component diagram below.


JBF National Part NumberProduct Description
CA-3540X-SS-CP-144Stainless / Passivated / 1.70 Ref. Long Hook
CA-3540X-ST-CZ-144Steel / Clear Zinc / 1.70 Long Hook
CA-3540Z-SS-CP-144Stainless / Passivated /.750 Ref. Long Hook
