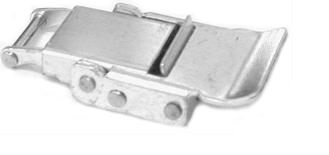

CA-3540S - Compression Spring Draw Latch - Tab Up

Compression Spring Draw Latch

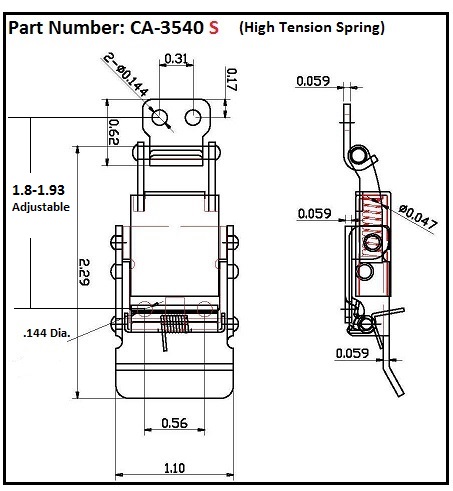

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3540S is manufactured from passivated stainless steel. This model features three high tension compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberMaterial / Finish
CA-3540-SS-CP-144Stainless / Passivated
