CA-3540 - Compression Spring Draw Latch - Tab Up

Compression Spring Draw Latch

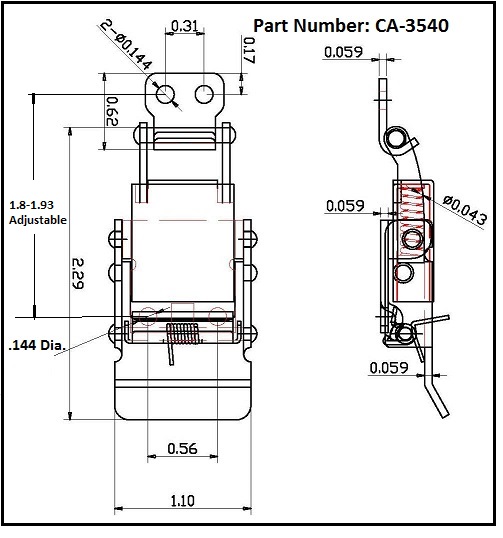

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. C-3540 is manufactured for steel and stainless steel in a variety of finishes including black oxide and clear zinc. This model features three compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3540-SS-BO-144Stainless / Black Oxide
CA-3540-ST-CZ-144Steel / Clear Zinc / .144 Dia Holes
CA-3540-SS-CP-130Stainless / Passivated / .130 Dia Holes
CA-3540-SS-EC-144Stainless / E. Coat
