CA-3530 - Lockable Compression Spring Draw Latch - Tab Up

Lockable Compression Spring Draw Latch

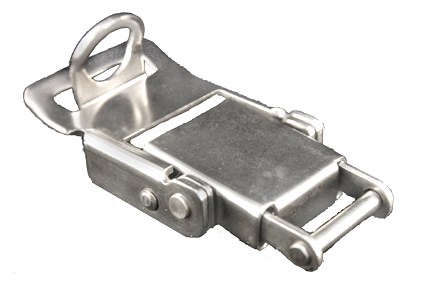

Click to enlarge

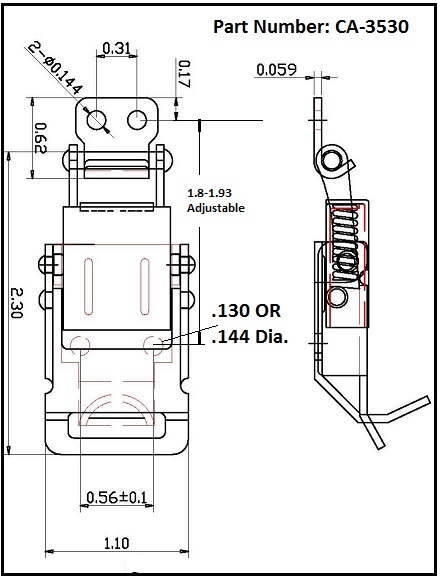

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3530 is manufactured from clear zinc plated steel, passivated stainless steel, black oxide stainless steel, 316 stainless steel, or stainless steel with an E. Coat finish. This lockable latch features three compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3530-ST-CZ-(.130 or .144)Steel / Clear Zinc /.130 or .144 Dia. Holes
CA-3530-SS-CP-(.130 or .144)Stainless / Passivated /.130 or .144 Dia. Holes
CA-3530-SS-BO-(.130 or .144)Stainless / Black Oxide /.130 or .144 Dia. Holes
CA-3530-316SS-CP-144316 Stainless /.144 Dia. Holes
CA-3530-SS-EC-144Stainless / E. Coat
