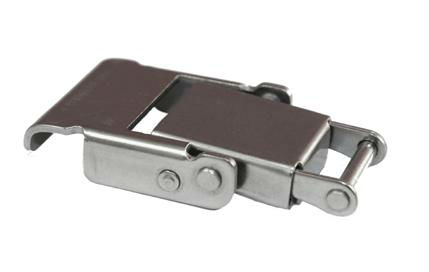

CA-3520X - Compression Spring Draw Latch - Tab Down

Compression Spring Draw Latch

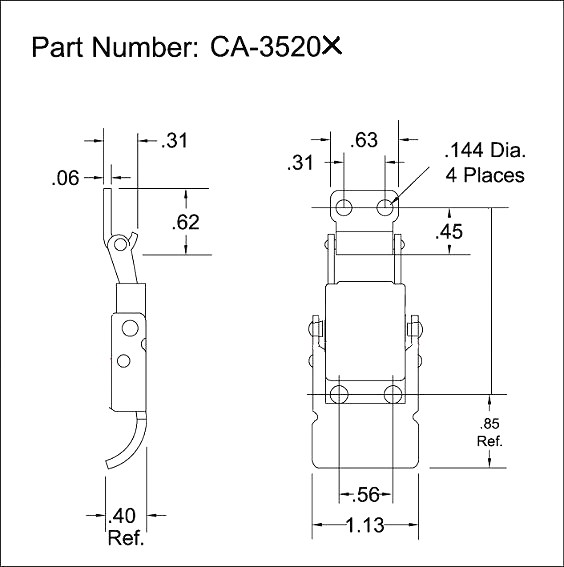

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3520X is manufactured from clear zinc steel or stainless steel. This model has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3520X-SS-CP-000Stainless / Without HolesĀ
CA-3520X-ST-CZ-000Steel / Clear ZincĀ
