Compression Spring Draw Latch

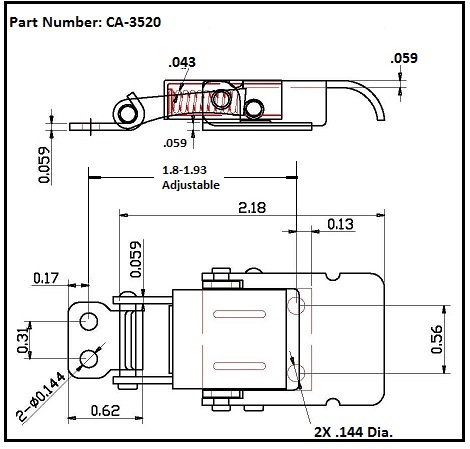

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3520 is manufactured from steel and stainless steel in a variety of finishes including clear zinc, cadmium, and olive drab. This catch features three compression springs and has an ultimate strength rating of 600 Lbs. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3520-ST-CZ-144Steel / Clear Zinc
CA-3520-SS-CP-144Stainless / Passivated
CA-3520-ST-CD-144Steel / Cadmium Finish
CA-3520-ST-NF-144Steel / No Finish / .144 Dia Holes
CA-3520-ST-OD-144Steel / Zinc / Olive Drab
CA-3520-ST-CZ-000Steel / Clear Zinc / Without Holes
CA-3520-ST-NF-000Steel / No Finish / Without Holes
