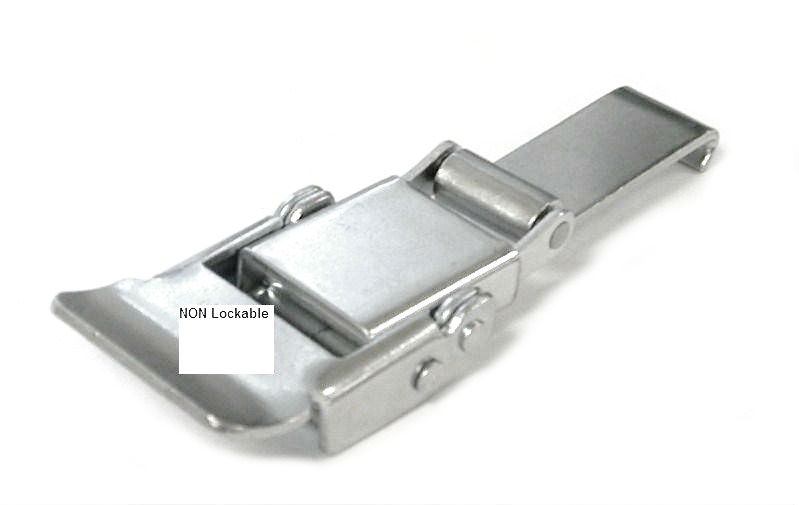

CA-3510X - Compression Spring Draw Latch with Hook - Tab Up

Compression Spring Draw Latch with Hook

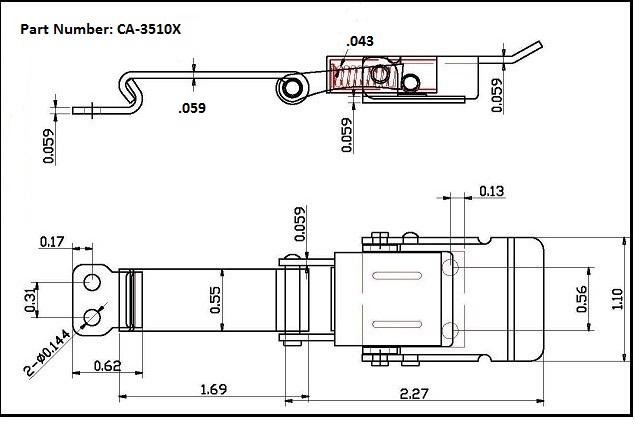

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3510X is manufactured from clear zinc plated steel or passivated stainless steel. This model allows for tension adjustment based on base/strike hole distance and has an ultimate strength rating of 600 Lbs., featuring a long hook. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberProduct Description
CA-3510X-ST-CZ-144Steel / Clear Zinc / Long Hook
CA-3510X-SS-CP-144Stainless / Passivated
