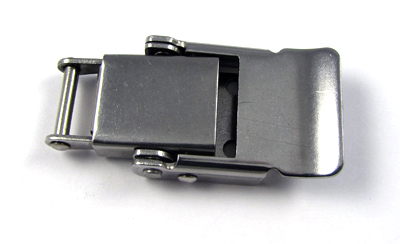

CA-3510 - Compression Spring Draw Latch - Tab Up

Compression Spring Draw Latch

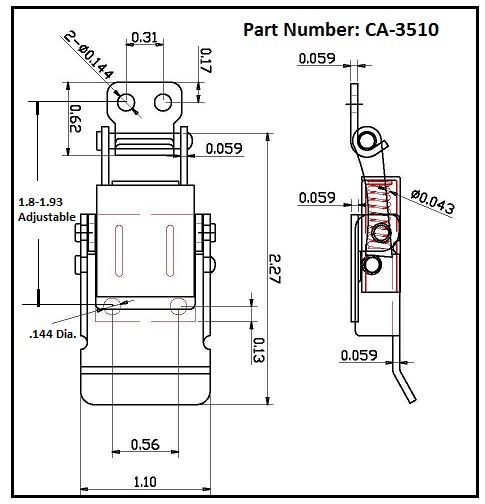

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-3510 is manufactured from steel and stainless steel in a variety of finishes including clear passivated, cadmium plated, and black oxide. This model features three high tension compression springs and allows for tension adjustment based on base/strike hole distance. Uses strike SK-3500 Please see component diagram below.

JBF National Part NumberMaterial / Finish
CA-3510-SS-CP-144Stainless / Clear Passivated
CA-3510-ST-CZ-144Steel / Clear Zinc
CA-3510-ST-CD-144Steel / Cadmium Plated
CA-3510-SS-EC-144Stainless / E. Coat
CA-3510 -ST-NF-144Steel / No Finish
CA-3510-SS-BO-144Stainless / Black Oxide
