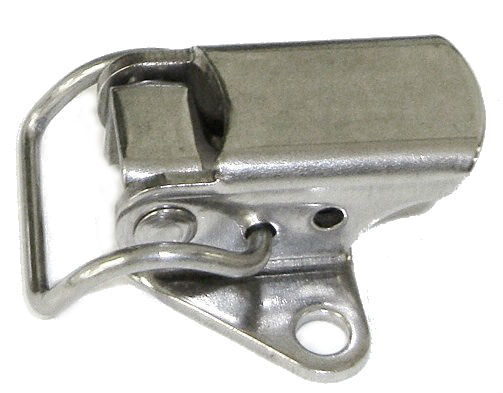

CA-2140 - Draw Latch with Curved Loop Bail

Draw Latch with Curved Loop Bail
Click to enlarge

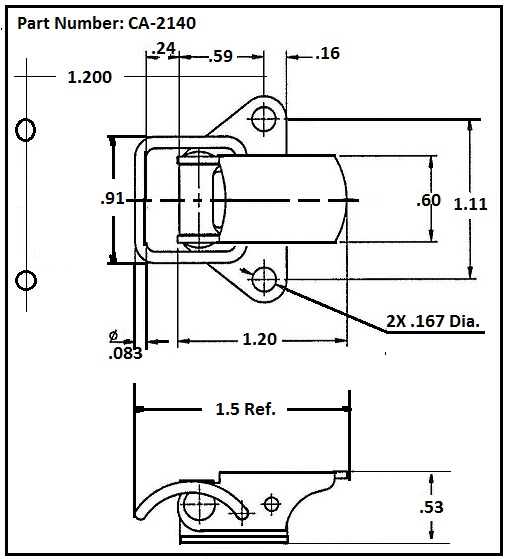

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2140 is manufactured from clear zinc plated steel, passivated stainless steel, or yellow chromate stainless steel. Uses strike SK-2140 Please see component diagram below.

JBF National Part NumberMaterial / Finish
CA-2140-SS-CP-170Stainless / Passivated
CA-2140-ST-CZ-170Steel / Clear Zinc
CA-2140-SS-YC-170Stainless / Yellow Chromate
