CA-2070 - Lockable Draw Latch with Straight Loop Bail

Lockable Draw Latch with Straight Loop Bail

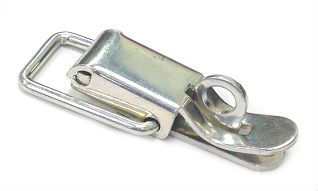

Click to enlarge

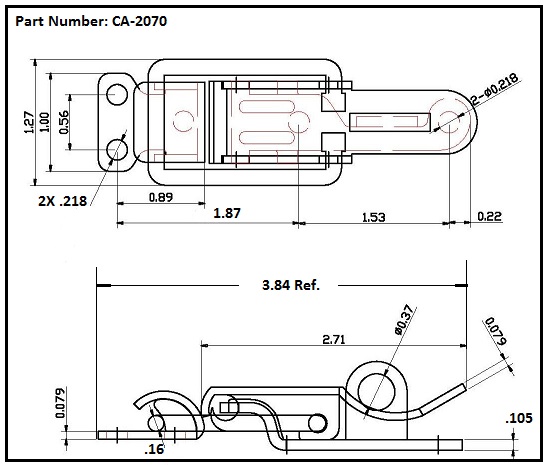

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This lockable latch is manufactured from clear zinc plated steel, passivated stainless steel, or plain finish aluminum. This model allows for tension adjustment based on latch/keeper hole distance. Uses strikes SK-2070 and SK-2110 Please see component diagram below.

JBF National Part NumberProduct Description
CA-2070-SS-CP-218Stainless / Passivated
CA-2070-ST-CZ-000Steel / Clear Zinc / Without Holes
CA-2070-SS-CP-000Stainless / Passivated / Without Holes
CA-2070-ST-CZ-218Steel / Clear Zinc
CA-2070-AL-NF-218Aluminum / Plain Finish
