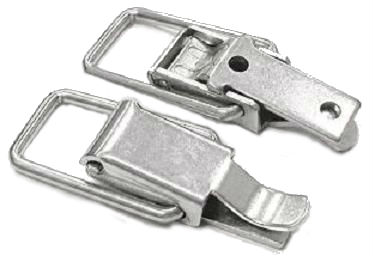

CA-2050 - Over-Center Draw Latch W/ Straight Loop Bail

Draw Latch W/ Straight Loop Bail

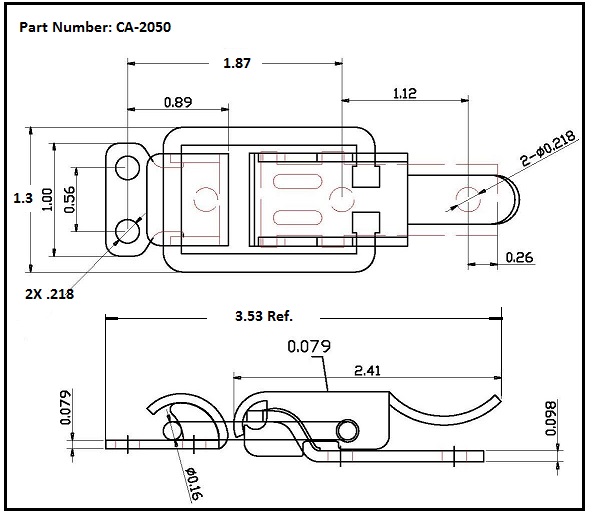

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2050 is manufactured from nickel plated or clear zinc plated steel, or clear passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance. Uses strike SK-2050 Please see component diagram below.

JBF National Part NumberMaterial / Finish
CA-2050-SS-CP-218Stainless / Clear Passivate
CA-2050-ST-CZ-218Steel / Clear Zinc
CA-2050-ST-NI-218Steel / Nickel
