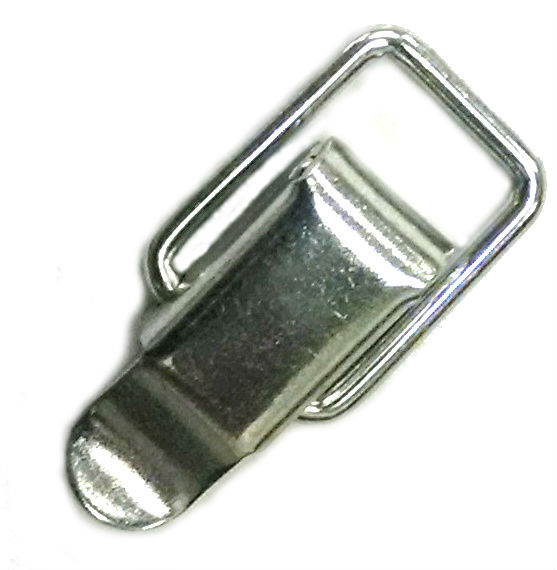

CA-2040 - Over-Center Draw Latch with Straight Loop Bail

Over-Center Draw Latch with Straight Loop Bail
Click to enlarge

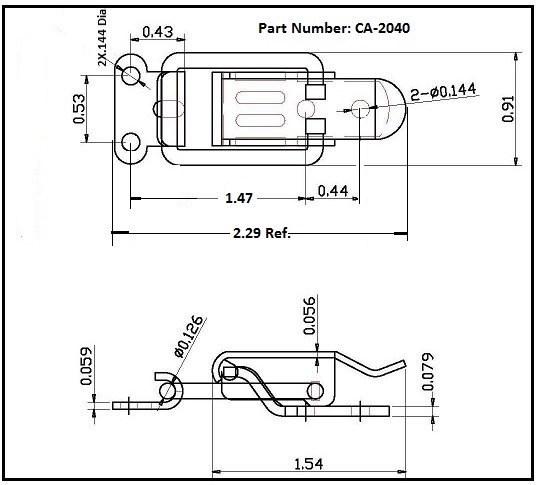

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2040 is manufactured from clear zinc plated steel, unfinished steel, or passivated stainless steel. Available with or without holes. Uses strike SK-2000 Please see component diagram below.

JBF National Part NumberProduct Description
CA-2040-SS-CP-144Stainless / Passivated
CA-2040-ST-CZ-000Steel / Clear Zinc / No Holes
CA-2040-ST-CZ-144Steel / Clear Zinc
CA-2040-SS-CP-3WPStainless / Passivated - Base has 3 Weld Projections
CA-2040-ST-NF-000Steel / No Finish
