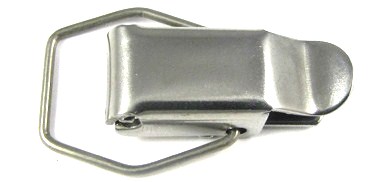

CA-2010 - Over-Center Draw Latch with Hexagonal Bail

Over-Center Draw Latch with Hexagonal Bail

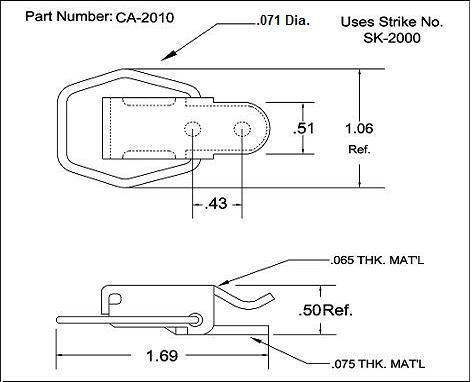

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-2010 is manufactured from clear zinc plated steel or passivated stainless steel. This model allows for tension adjustment based on latch/keeper hole distance.Uses strike SK-2000 Please see component diagram below.

JBF National Part NumberProduct Description
CA-2010-SS-CP-(.130 and .144)Stainless / Passivated both .130 and .144
CA-2010-ST-CZ-144Steel / Clear Zinc
