CA-1052 - Under-Center Lockable Latch

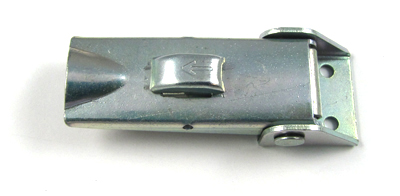

Lockable Under-Center Latch
Click to enlarge

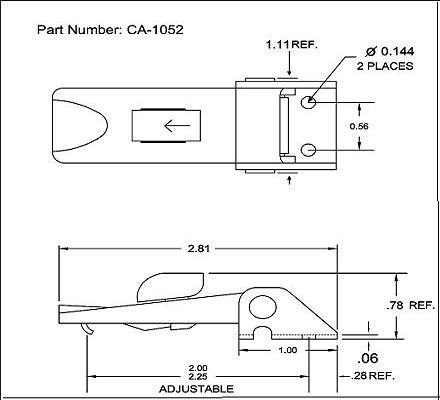

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This padlock ready latch is manufactured from either steel or passivated stainless steel. CA-1052 is available with or without a concealed base and features and overall pull strength of 200 Lbs. Uses strike SK-1051 Please see component diagram below.

JBF National Part NumberProduct Description
CA-1052X-SS-CP-144Stainless / Passivated / Concealed Base / Release Button
CA-1052-SS-CP-144Stainless / Exposed Base / Passivated / Release button
CA-1052-ST-CZ-144Steel / Clear Zinc / Exposed Base / Release Button
