CA-1051X - Under-Center Concealed Base Latch

Under-Center Latch

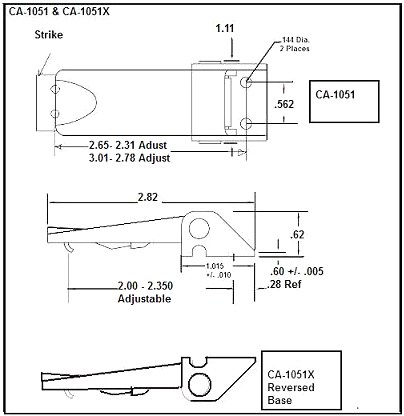

JBF National latches and catches are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. CA-1051X is manufactured from clear zinc, or zinc nickel plated steel, or passivated stainless steel. This model features 10-32 thread and an overall pull strength of 200 Lbs. CA-1051X features a concealed base. Uses strike SK-1051 Please see component diagram below.

JBF National Part NumberProduct Description
CA-1051X-ST-CZ-144Steel / Clear Zinc / Concealed BaseĀ
CA-1051X-ST-ZNI-144Steel / Zinc Nickel Plated / Concealed BaseĀ
CA-1051X-SS-CP-144Stainless / Clear Passivate / Concealed Base
