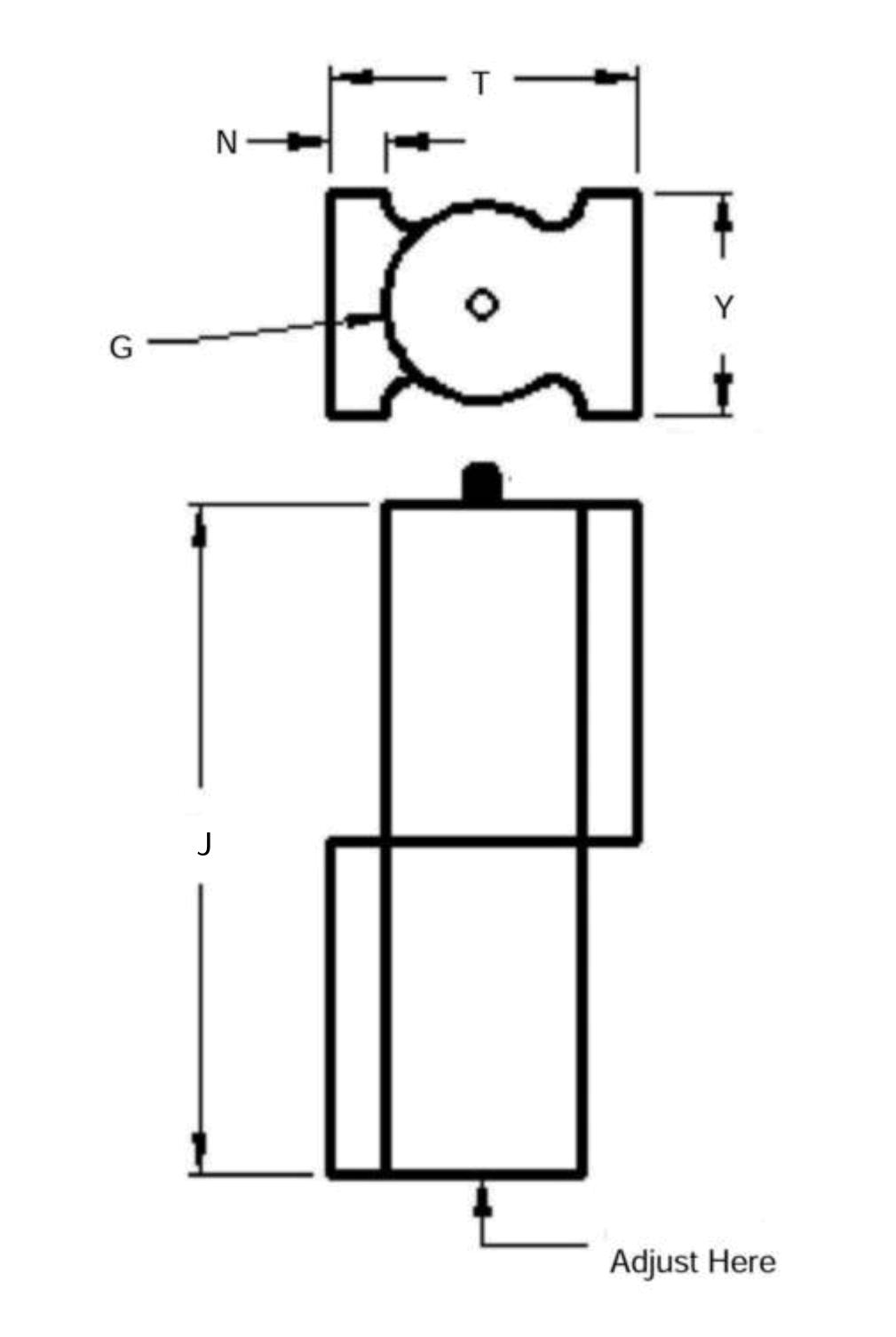

These barrel hinges from JBF National come manufactured from the highest quality steel and stainless steel components, and have been designed and tested for ultimate reliability. They are designed for permanent attachment via welding, yet allow for door or gate detachment as needed by way of the “lift off” function inherent to the barrel hinge design. Contact a JBF National sales engineer today for further information. Please see component diagram below.
| JBF National Part Number | N | Y | T | G | J | Weight | Capacity |
|---|---|---|---|---|---|---|---|
| 1GB-109 | 3/8" | 1.5 | 2-1/4 | 1.5 | 5 | 3.3 lbs | 800 lbs |
| 1GB-110 | 1/2" | 2 | 2-3/4 | 1.75 | 6 | 5.8 lbs | 1,200 lbs |
| 1GB-111 | 3/4" | 2.5 | 3-1/2 | 2 | 8 | 11.4 lbs | 2,000 lbs |
