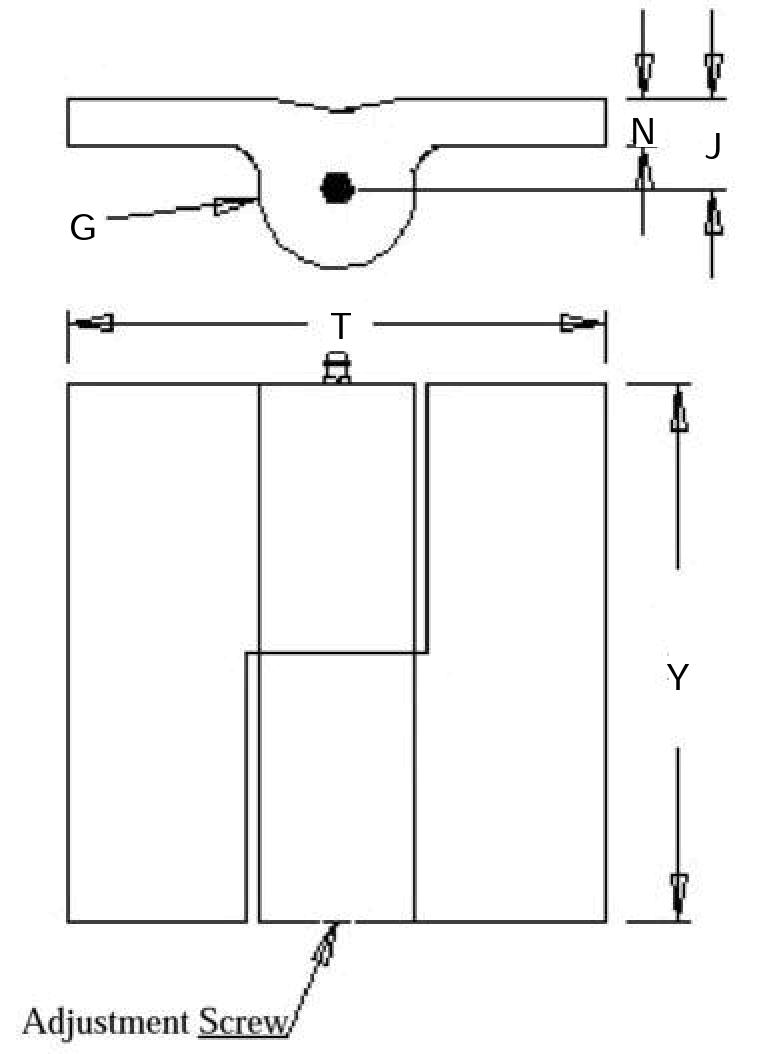

These adjustable hinges from JBF National come manufactured from the highest quality alloy steel, and have been designed and tested for ultimate reliability. With these adjustable hinges, costly door adjustments are obviated by its vertical movement capability, rendering door removal unnecessary. The flexibility of these hinges makes installation a cinch, and eliminates door sag. Contact a JBF National sales engineer today for further information. Please see component diagram below.
| JBF National Part Number | N | Y | T | G | J | Weight | Capacity |
|---|---|---|---|---|---|---|---|
| 1AG-100 | 3/8" | 5 | 4 | 1-1/2 | 7/8 | 4.7 lbs | 1,050 lbs |
| 1AG-101 | 1/2" | 6 | 6 | 1-3/4 | 1 | 9 lbs | 2,200 lbs |
| 1AG-102 | 1/2" | 6 | 6 | 2 | 1-1/8 | 10 lbs | 3,200 lbs |
| 1AG-103 | 1/2" | 7.5 | 6 | 2 | 1-1/8 | 12.5 lbs | 4,000 lbs |
| 1AG-104 | 3/4" | 8 | 8 | 2 | 1-1/8 | 21 lbs | 5,000 lbs |
| 1AG-105 | 1" | 10 | 8 | 2-1/2 | 1-3/8 | 37 lbs | 7,000 lbs |
| 1AG-106 | 1-1/4" | 12 | 12 | 4 | 2-1/4 | 90 lbs | 11,000 lbs |
| 1AG-107 | 1-1/4" | 16 | 16 | 4 | 2-1/4 | 140 lbs | 15,000 lbs |
| 1AG-108 | 1-3/4" | 16 | 16 | 5 | 2-3/4 | 190 lbs | 25,000 lbs |
