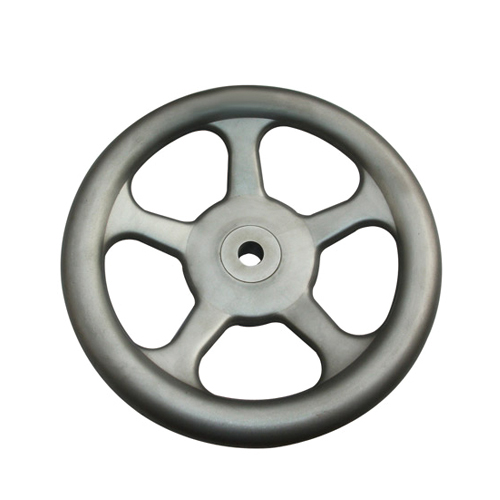

This stainless steel handhweel from JBF National is manufactured from the highest quality matt finished stainless steel. This handwheel comes with either a round bore or square mounting hole, and a handle-less design that allows for space saving maximization. Please see component diagram below.
JBF P/N Bore | JBF P/N Square Bore | N | Y | T | J | G |
---|---|---|---|---|---|---|
1HW-116B | 1HW-116S | 160 | 12 | 12 | 30 | 20 |
1HW-117B | 1HW-117S | 200 | 14 | 14 | 40 | 24 |
1HW-118B | 1HW-118S | 250 | 17 | 17 | 45 | 28 |
