Plastic Three Spoke Offset Handwheel W/ Revolving Handle

Plastic Three Spoke Offset Handwheel with Revolving Handle
Plastic Three Spoke Offset Handwheel with Revolving Handle
Plastic Three Spoke Offset Handwheel with Revolving Handle

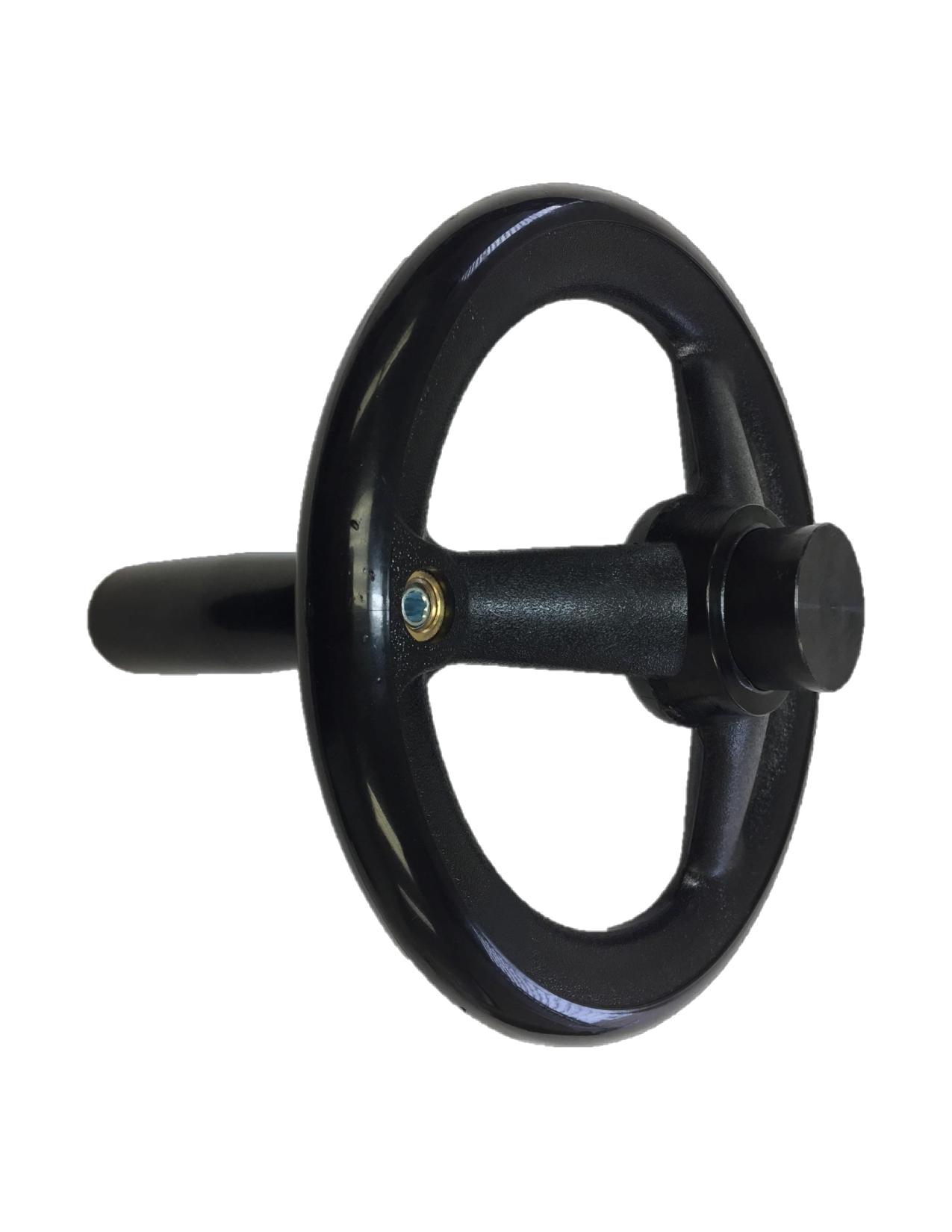

These plastic three spoke offset (dished) handwheels are manufactured from the highest quality nylon and feature a buffed outer rim for a sleek look. For added speed and accuracy these handwheels feature a revolving handle to make multi-revolution adjustments quick and easy. The revolving handle is removable by a simple unscrewing action from the reverse side, in cases where space is limited. Center plugs for sizes 3-5 1/2 are aluminum, with cast iron for the larger diameters. Variety of sizes available. Please see component diagram below.

P/NApproximate Dia. (In.) (A)Plug Dia. (In.) (B)Plug Ht. (In.) (C)
HW-8000-RH30.941.02
HW-8001-RH51.251.18
HW-8002-RH5.51.321.37
HW-8003-RH6.251.411.41
HW-8004-RH81.511.65
HW-8005-RH101.731.57
