Finished Straight Handwheels W/O Handle

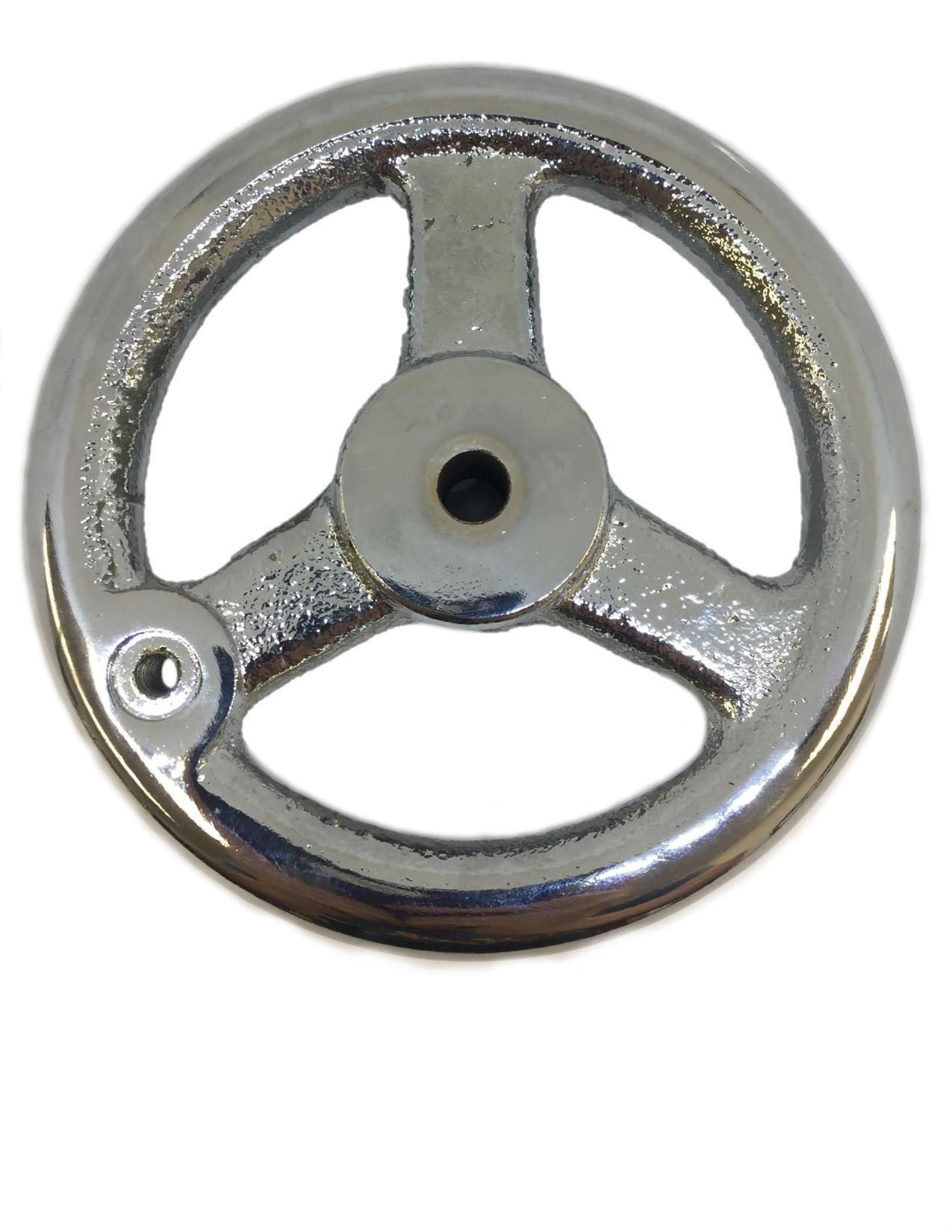

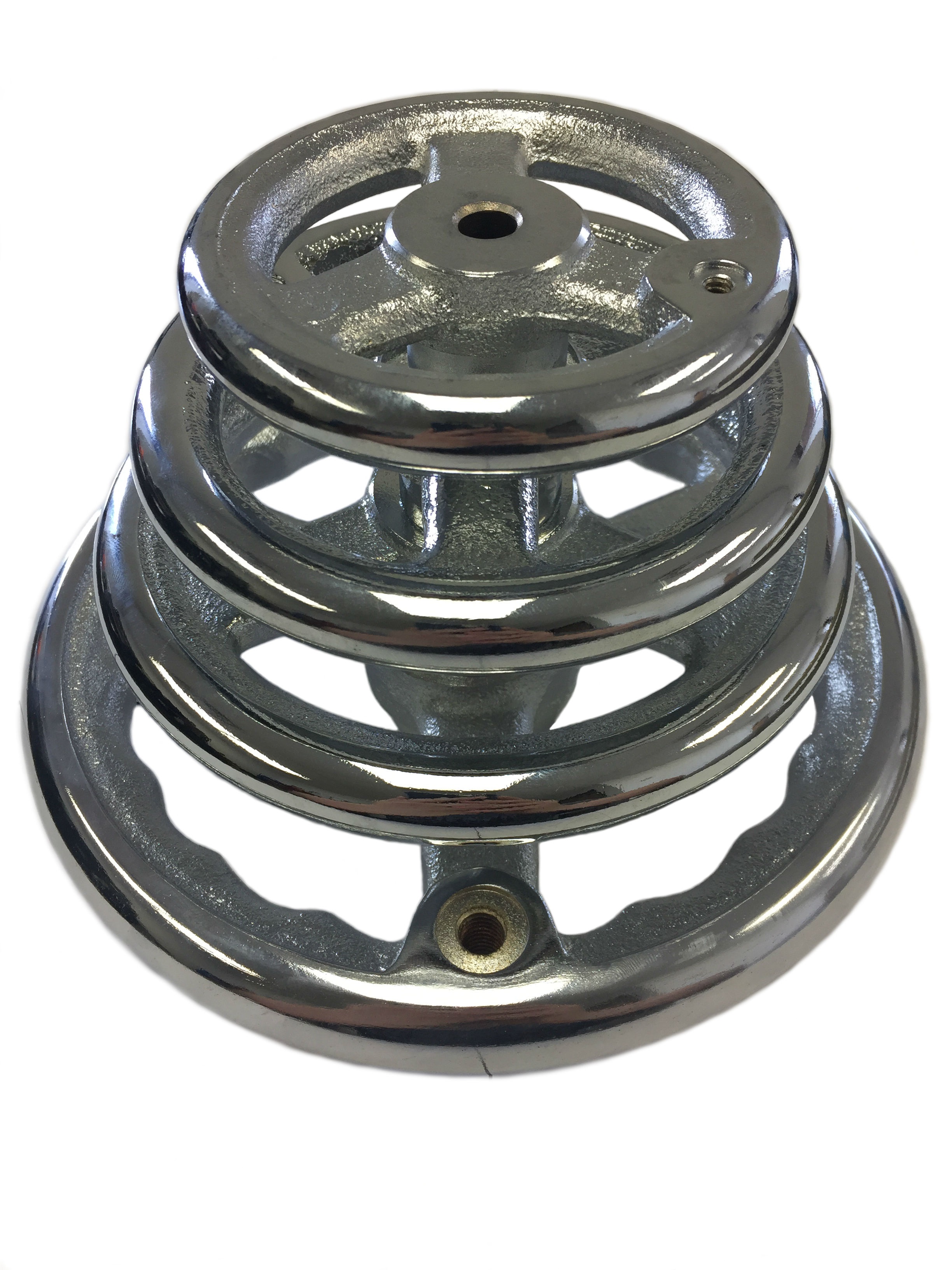

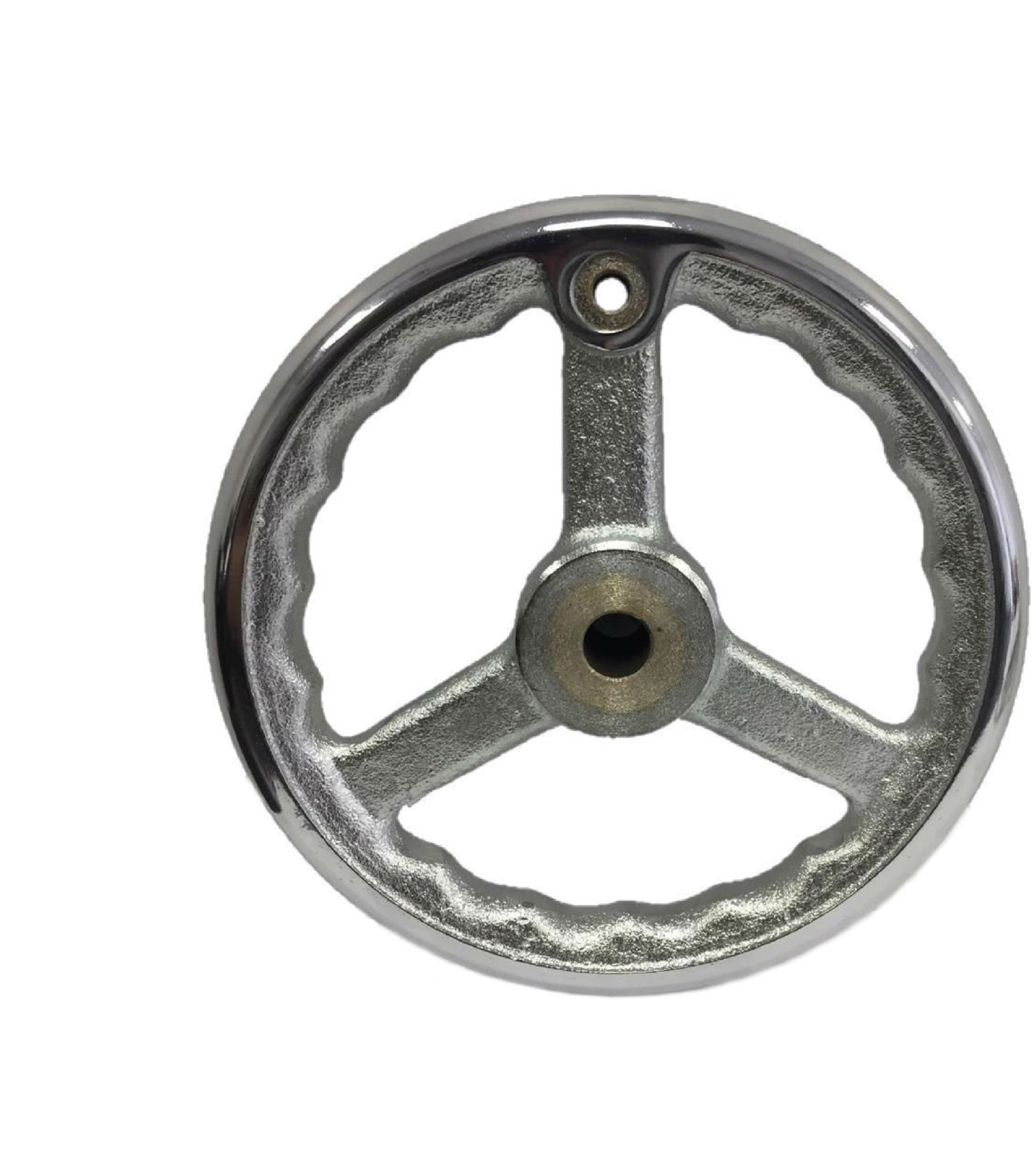

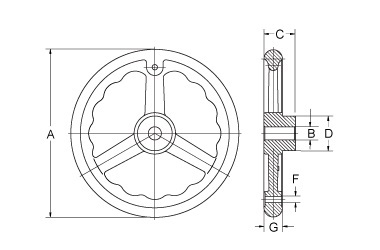

JBF National finished straight handwheels are manufactured from the highest quality fine grain cast iron and feature a chorme plated and polished finish. Larger diameter models feature finger grips around the inner rim for maximum grip. Available in a variety of sizes. Please see component diagram below.
| P/N | Dia (In.) (A) | Hub Dia. (In.) (D) | Rim Thickness (G) | Overall Thickness (C) | Handle Thread Size (F) | Bore Size (B) |
|---|---|---|---|---|---|---|
| FCIHW-3-STR | 3 | 1.1 | 0.5 | 0.9 | 10-24 | 3/8 |
| FCIHW-4-STR | 4 | 1.2 | 0.6 | 1 | 10-24 | 3/8 |
| FCIHW-5-STR | 5 | 1.4 | 0.6 | 1.1 | 1/4-20 | 3/8 |
| FCIHW-6-STR | 6 | 1.5 | 0.7 | 1.3 | 5/16-18 | 1/2 |
| FCIHW-8-STR | 8 | 1.8 | 0.8 | 1.5 | 3/8-16 | 5/8 |
| FCIHW-10-STR | 10 | 2 | 1 | 1.7 | 3/8-16 | 5/8 |
| FCIHW-12-STR | 12 | 2.4 | 1.1 | 1.9 | 1/2-13 | 3/4 |
