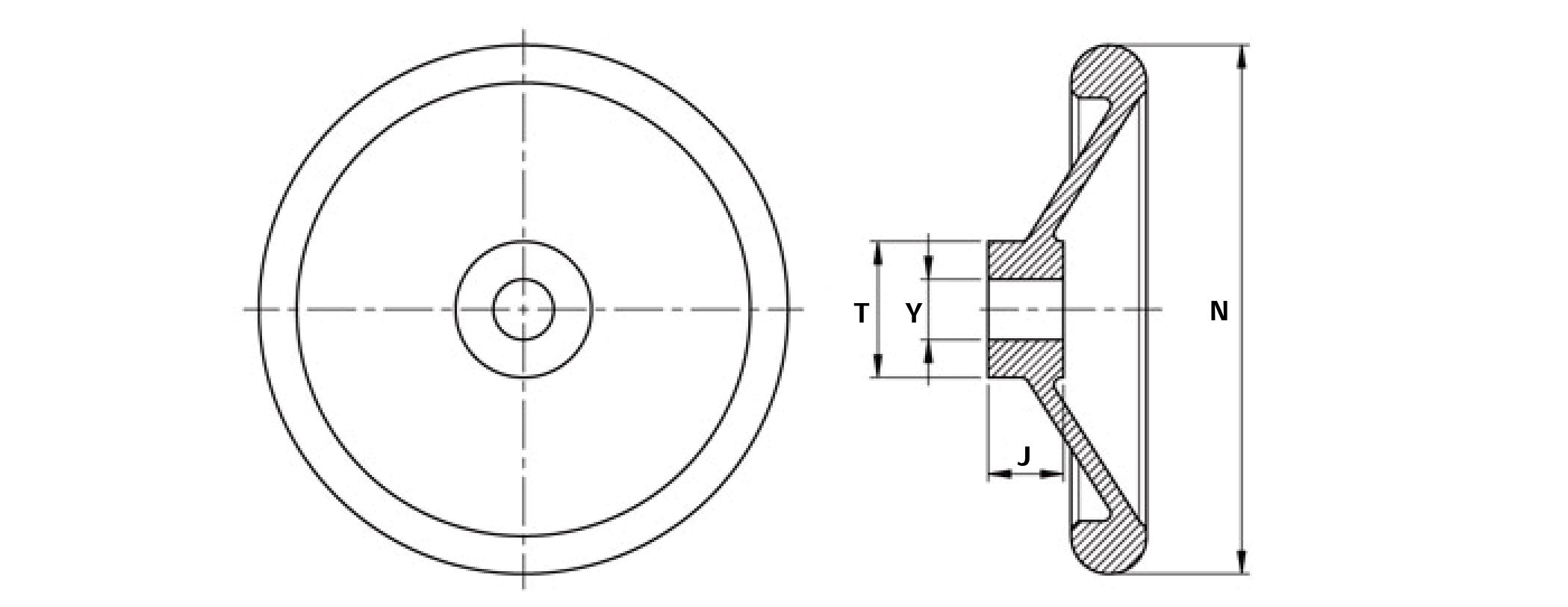

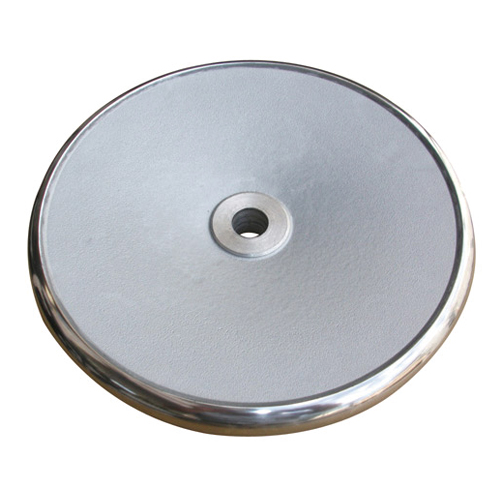

This handle-less handwheel from JBF National is made from the highest quality aluminum and has been designed and tested for ultimate reliability and durability. This handwheel features a plain aluminum center disc, a polished outer rim, and a handle-less design that allows for space saving maximization. Various diameters and bore sizes available. Please see component diagram below.
JBF P/N | N | Y | T | J |
---|---|---|---|---|
1HW-100 | 80 | 10 | 26 | 16 |
1HW-101 | 100 | 10 | 28 | 17 |
1HW-102 | 125 | 12 | 31 | 18 |
1HW-103 | 160 | 14 | 36 | 20 |
1HW-104 | 200 | 18 | 42 | 24 |
1HW-105 | 250 | 22 | 48 | 28 |
1HW-106 | 315 | 26 | 56 | 33 |
1HW-107 | 400 | 30 | 65 | 38 |
