Solid Duroplast Handwheel with Revolving Handle

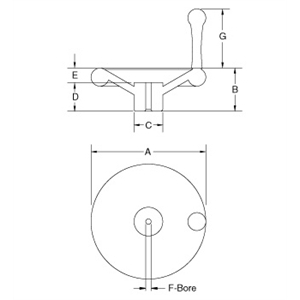

This solid Duroplast handwheel from JBF National comes in a highly polished finish that is pleasing to the eye and features a solid steel black oxide coated hub for ultimate durability. To ensure that the continuous rotating action of this wheel provides the highest level of grip comfort, it comes with a phenolic revolving handle. Customizable set screws, keyways, and bore sizes available upon request. Please see component diagram below.
| JBF National Part Number | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 1SDHW-1105 | 3.94 | 1.69 | 1.1 | 1.45 | 0.59 | blank | 1.97 |
| 2SDHW-1106 | 4.92 | 1.77 | 1.26 | 1.57 | 0.71 | blank | 2.56 |
| 3SDHW-1107 | 6.3 | 1.89 | 1.42 | 1.57 | 0.78 | blank | 2.56 |
| 4SDHW-1108 | 7.87 | 2.28 | 1.57 | 1.69 | 0.78 | blank | 3.15 |
