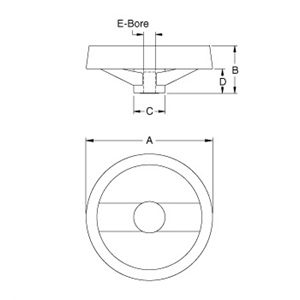

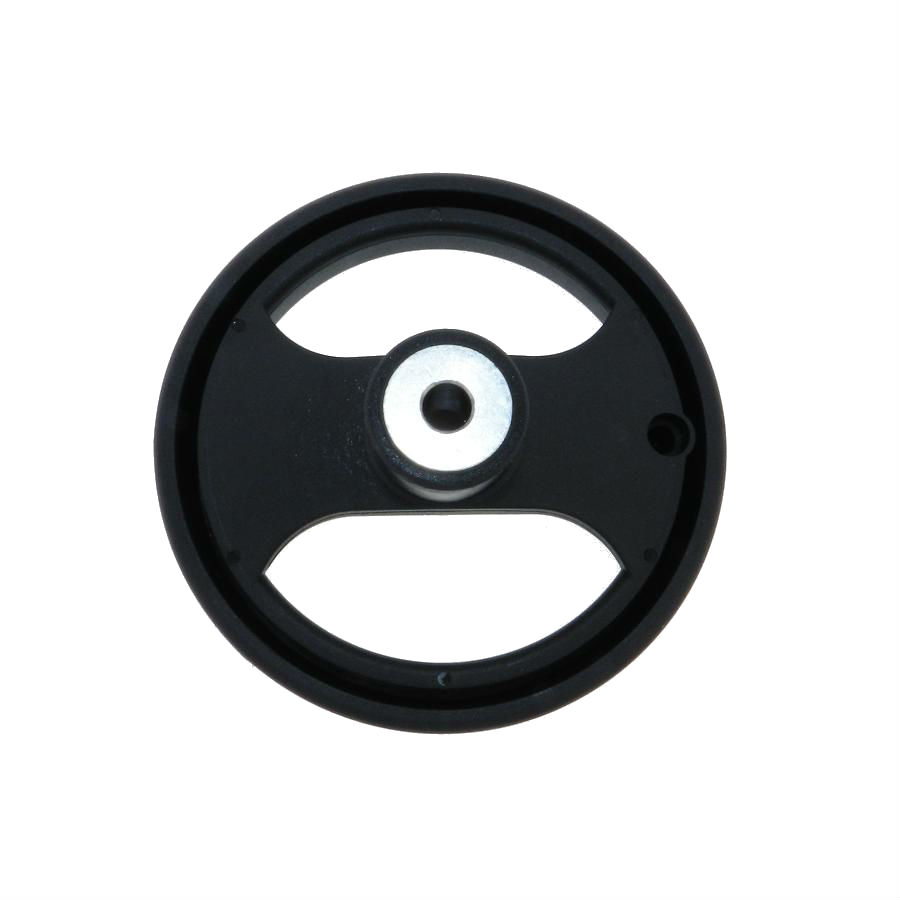

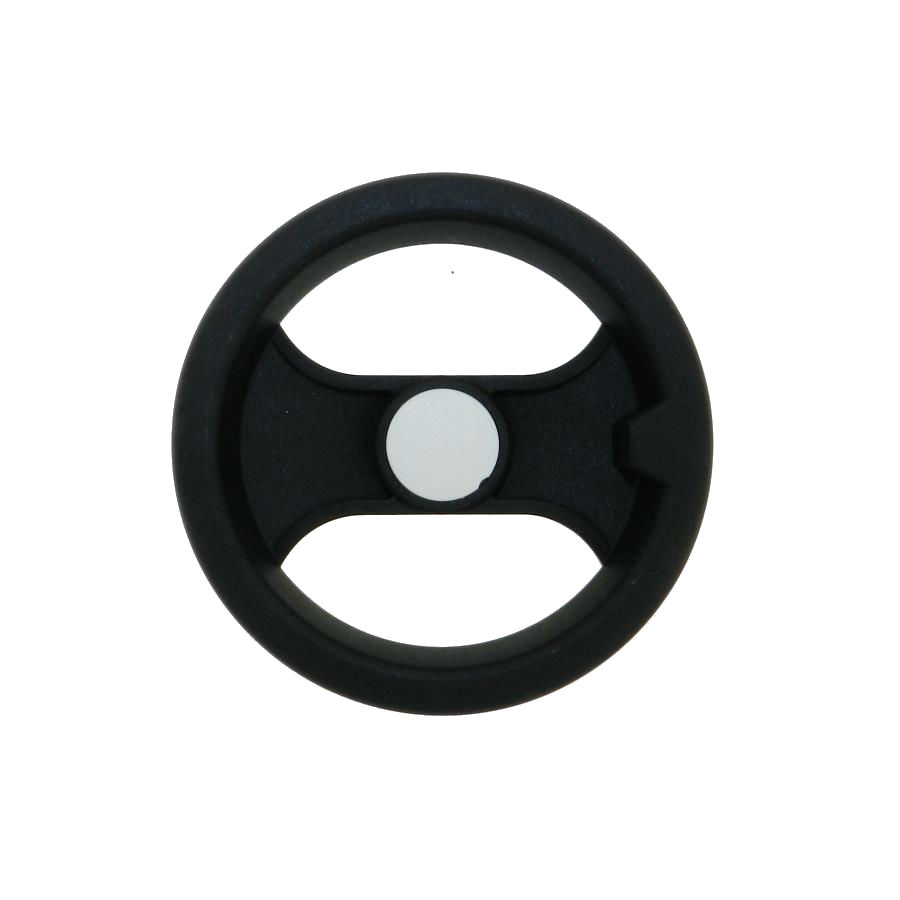

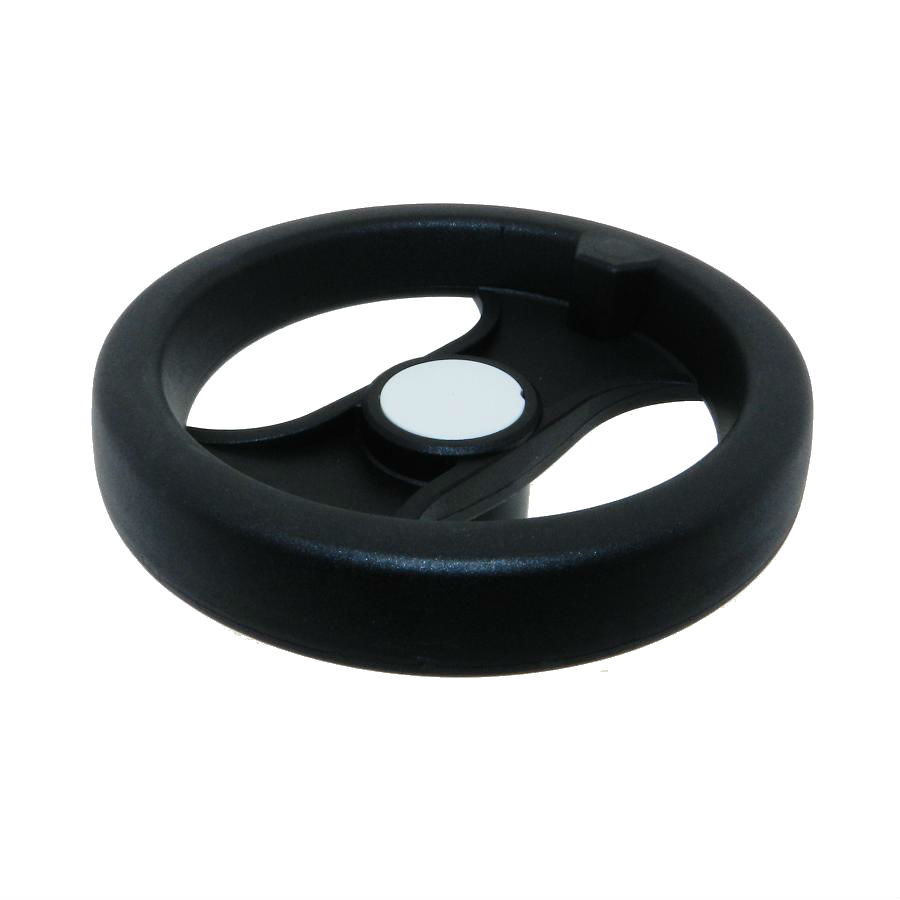

This Euro style handwheel from JBF National which comes manufactured from ultra-tough nylon with a matte black finish, is strong enough for just about any application. Due to its nylon construction, this handwheel is heat resistant up to 300 degress Fahrenheit. The handle-less design allows for space saving maximization and through center hand grip to make minute adjustments a cinch. Please see component diagram below.
JBF National Part Number | A | B | C | D | E-Bore |
---|---|---|---|---|---|
1ESHW-1093 | 3.15 | 1.34 | 0.95 | 0.79 | 0.313 |
2ESHW-1094 | 3.94 | 1.65 | 1.1 | 1.02 | 0.375 |
3ESHW-1095 | 5.12 | 1.97 | 1.26 | 1.18 | 0.375 |
4ESHW-1096 | 6.46 | 2.2 | 1.58 | 1.25 | 0.5 |
5ESHW-1097 | 7.88 | 2.4 | 1.97 | 1.3 | 0.625 |
6ESHW-1098 | 10.04 | 2.8 | 2.2 | 1.54 | 0.625 |
