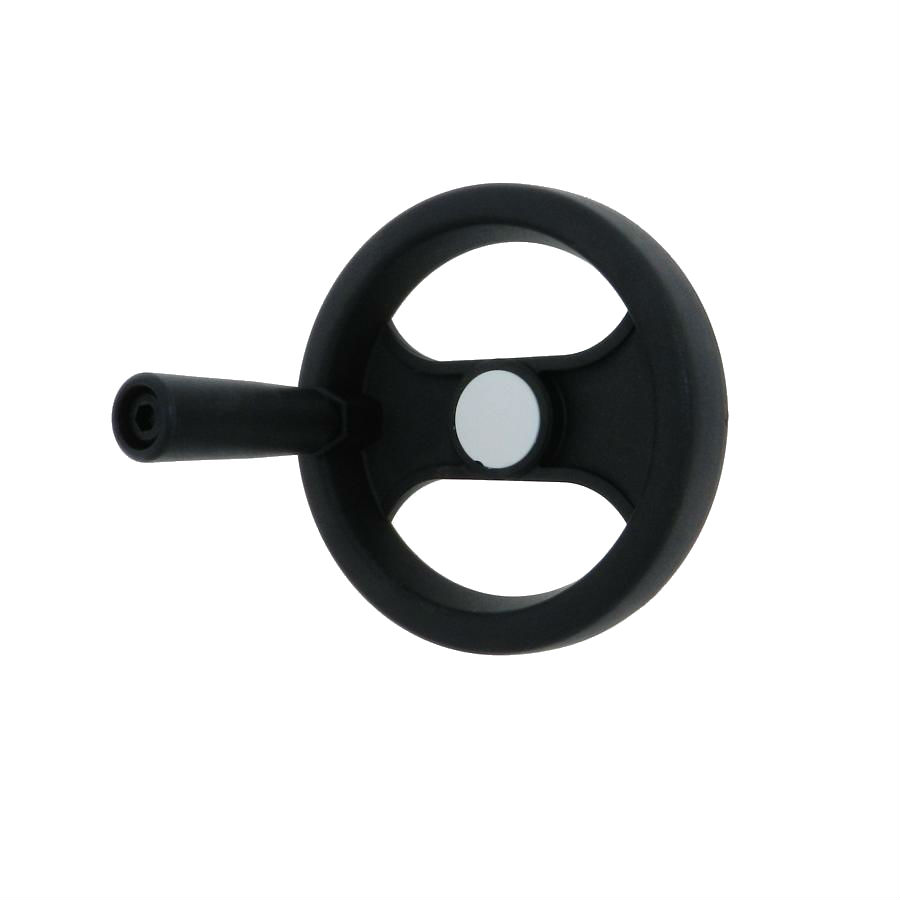

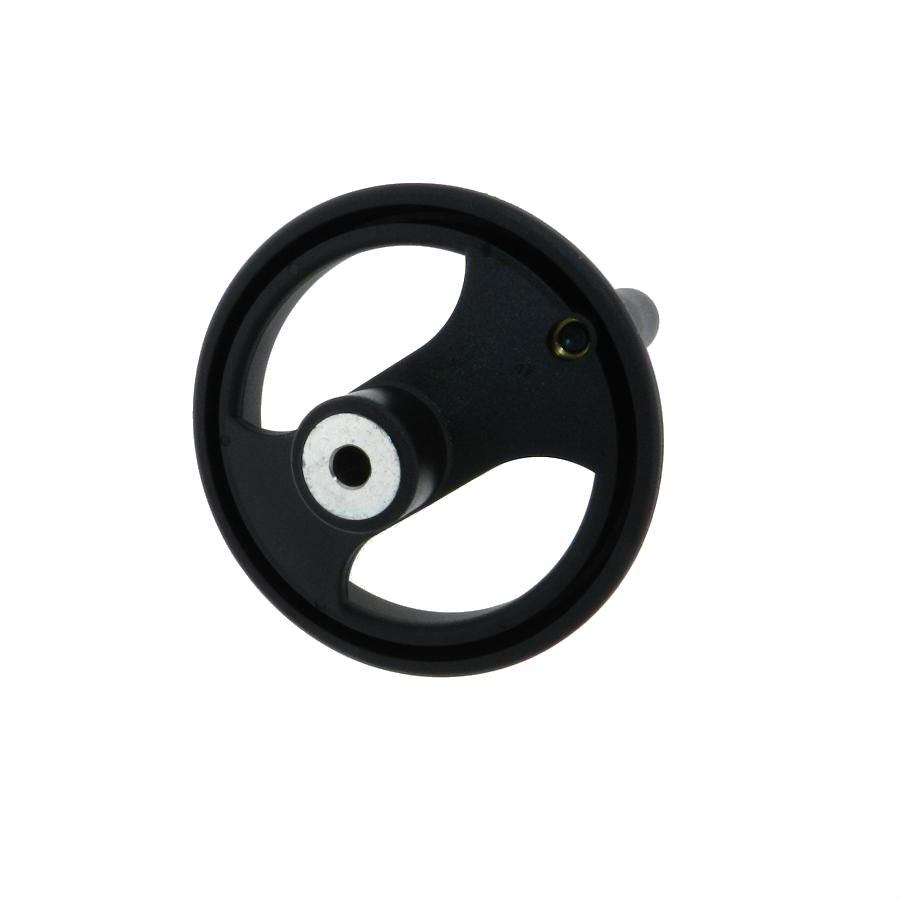

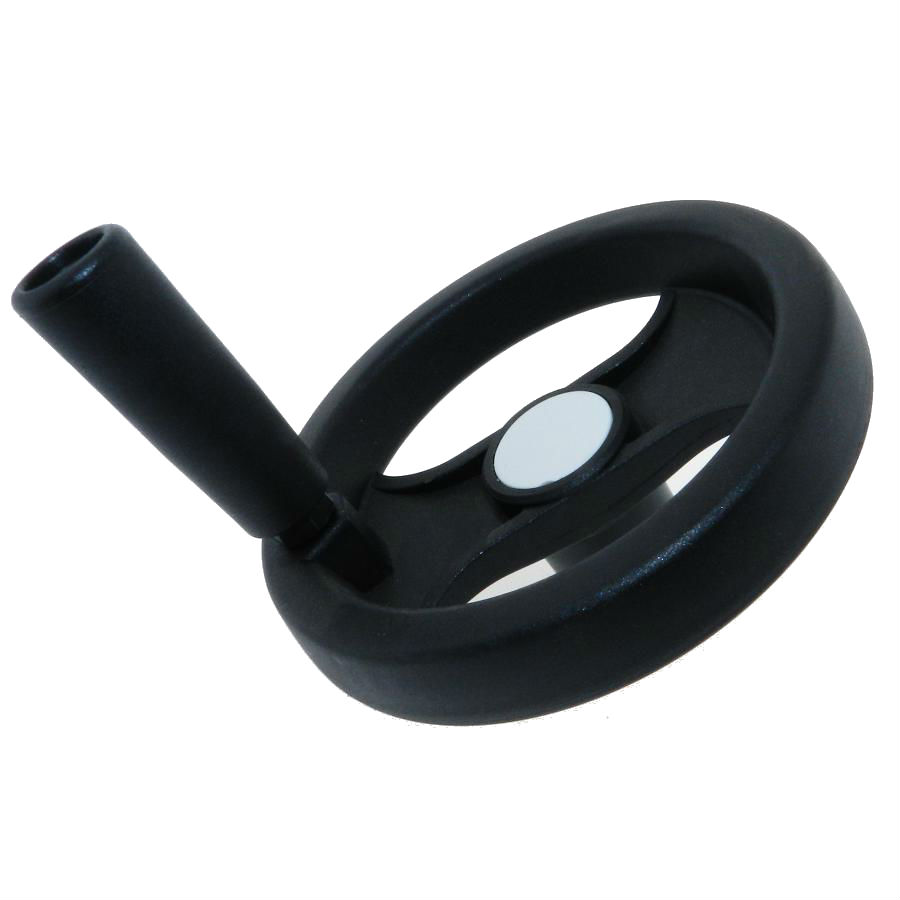

Nylon Euro Style Handwheel with Revolving Handle

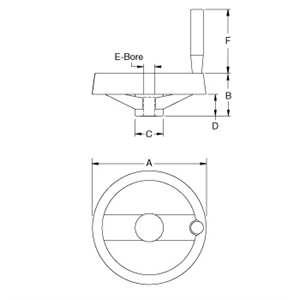

This Euro style handwheel from JBF National which comes manufactured from ultra-tough nylon with a matte black finish, is strong enough for just about any application. Due to its nylon construction, this handwheel is heat resistant up to 300 degress Fahrenheit. To ensure that the continuous rotating action of the wheel provides the operator with the highest level of grip comfort, it comes with a high quality phenolic revolving handle. Customizable set screws, keyways, and bore sizes available upon request. Please see component diagram below.

JBF National Part NumberABCDEF
1ESHW-10873.151.340.950.790.3132.2
2ESHW-10883.941.651.11.020.3752.2
3ESHW-10895.121.971.261.180.3752.6
4ESHW-10906.462.21.581.250.52.99
5ESHW-10917.882.42.21.540.6252.99
6ESHW-109210.042.82.21.540.6253.62
