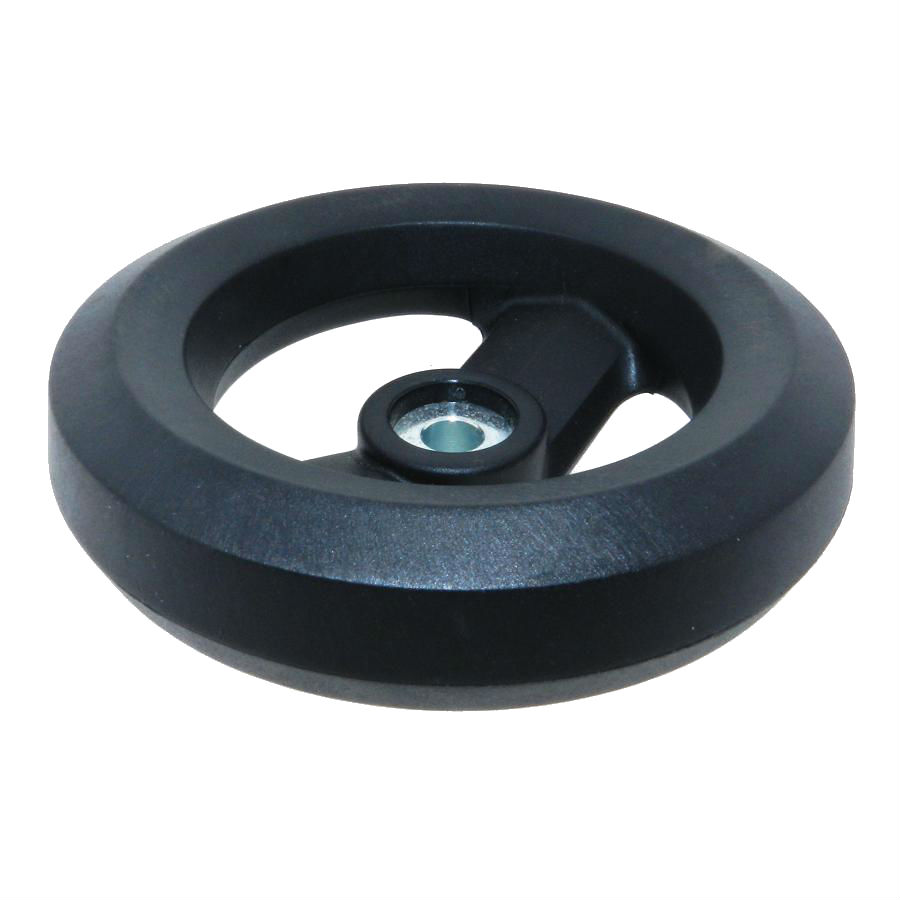

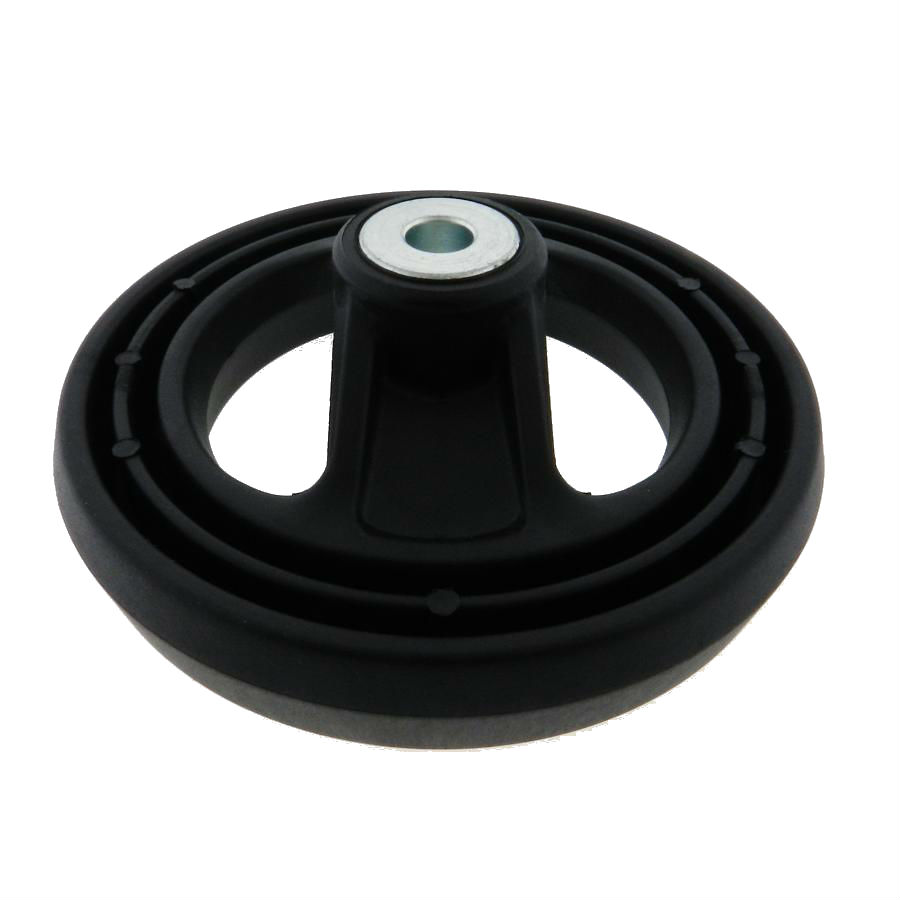

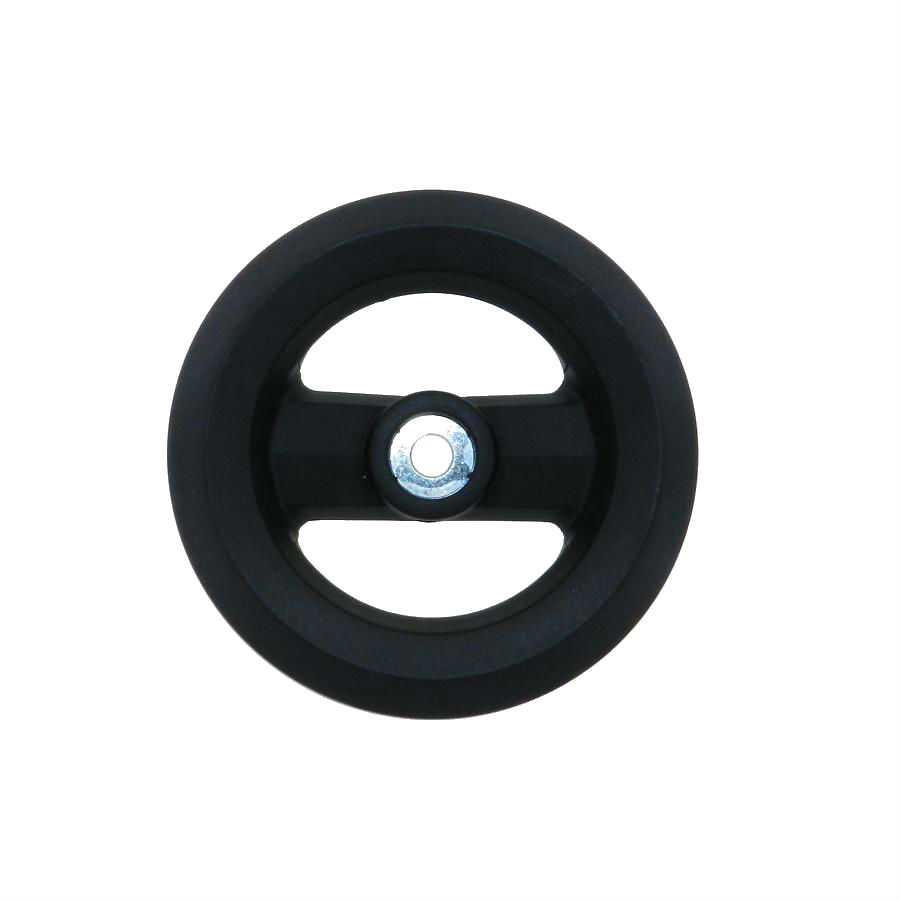

This 2 spoke handwheel from JBF National, is manufactured from ultra-tough nylon with a matte black finish, features a molded in zinc plated steel hub, and is strong enough for just about any application. Its ergonomic design ensures a positive and comfortable grip even in oily conditions, and due to its nylon construction, this handwheel is heat resistant up to 230 degress Fahrenheit. The handle-less design allows for space saving maximization and through center hand grip to make minute adjustments a cinch. Please see component diagram below.

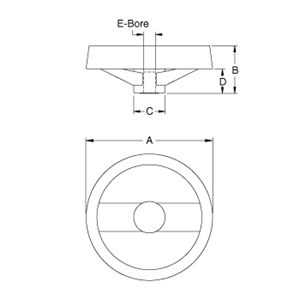

JBF National Part Number | A | B | C | D | E-Bore | |
---|---|---|---|---|---|---|
1PSH-1078 | 3.94 | 1.81 | 1.26 | 0.86 | 0.39 | |
2PSH-1079 | 4.96 | 1.81 | 1.26 | 0.86 | 0.39 | |
3PSH-1080 | 6.3 | 1.85 | 1.34 | 0.86 | 0.39 | |
4PSH-1081 | 7.87 | 2.44 | 1.97 | 1.34 | 0.39 |
