2 Spoke Handwheel with Revolving Handle

2 Spoke Handwheel with Revolving Handle
2 Spoke Handwheel with Revolving Handle
 2 Spoke Handwheel with Revolving Handle

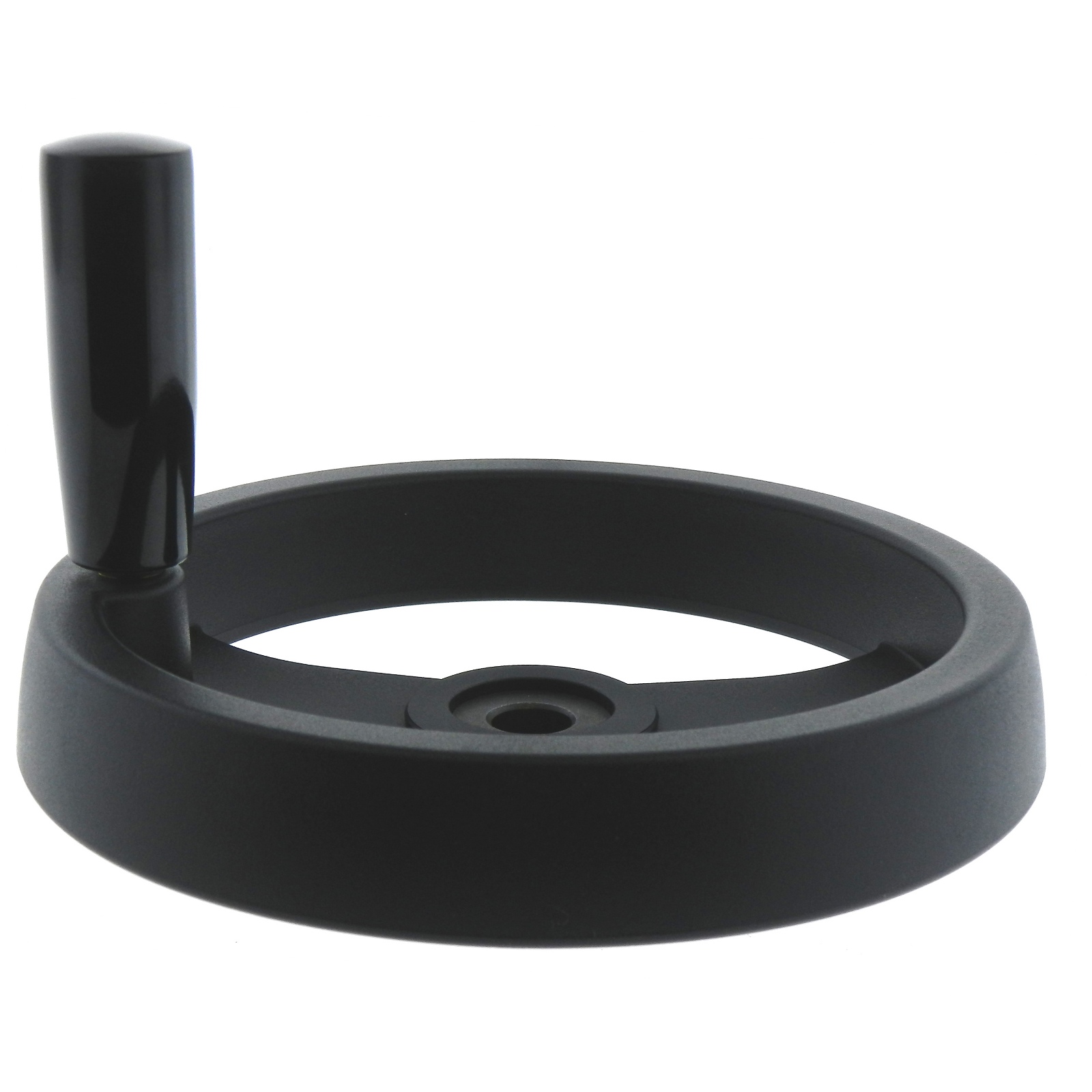

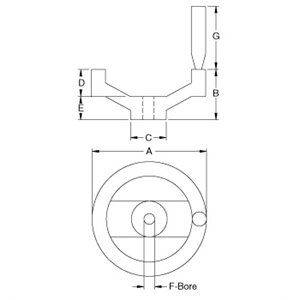

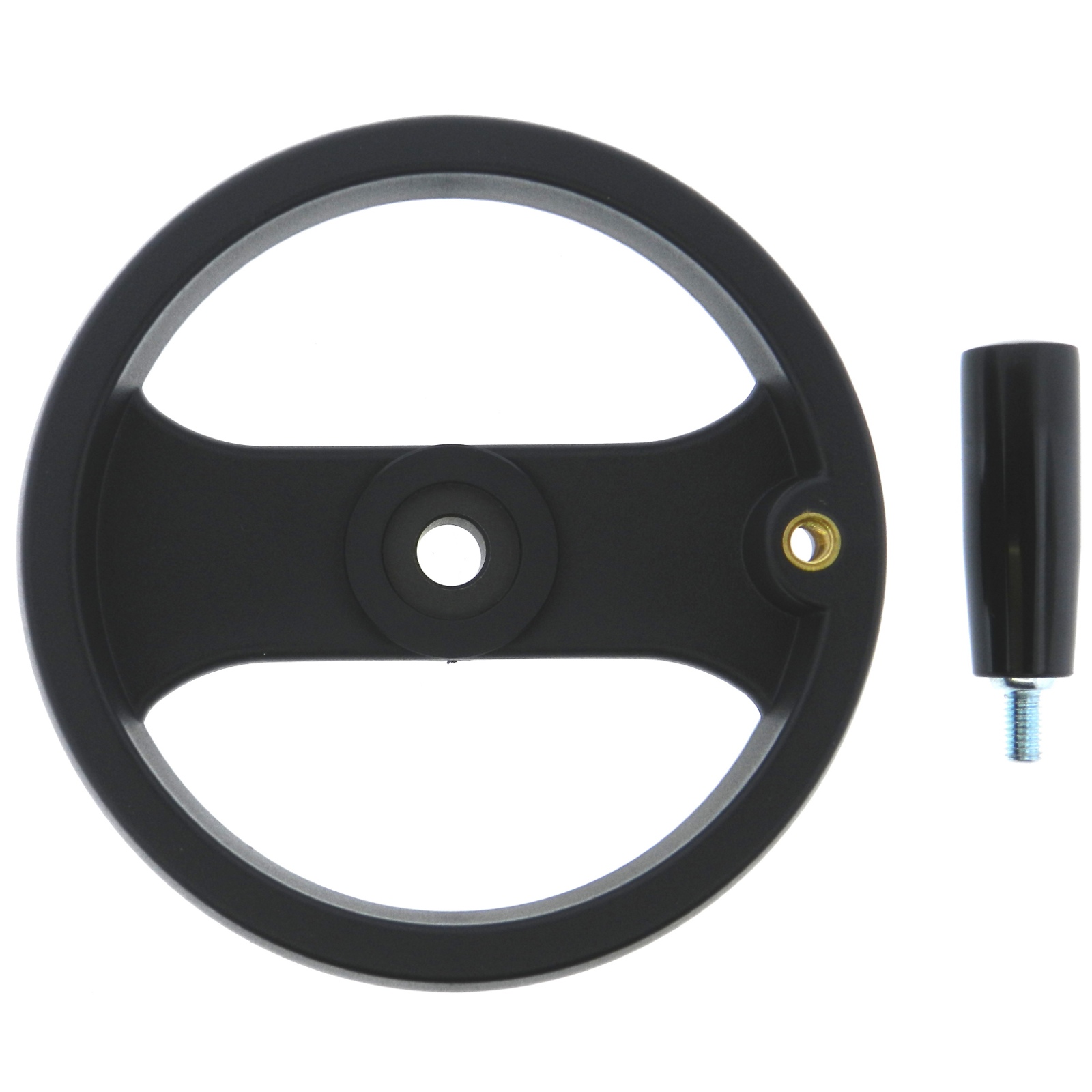

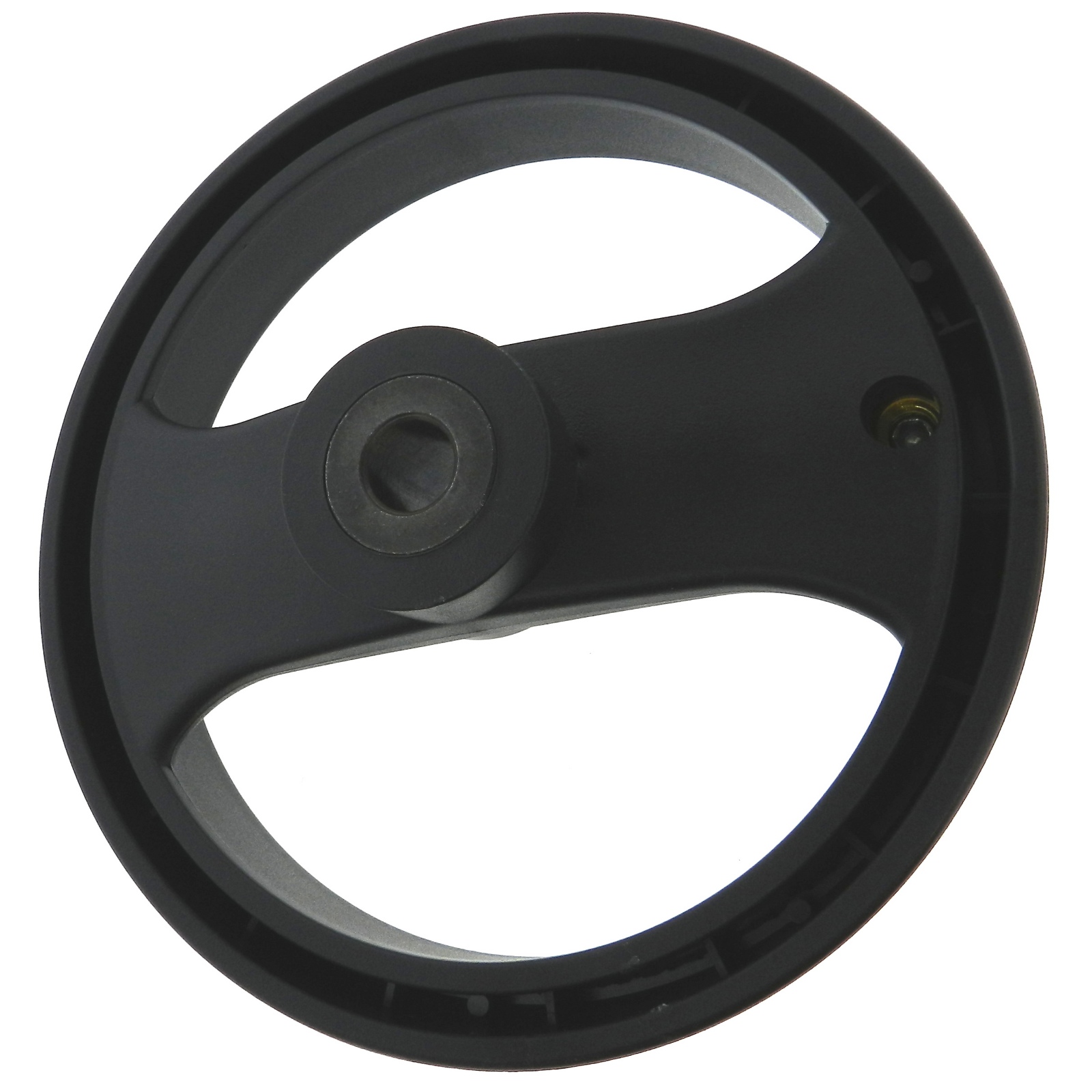

Manufactured from the highest quality polypropylene, this 2 spoke thermoplastic handwheel from JBF National comes with a satin black finish for a sleek look. To ensure that the wheel's continuous rotating action provides the operator with the highest level of grip and comfort, this handwheel features a high quality phenolic revolving handle. A high quality steel hub that protrudes beyond the plastic face makes up this handwheel's center to make sure that it, and not the plastic takes the brunt of the retention forces. Please see component diagram below.

JBF National Part NumberABCDEF - BoreG
1PSH-10673.97"1.46".984".780".748"3/8"1.97"
2PSH-10686.33"2.01"1.57".984"1.14"1/2"2.56"
3PSH-10697.91"2.40"1.97"1.10"1.38"5/8"3.15"
