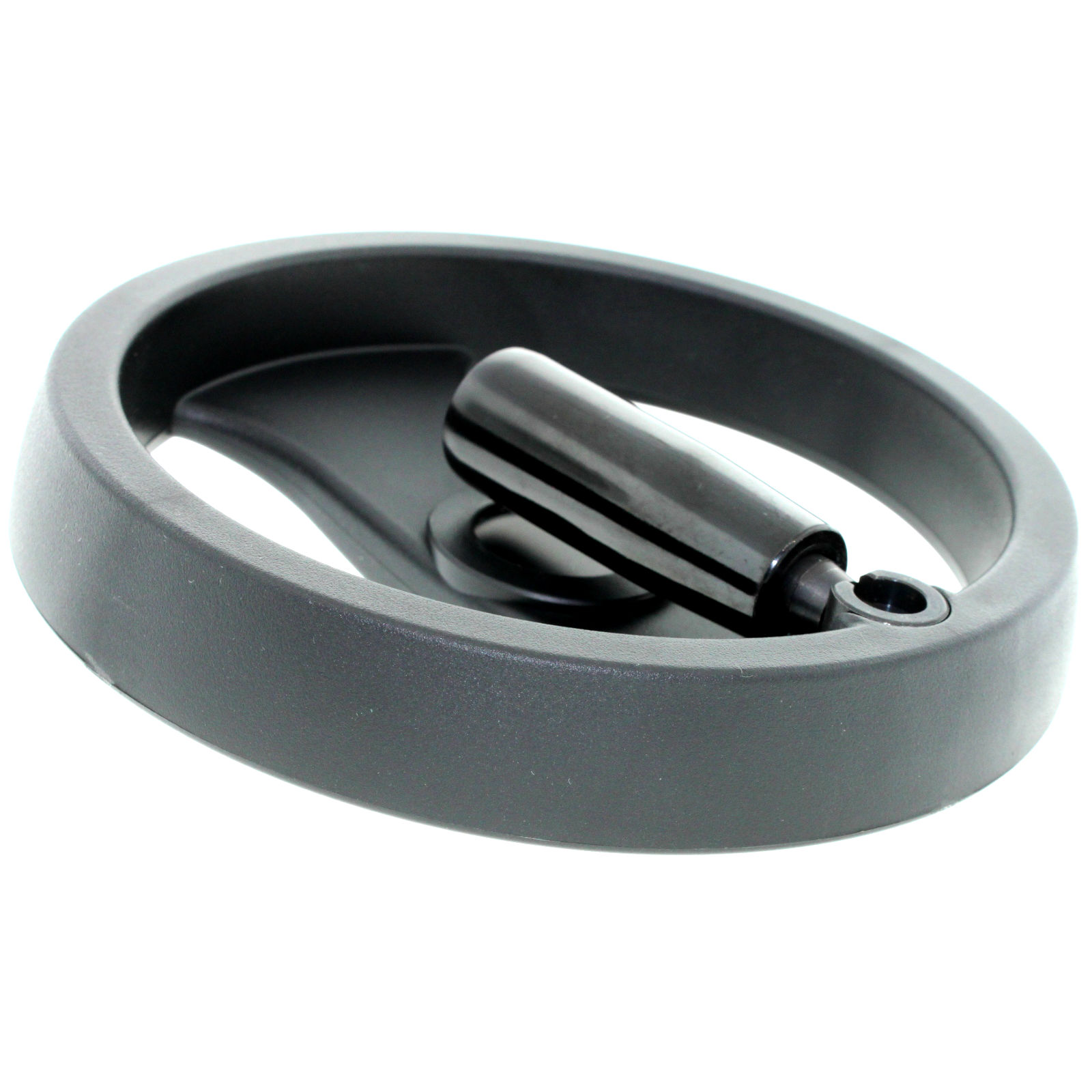

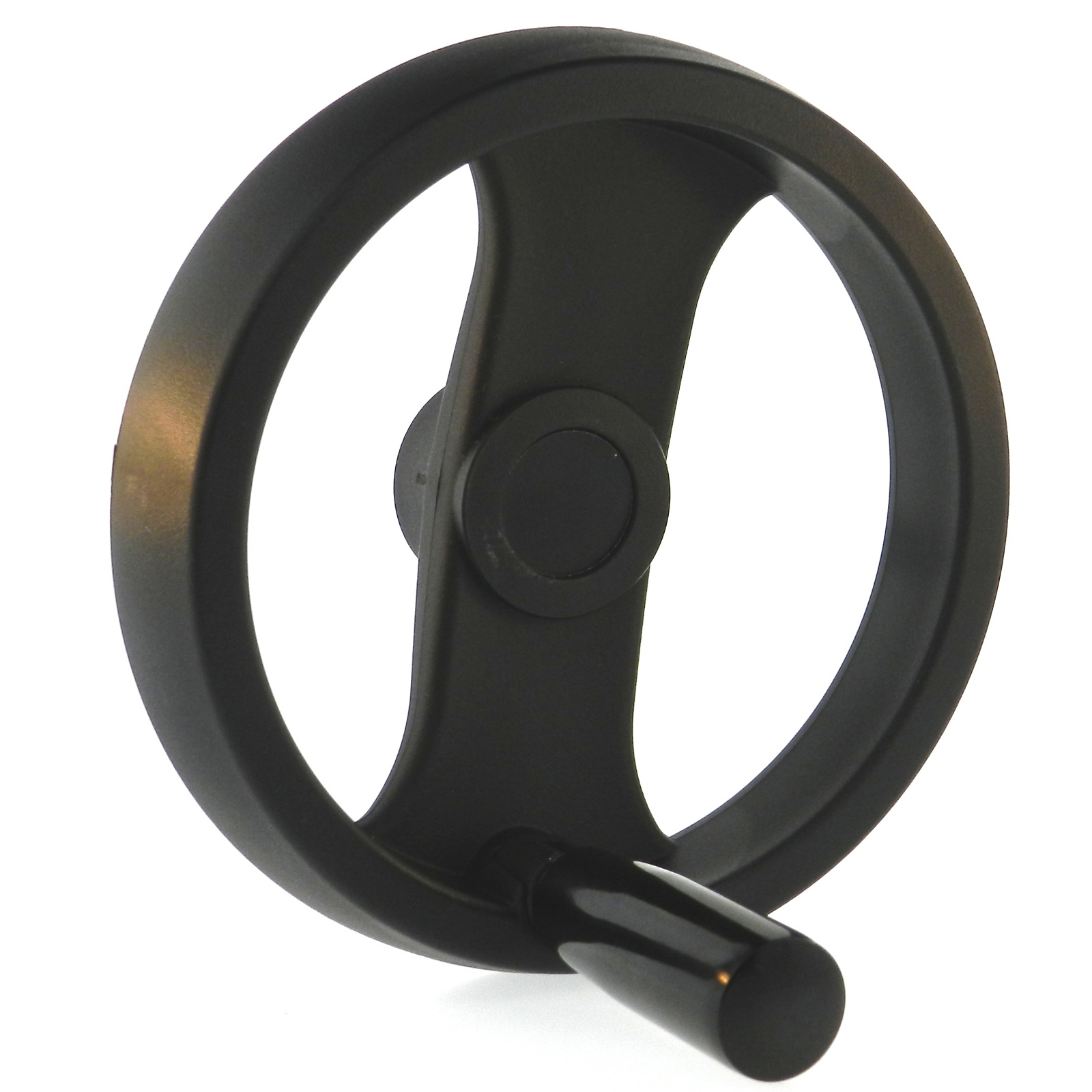

2 Spoke Handwheel with Folding Handle

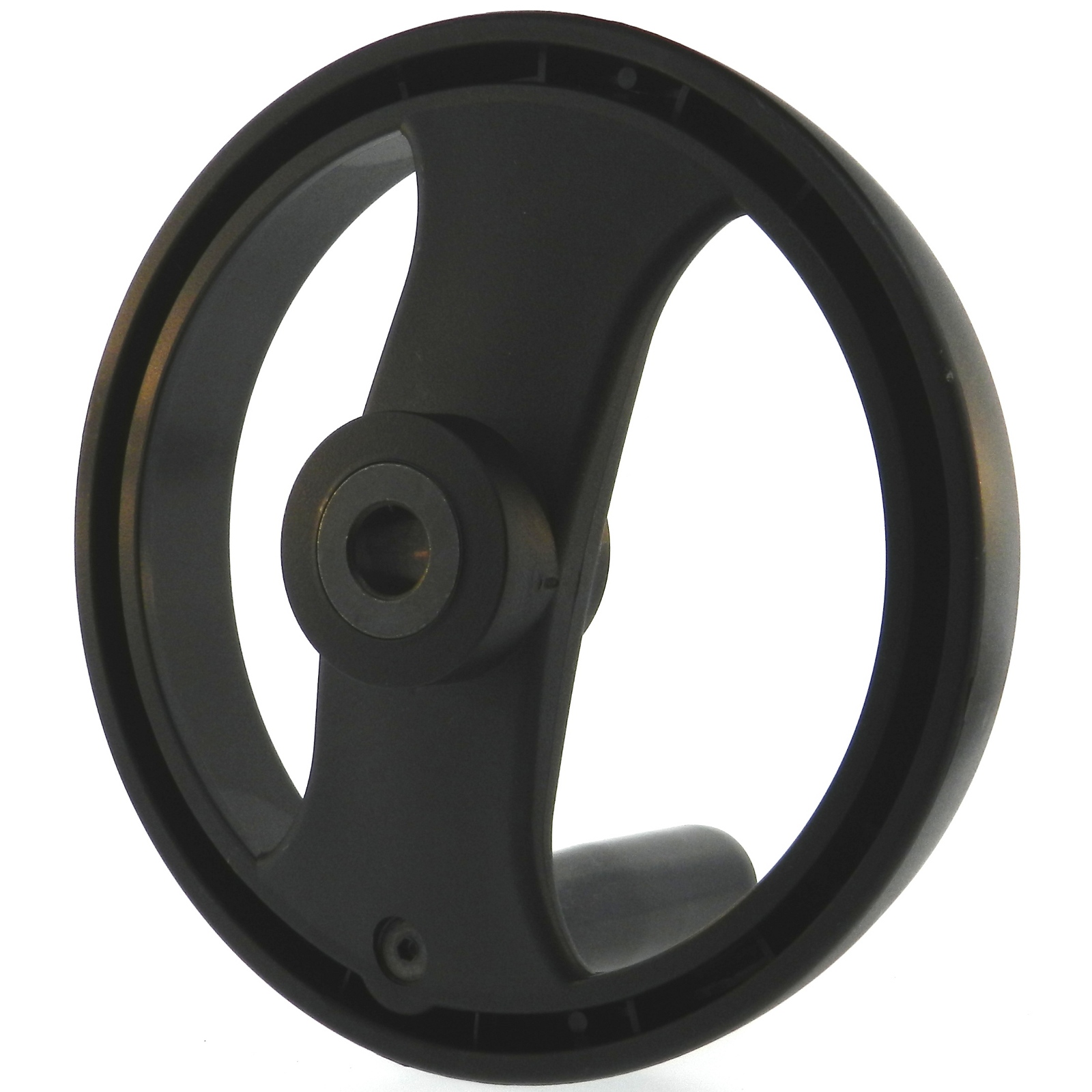

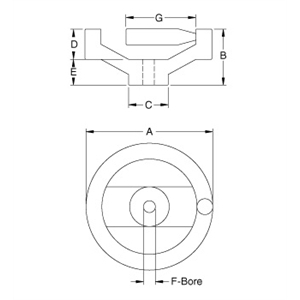

Manufactured from the highest quality polypropylene, this thermoplastic 2 spoke handwheel from JBF National features a satin black finish for a sleek look. This two spoke handwheel features a folding handle which is excellent for tight spaces and high traffic areas, where a protruding handle might pose safety concern. A high quality steel hub that protrudes beyond the plastic face, makes up the center of this handwheel and makes sure that it, and not the plastic takes the brunt of the retention forces. Please see component diagram below.

JBF National Part NumberABCDEF - BoreG
1PSH-10643.97"1.46".984".780".748"3/8"1.97"
2PSH-10656.33"2.01"1.57".984"1.14"1/2"2.56"
3PSH-10667.91"2.40"1.97"1.10"1.38"5/8"3.15"
