Offset Cast Iron Handwheel w/ or w/o Revolving Handle

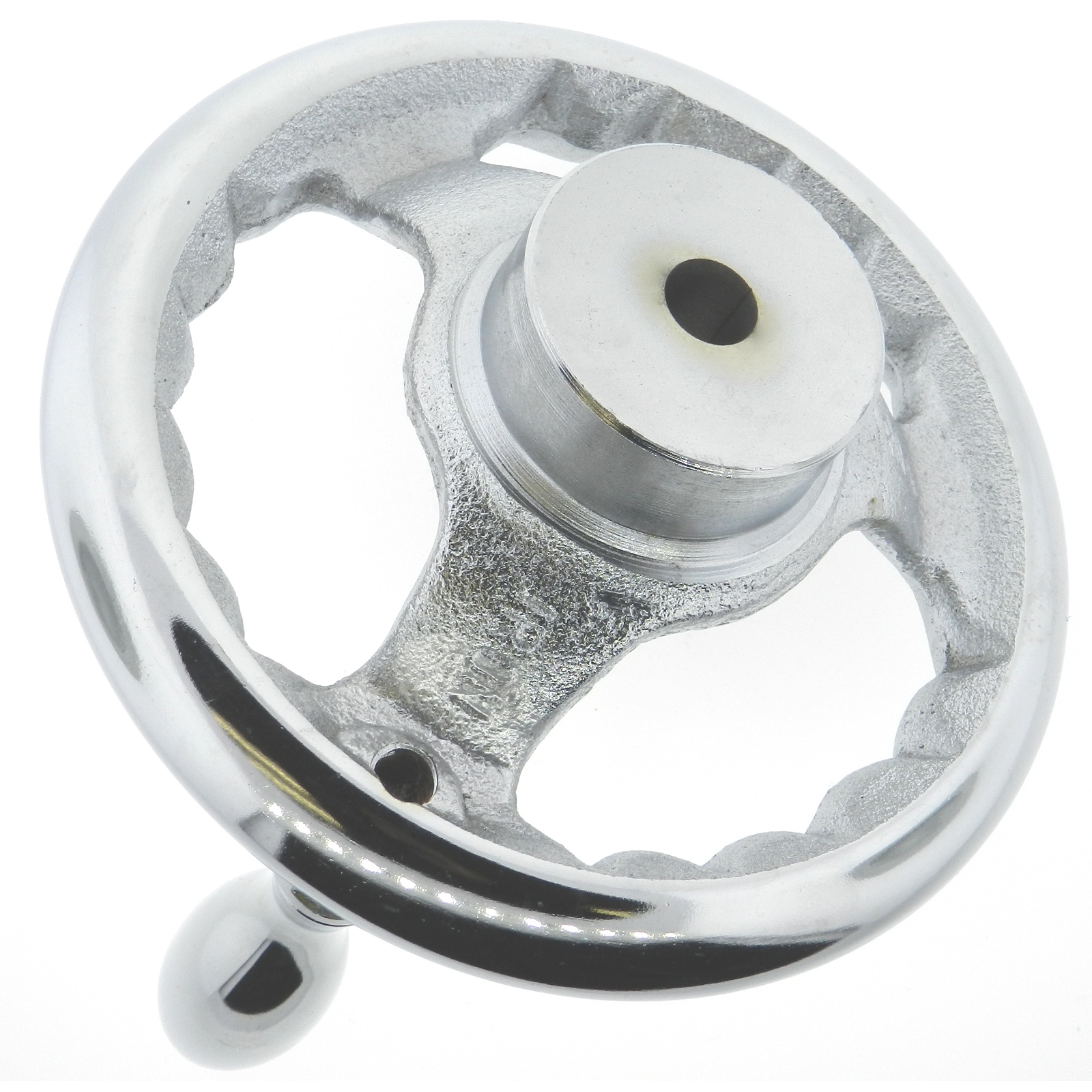

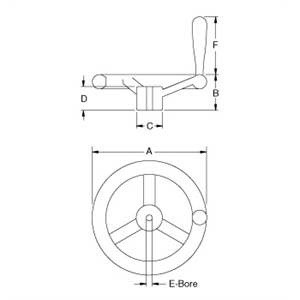

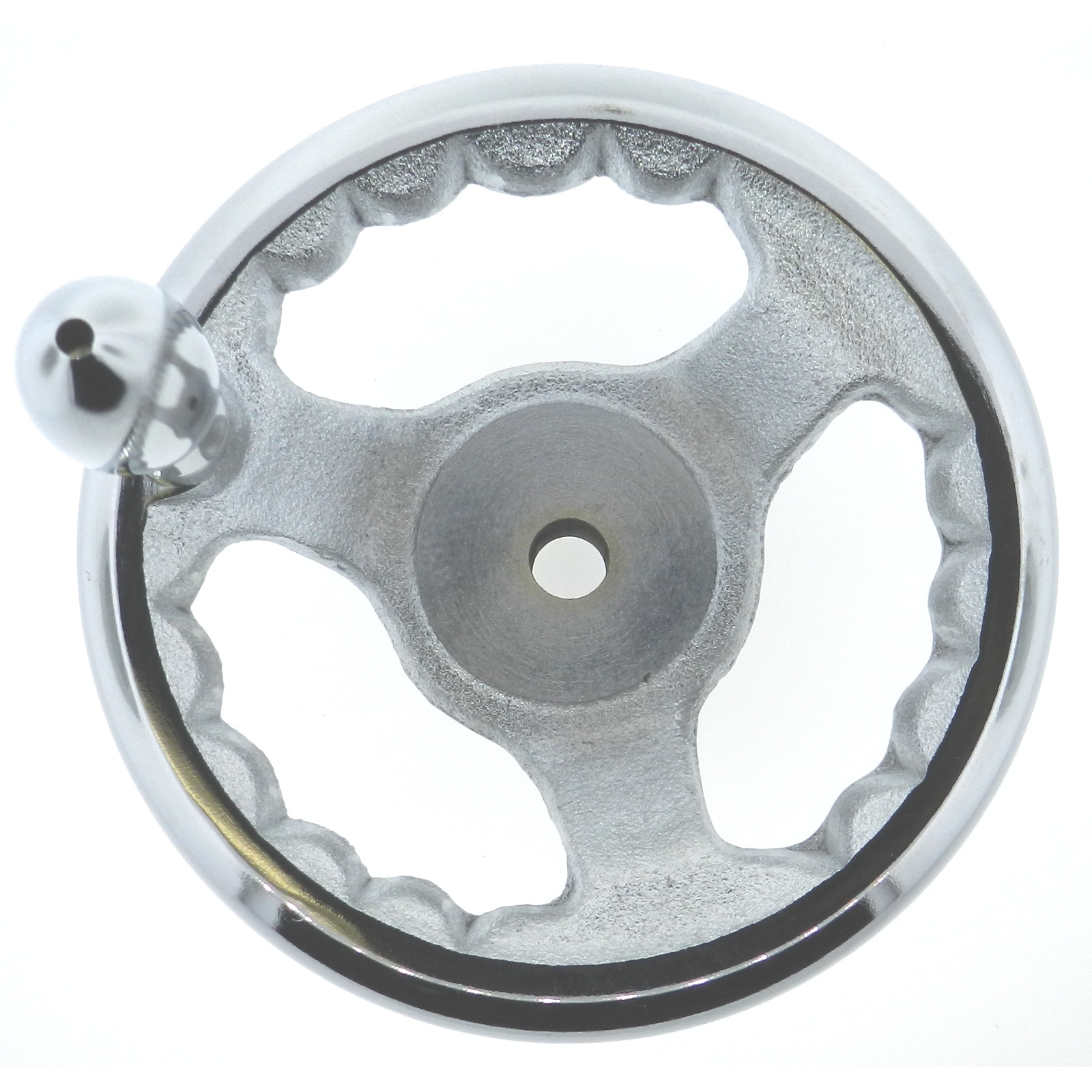

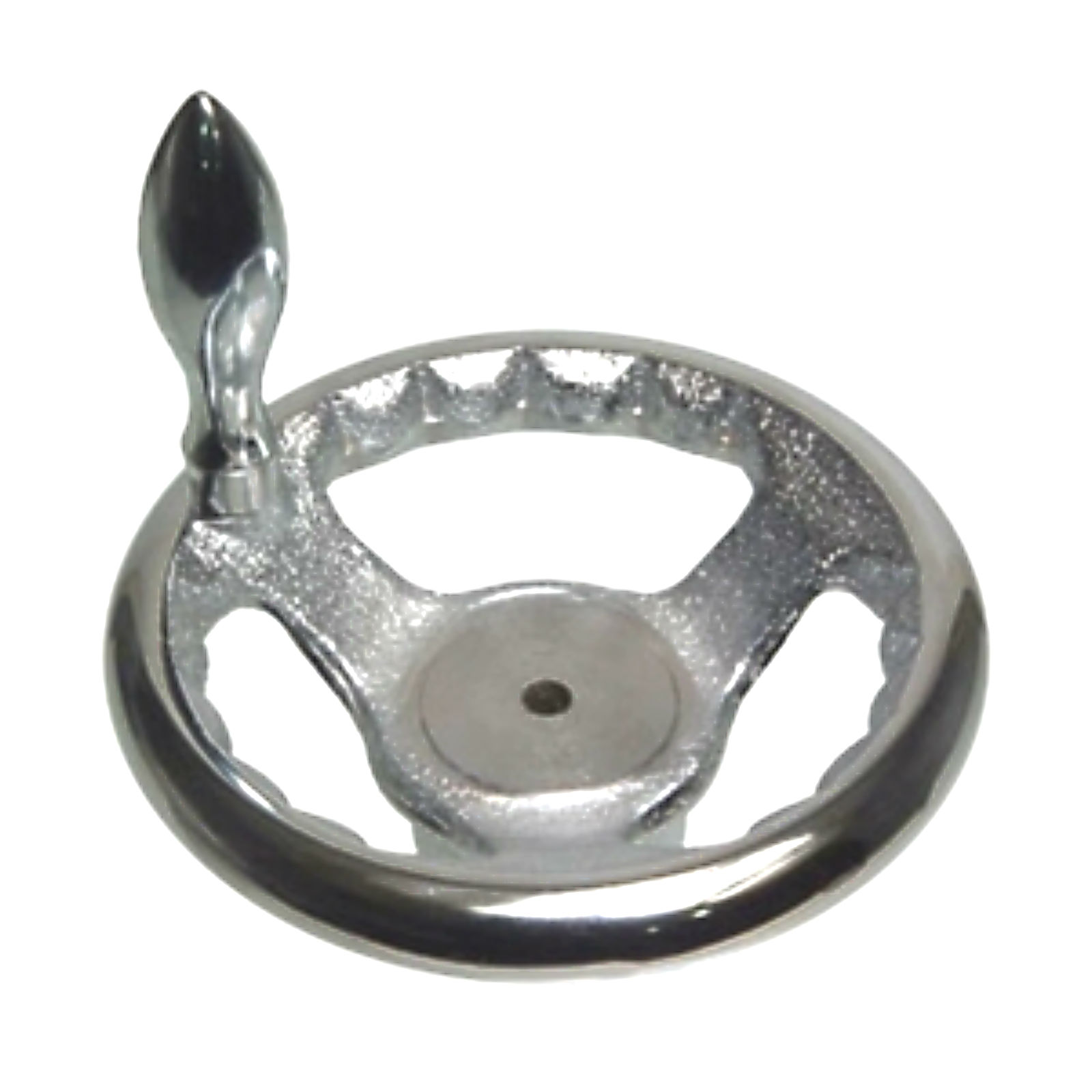

This offset (dished) handwheel from JBF National is crafted from the finest cast iron, and comes in a lustrous nickel plated finish. The polished permanently lubricated revolving handle (optional) ensures operator grip and comfort during repeat use, with the semi-crenelated inside rim ensuring maximum hand and palm grip for minute adjustments. For optimum flexibility, this handwheel features an oversized hub which allows for a variety of set screws, keyways, and bore sizes. Handless models available. Please see component diagram below.
| P/N | A | B | C | D | E | F | Handle |
|---|---|---|---|---|---|---|---|
| 1CHRW-1054 | 4 | 1.7 | 1.57 | 0.9 | 3/8" | 2.4 | YES |
| 2CHRW-1055 | 5 | 1.97 | 1.89 | 0.98 | 3/8" | 2.4 | YES |
| 3CHRW-1056 | 6 | 2.08 | 1.98 | 1.18 | 1/2" | 2.95 | YES |
| 4CHRW-1057 | 8 | 2.28 | 2.32 | 1.22 | 5/8" | 2.95 | YES |
| 5CHRW-1058 | 10 | 2.48 | 2.64 | 1.26 | 3/4" | 2.95 | YES |
| 6CHRW-1059 | 12 | 2.83 | 2.75 | 1.54 | 3/4" | 2.95 | YES |
| 7CHRW-1060 | 14 | 3.28 | 2.91 | 1.69 | 3/4" | 2.95 | YES |
| 8CHRW-1061 | 16 | 3.74 | 3.3 | 1.85 | 3/4" | 2.95 | YES |
| 9CHRW-1062 | 18 | 3.74 | 3.3 | 1.89 | 1" | 2.95 | YES |
| 10CHRW-1063 | 20 | 3.74 | 3.3 | 1.97 | 1" | 2.95 | YES |
| FCIHW-7501-4 | 4 | 1.7 | 1.57 | 0.9 | 3/8" | 2.4 | NO |
| FCIHW-7501-5 | 5 | 1.97 | 1.89 | 0.98 | 3/8" | 2.4 | NO |
| FCIHW-7501-6 | 6 | 2.08 | 1.98 | 1.18 | 1/2" | 2.95 | NO |
| FCIHW-7501-8 | 8 | 2.28 | 2.32 | 1.22 | 5/8" | 2.95 | NO |
| FCIHW-7501-10 | 10 | 2.48 | 2.64 | 1.26 | 3/4" | 2.95 | NO |
| FCIHW-7501-12 | 12 | 2.83 | 2.75 | 1.54 | 3/4" | 2.95 | NO |
