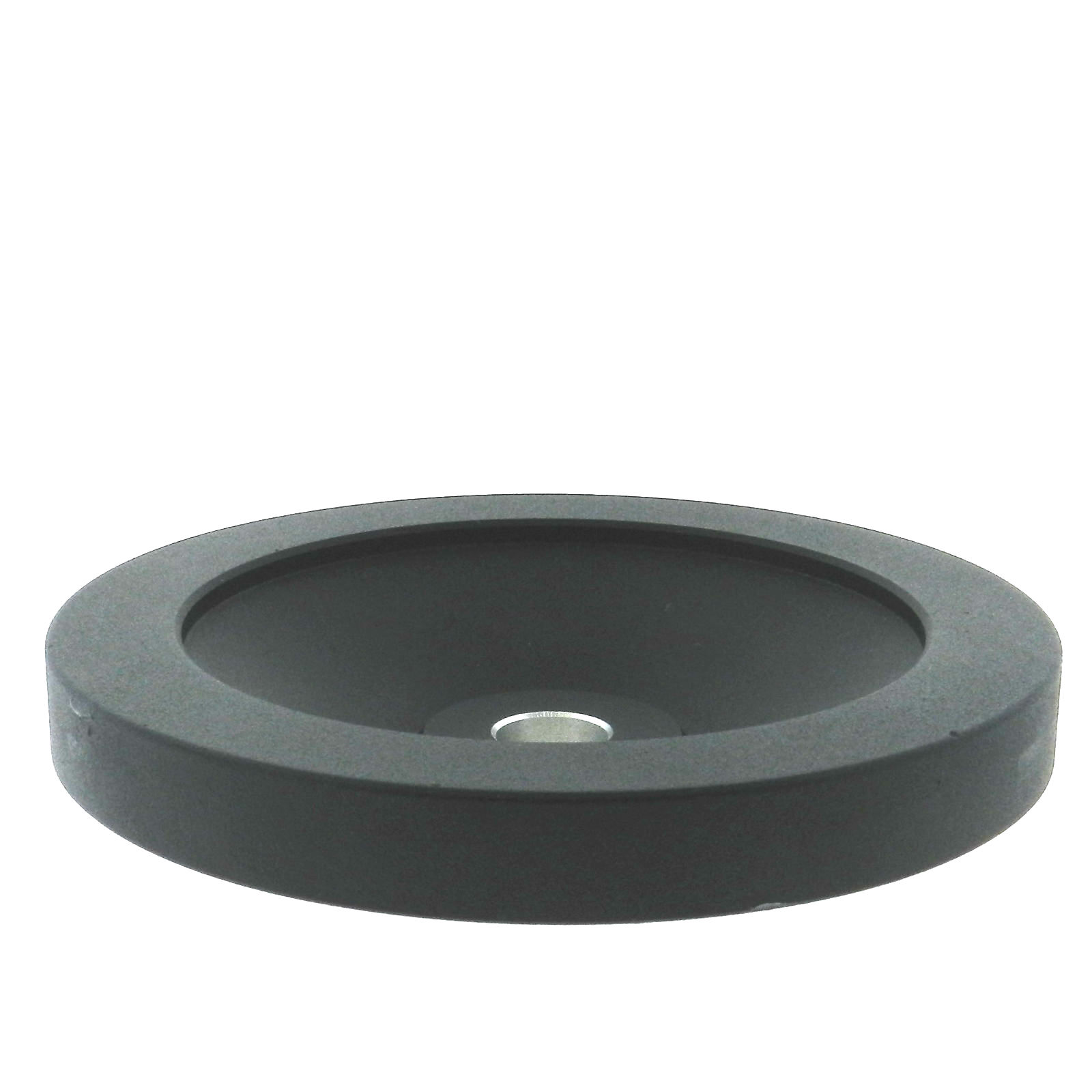

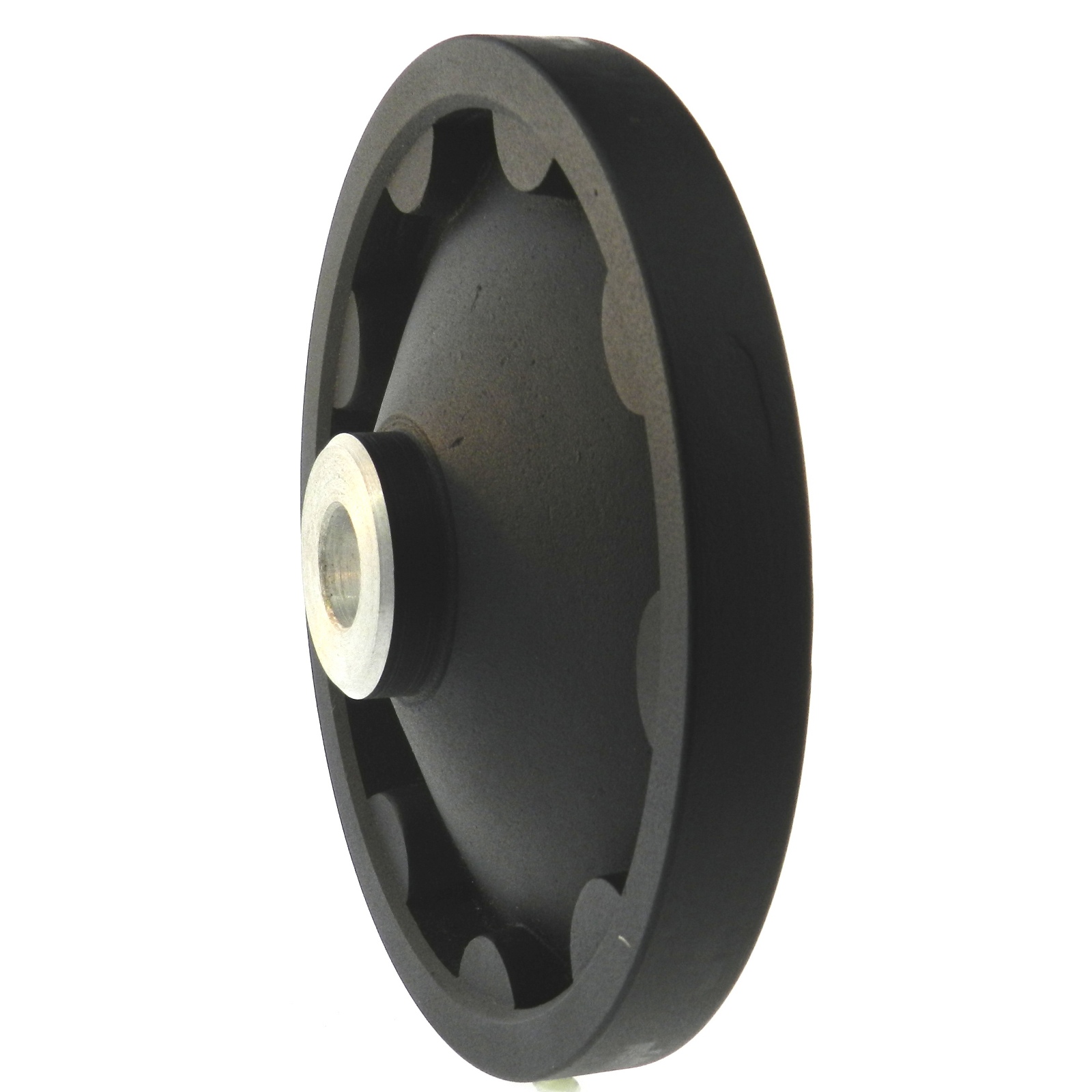

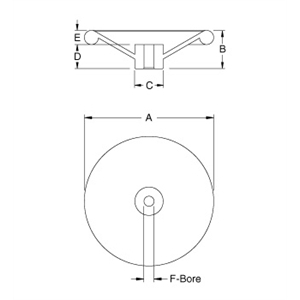

Fashioned from the highest quality aluminum, this handwheel from JBF National comes finished in a fine grain black powder coating. The crenelated rim on the reverse side allows for solid fingertip placement, and engagement to ensure that precise adjustments are quick and simple. Various diameters and bore sizes available. Please see component diagram below.
JBF National Part Number | A | B | C | D | E | F |
---|---|---|---|---|---|---|
1ADHDW-1046 | 3.15 | 1.14 | 1.02 | 0.63 | 0.51 | 3/8" |
1ADHDW-1047 | 3.15 | 1.14 | 1.02 | 0.63 | 0.51 | 1/2" |
2ADHDW-1048 | 3.94 | 1.18 | 1.10 | 0.67 | 0.55 | 3/8" |
2ADHDW-1049 | 3.94 | 1.18 | 1.10 | 0.67 | 0.55 | 1/2" |
3ADHDW-1050 | 7.87 | 1.77 | 1.65 | 0.94 | 0.81 | 5/8" |
3ADHDW-1051 | 7.87 | 1.77 | 1.65 | 0.94 | 0.81 | 3/4" |
4ADHDW-1052 | 9.84 | 2.01 | 1.89 | 1.10 | 0.91 | 3/4" |
4ADHDW-1053 | 9.84 | 2.01 | 1.89 | 1.10 | 0.91 | 7/8" |
