Aluminum Dished Handwheel with Revolving Handle

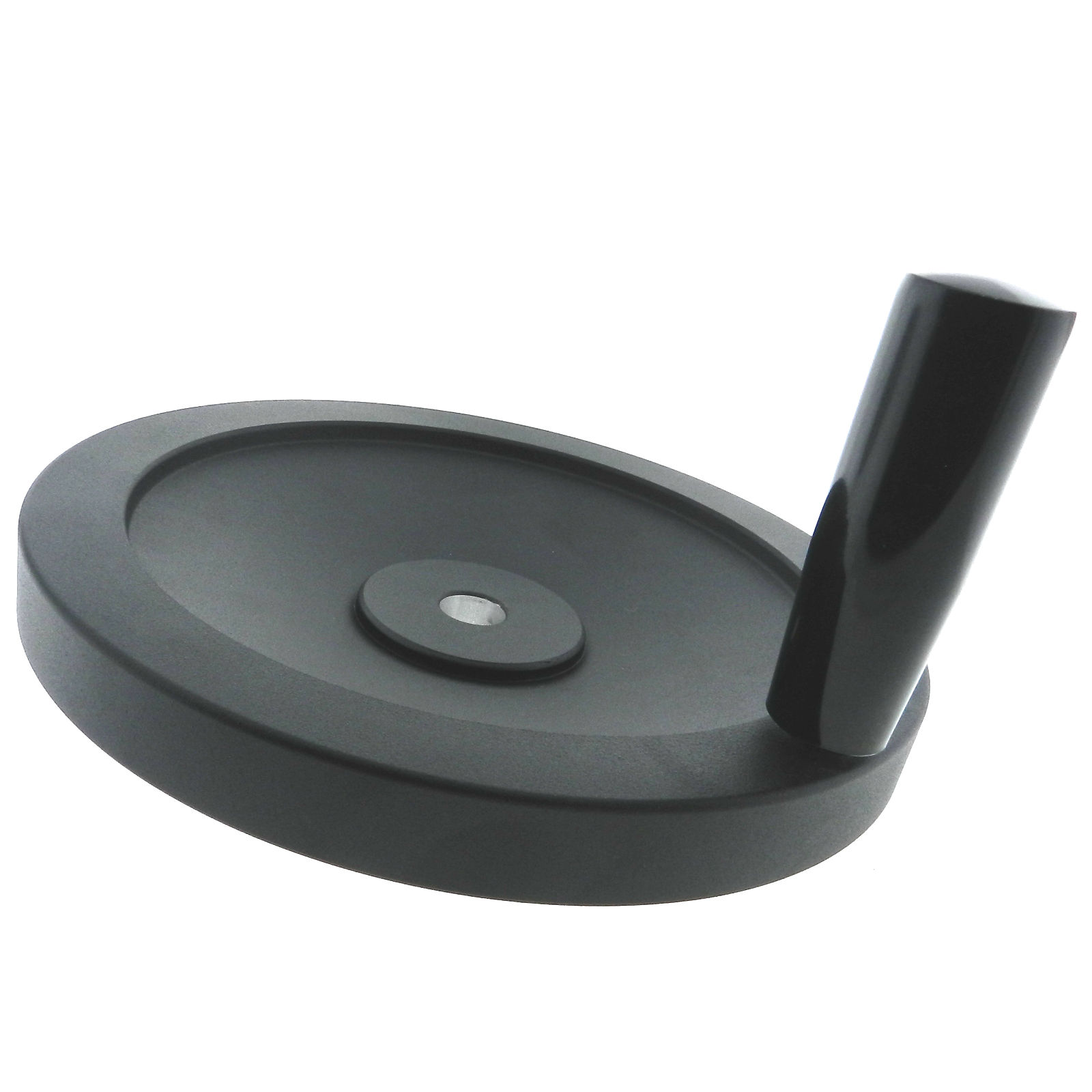

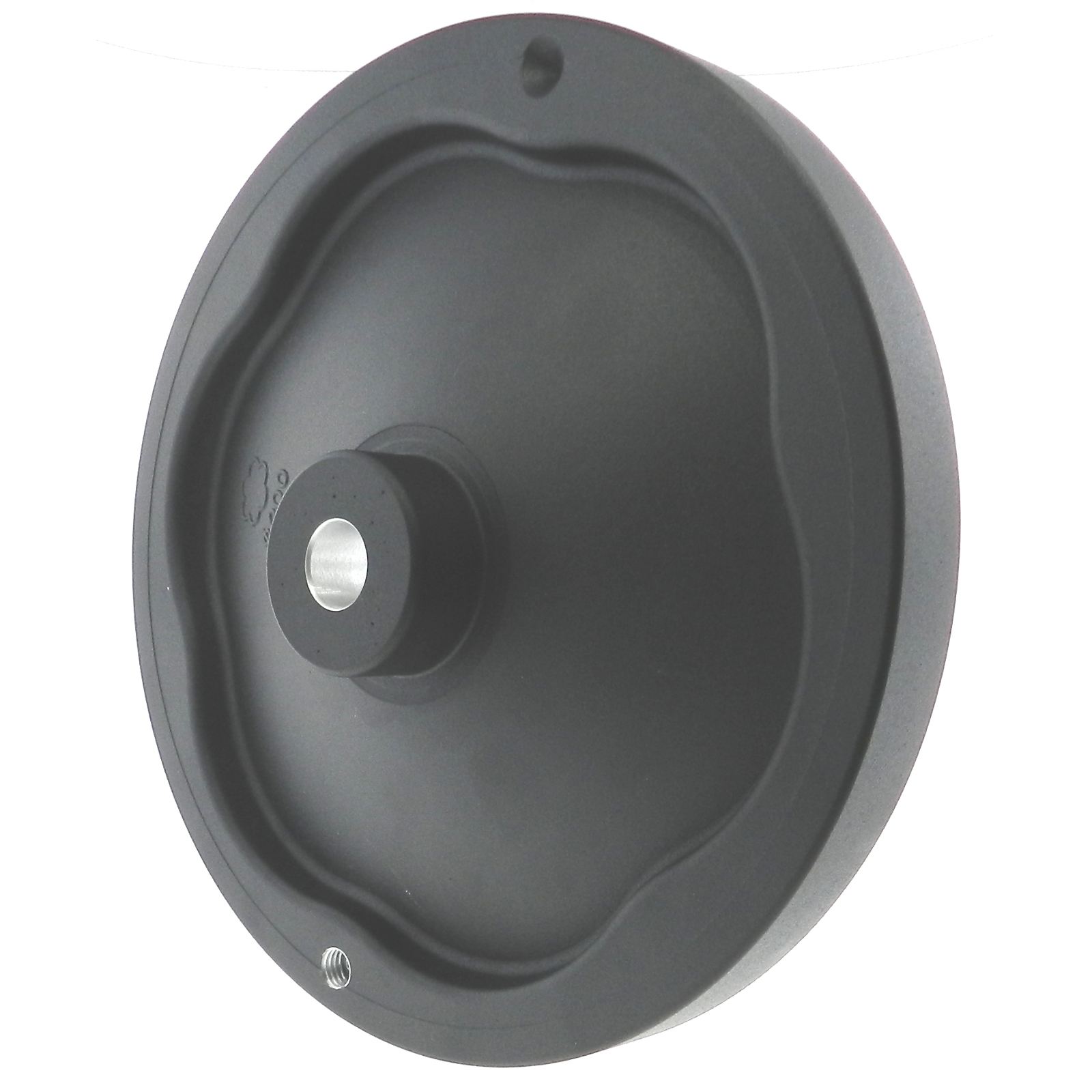

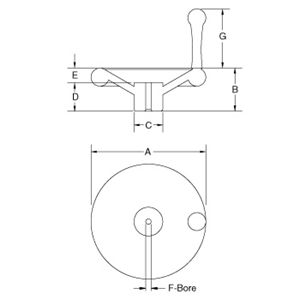

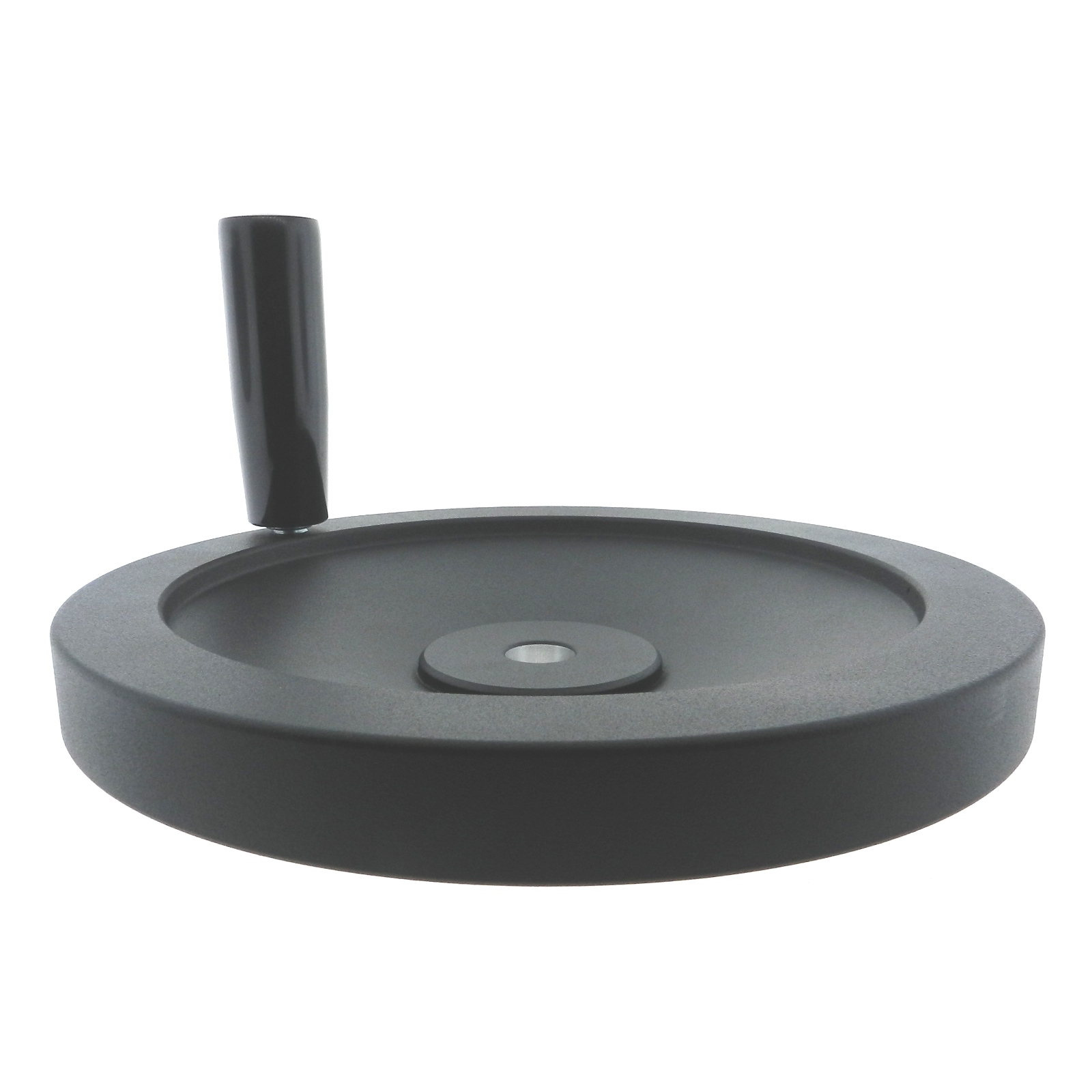

Fashioned from the highest quality aluminum, this dished handwheel from JBF National comes finished in a fine grain black powder coating. This handwheel features a smooth phenolic handle to make quick and precise adjustments a breeze. Various diameters and bore sizes available. Please see component diagram below.
| JBF National Part Number | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 1ADHDW-1038 | 3.15 | 1.14 | 1.02 | 0.63 | 0.51 | 3/8" | 1.57 |
| 1ADHDW-1039 | 3.15 | 1.14 | 1.02 | 0.63 | 0.51 | 1/2" | 1.57 |
| 2ADHDW-1040 | 3.94 | 1.18 | 1.10 | 0.67 | 0.55 | 3/8" | 1.97 |
| 2ADHDW-1041 | 3.94 | 1.18 | 1.10 | 0.67 | 0.55 | 1/2" | 1.97 |
| 3ADHDW-1042 | 7.87 | 2.15 | 1.65 | 1.1 | 0.81 | 5/8" | 3.15 |
| 3ADHDW-1043 | 7.87 | 2.15 | 1.65 | 1.1 | 0.81 | 3/4" | 3.15 |
| 4ADHDW-1044 | 9.84 | 2.75 | 1.89 | 1.5 | 0.91 | 3/4" | 3.15 |
| 4ADHDW-1045 | 9.84 | 2.75 | 1.89 | 1.5 | 0.91 | 7/8" | 3.15 |
