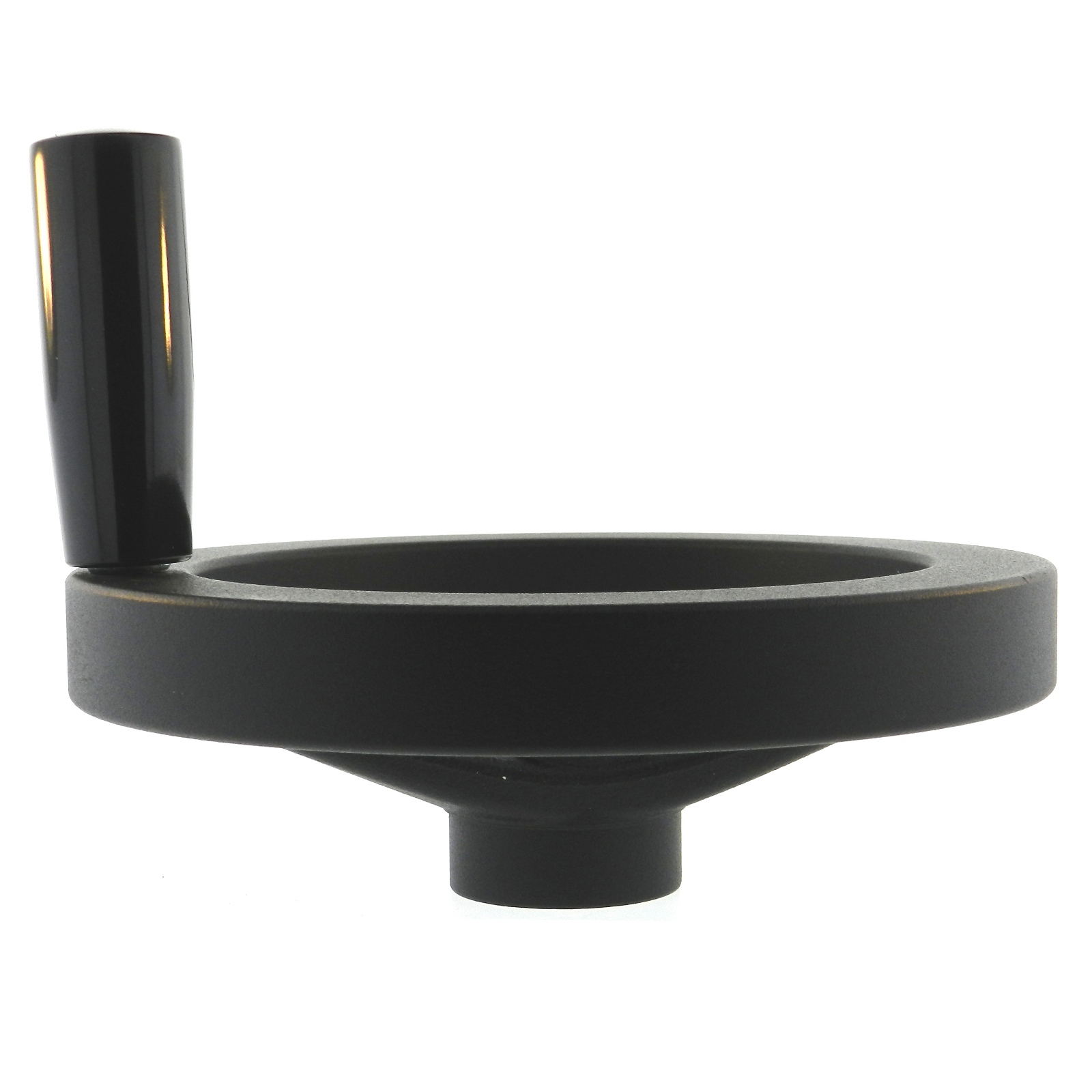

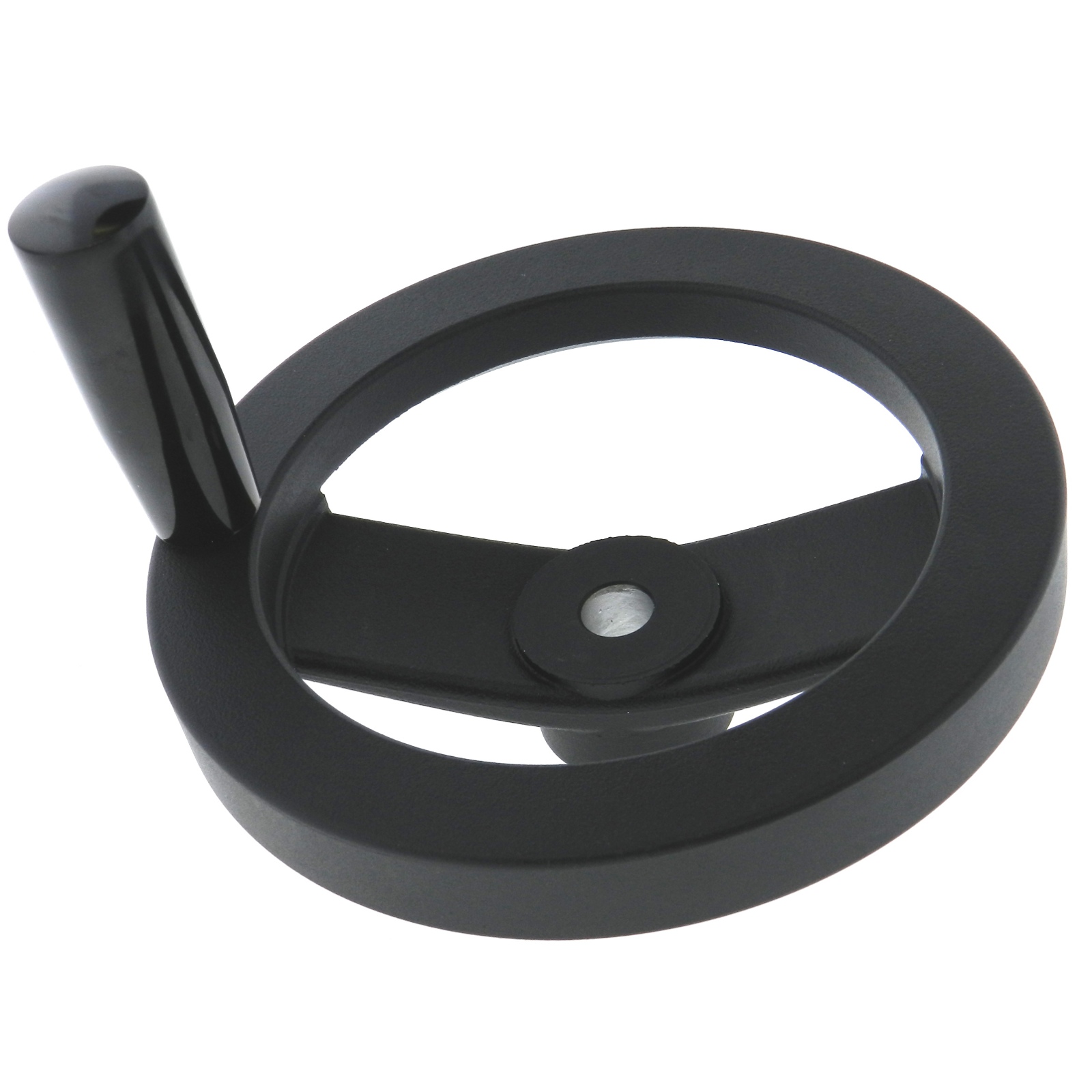

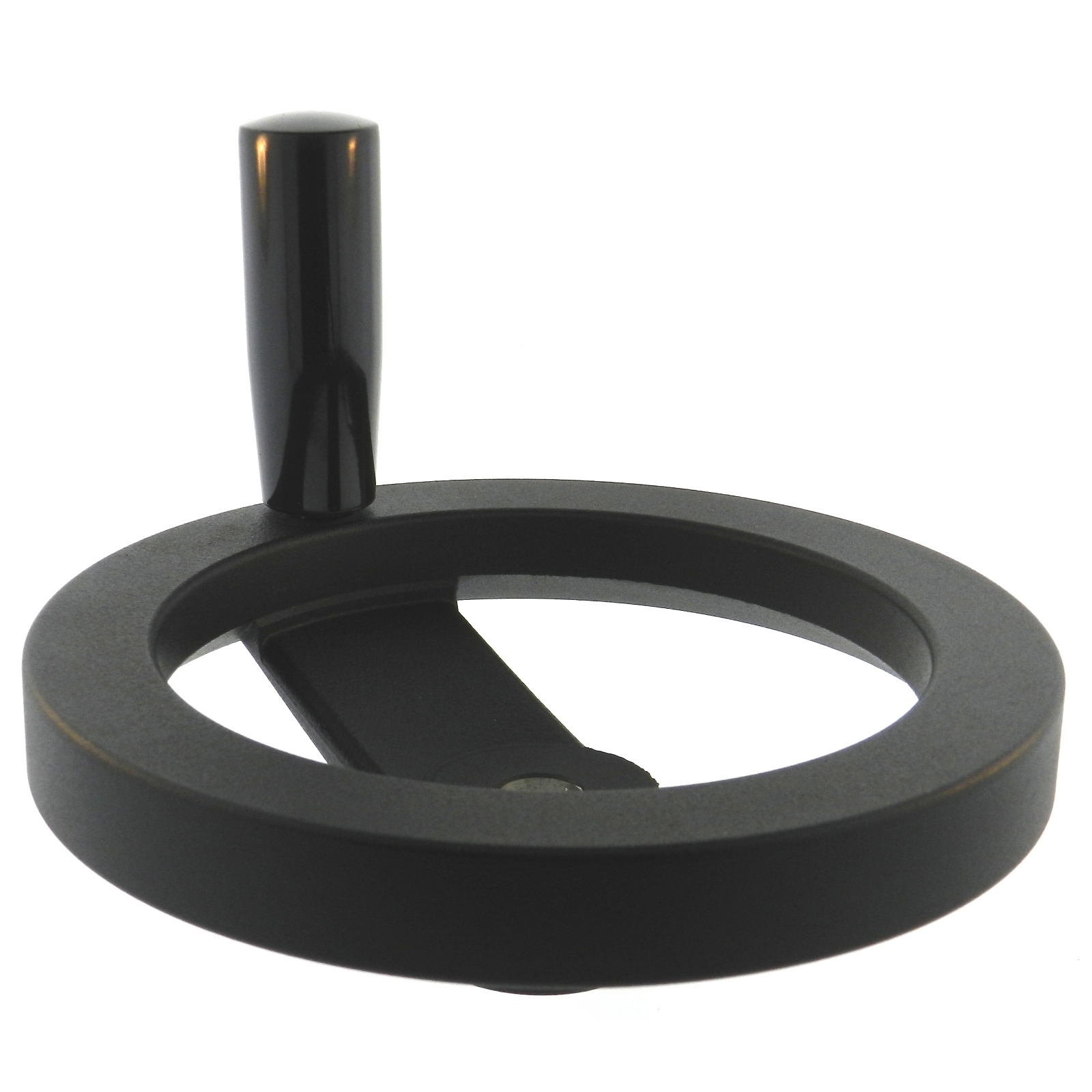

Aluminum 2 Spoke Handwheel with Revolving Handle

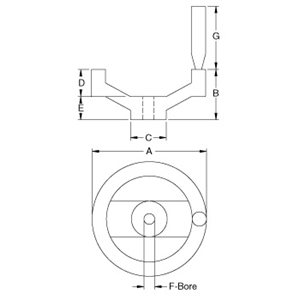

Fashioned from the highest quality aluminum, this 2 spoke handwheel from JBF National comes finished in a fine grain black powder coating. It features a smooth phenolic handle to make quick and precise adjustments a breeze. Various diameters and bore sizes available. Please see component diagram below.
| JBF National Part Number | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 1AHDW-1018 | 4 | 1.77 | 1.25 | 0.75 | 0.812 | 3/8" | 1.97 |
| 1AHDW-1019 | 4 | 1.77 | 1.25 | 0.75 | 0.812 | 1/2" | 1.97 |
| 2AHDW-1020 | 5 | 1.93 | 1.31 | 0.75 | 0.875 | 3/8" | 2.56 |
| 2AHDW-1021 | 5 | 1.93 | 1.31 | 0.75 | 0.875 | 1/2" | 2.56 |
| 3AHDW-1022 | 6 | 2.05 | 1.44 | 0.78 | 1 | 1/2" | 2.56 |
| 3AHDW-1023 | 6 | 2.05 | 1.44 | 0.78 | 1 | 5/8" | 2.56 |
| 5AHDW-1024 | 8 | 2.74 | 1.94 | 0.937 | 1.37 | 1/2" | 3.15 |
| 5AHDW-1025 | 8 | 2.74 | 1.94 | 0.937 | 1.37 | 5/8" | 3.15 |
| 7AHDW-1026 | 10 | 2.8 | 1.94 | 0.937 | 1.37 | 5/8" | 3.15 |
| 7AHDW-1027 | 10 | 2.8 | 1.94 | 0.937 | 1.37 | 3/4" | 3.15 |
